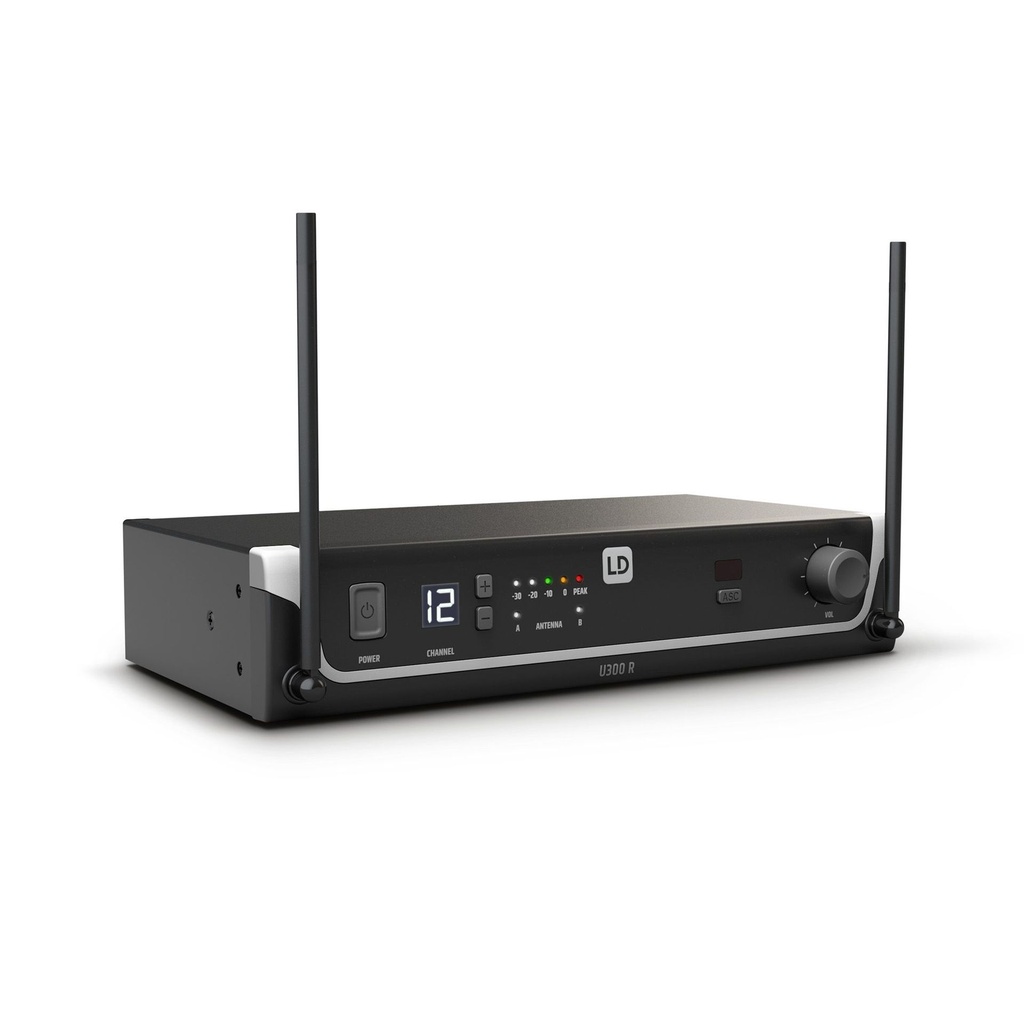

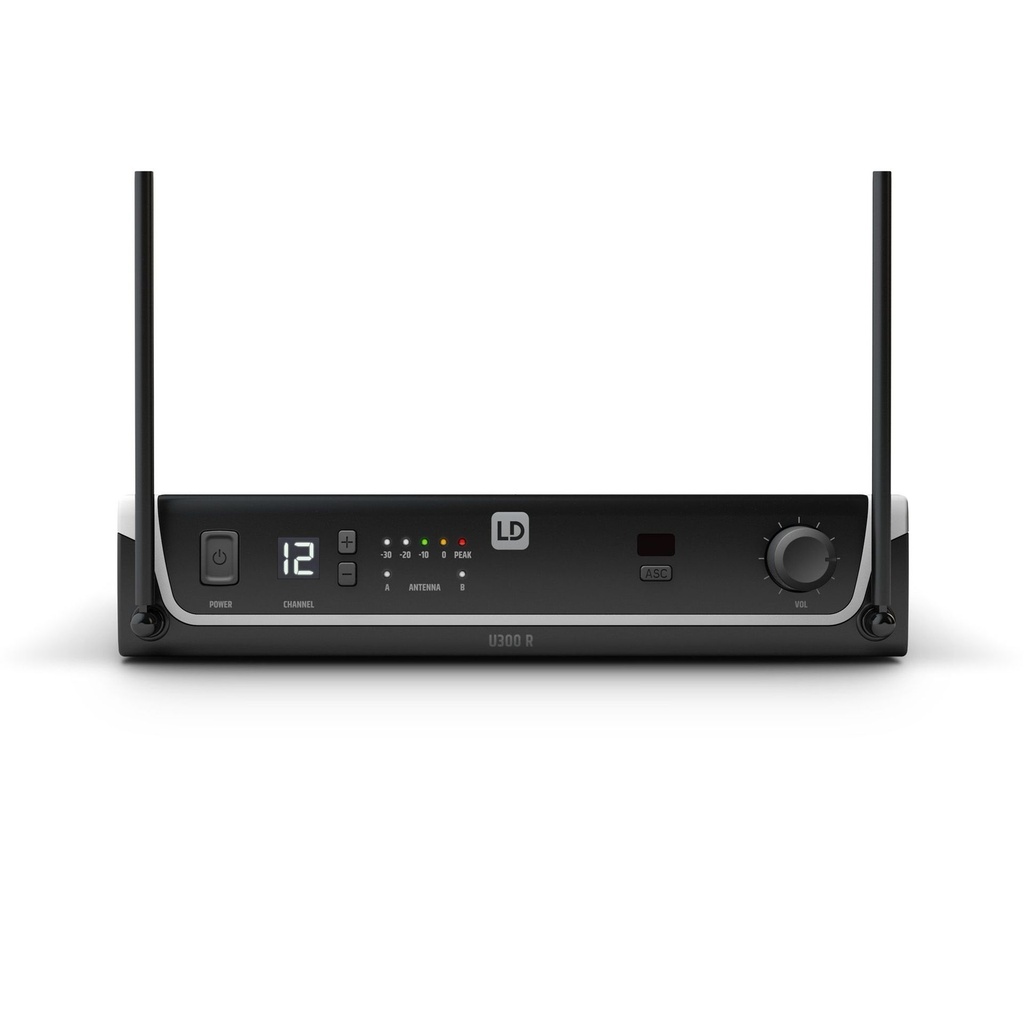

Operating in the 584 - 608 Mhz band, this U300 Series diversity UHF receiver features FM technology, 12 channels and a 25Hz - 16 kHz frequency response. It provides convenient one-touch IR syncing with the series' microphone or bodypack transmitters for quick and trouble-free setup while a pilot tone squelch circuit prevents noise and interference. The U305 receiver comes in a stylish metal housing sporting a bright LCD channel display, up and down channel selector buttons plus LED audio level and antenna indicators. The rear panel provides balanced XLR and unbalanced 1/4" outputs. For use with guitar and bass amplifiers, the unbalanced output is switchable to instrument level. The receiver package includes a power adapter and balanced XLR audio cable.
General
| Material | Steel sheet |
|---|---|
| Coating | Powder coated |
| Wireless frequencies | 584 - 608 MHz |
| Frequency response (-6 dB, rel. Avg) | 25 Hz |
| Colour | Black |
| Accent colour | Silver |
Radio transmission
| Sensitivity | 10 dBµV |
|---|---|
| Channel groups number | 1 |
| Channels | 12 |
| Antennas | 2 (fixed) |

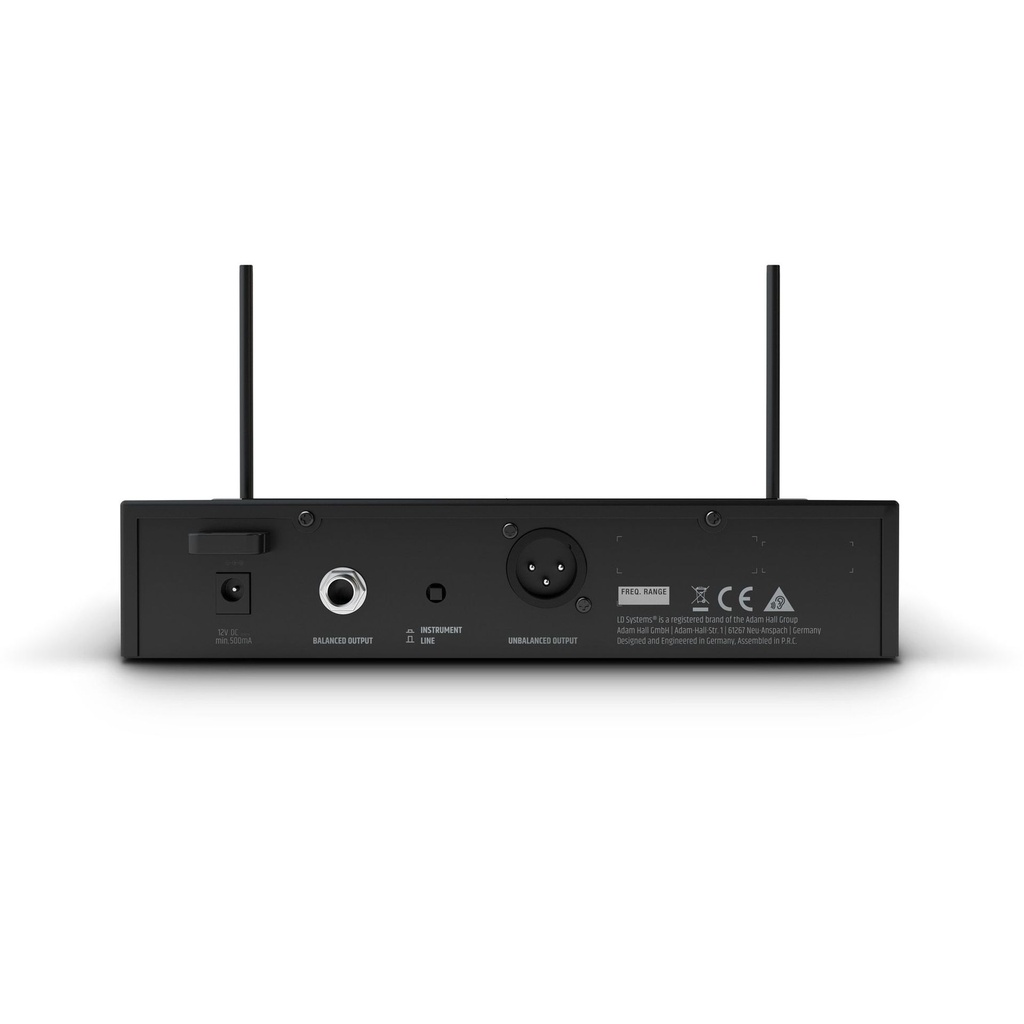

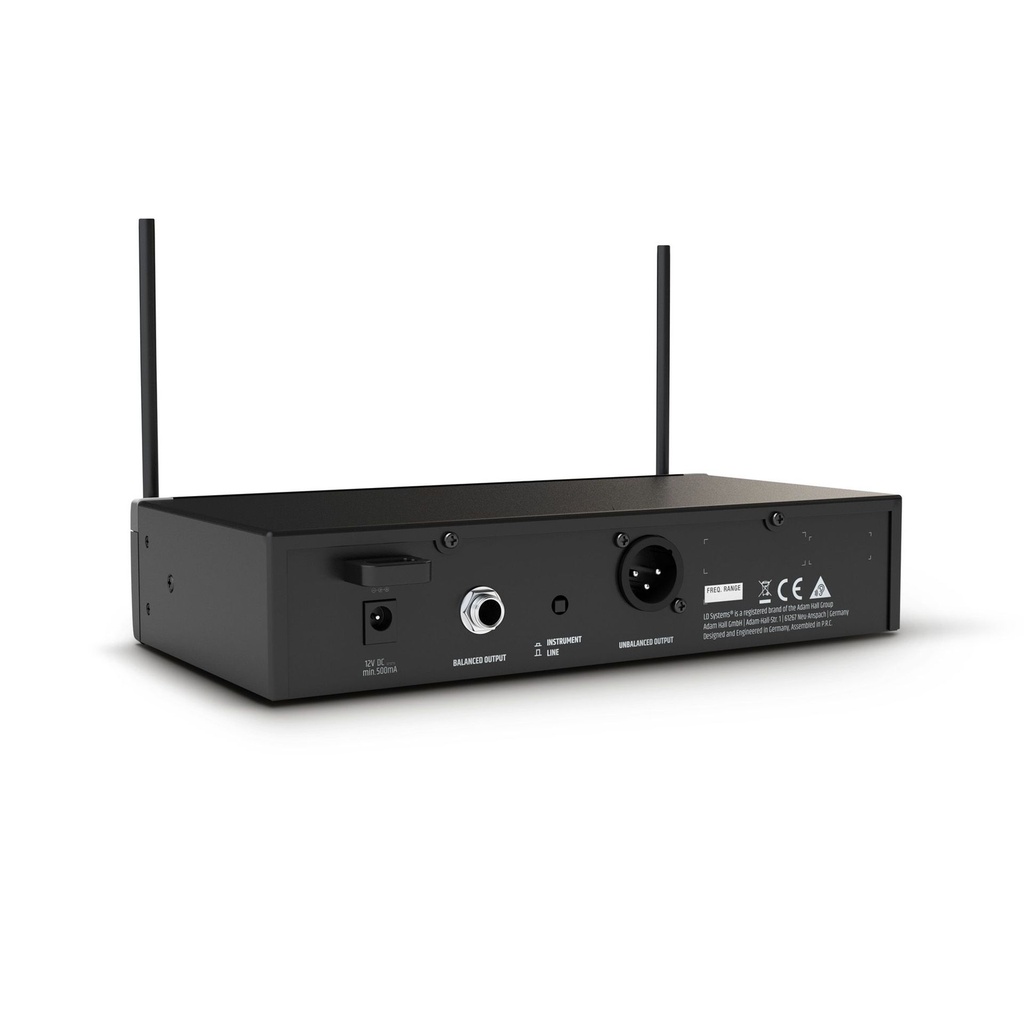

Outputs
| Output signal type | Balanced, Unbalanced |
|---|---|
| Number of line outputs | 2 |
| Line outputs connector type | XLR 3-pole male, 6.3 mm Jack TRS female |
Signal processing
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted) | 0.3 % |
|---|
Mains operation
| Operation voltage | 12 V DC - 18 V DC (external power supply) |
|---|
Dimensions & weight
| Width | 211 mm |
|---|---|
| Height | 43 mm |
| Depth | 120 mm |
| Rack width | 9.5" |
| Weight | 700 g |
