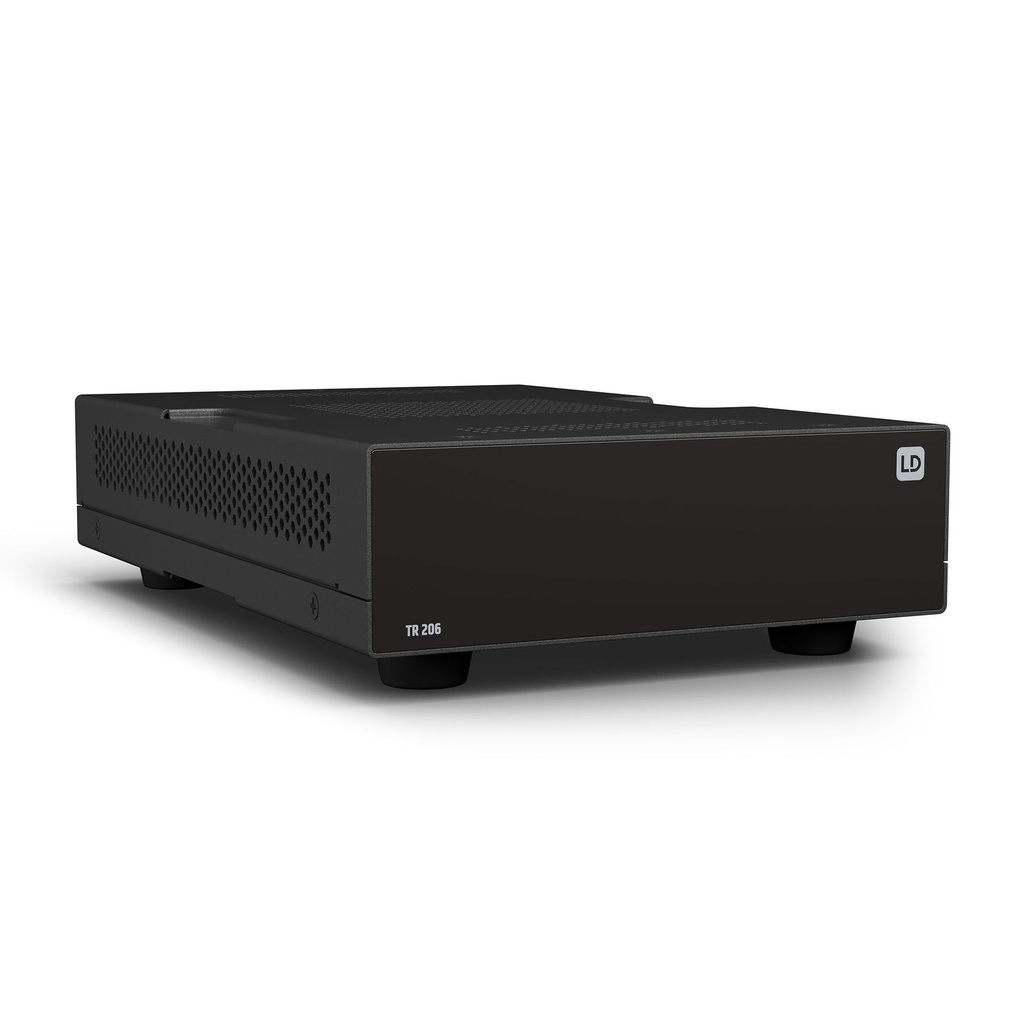

Part of the TICA® series, the TR206 is a two-channel 60W loudspeaker transformer designed to take a low impedance amplifier signal and convert it to a constant voltage loudspeaker line. This allows a conventional low impedance amplifier to be used to drive multiple loudspeakers on each of its outputs, when used with loudspeakers that have a constant voltage connection.
Measuring 142 x 44 x 226 mm, its convenient form factor and included mounting plates allow it to be installed discreetly almost anywhere.
Alternatively, it fits into 1/3 19-inch rack. Use the optional rack tray to slot several TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.
- 2 loudspeaker circuits
- 60W power handling per channel
- Inputs from 8, 4 or 2 Ohms amplifier signals
- Outputs 100V, 70V or 25V line output to loudspeaker circuits
- All-in-one design combining the transformer and protective chassis
- Compact and easy to mount and connect
General
| Product type | Line Transformer for constant voltage loudspeaker lines |
|---|---|
| Channels | 2 |
Input area

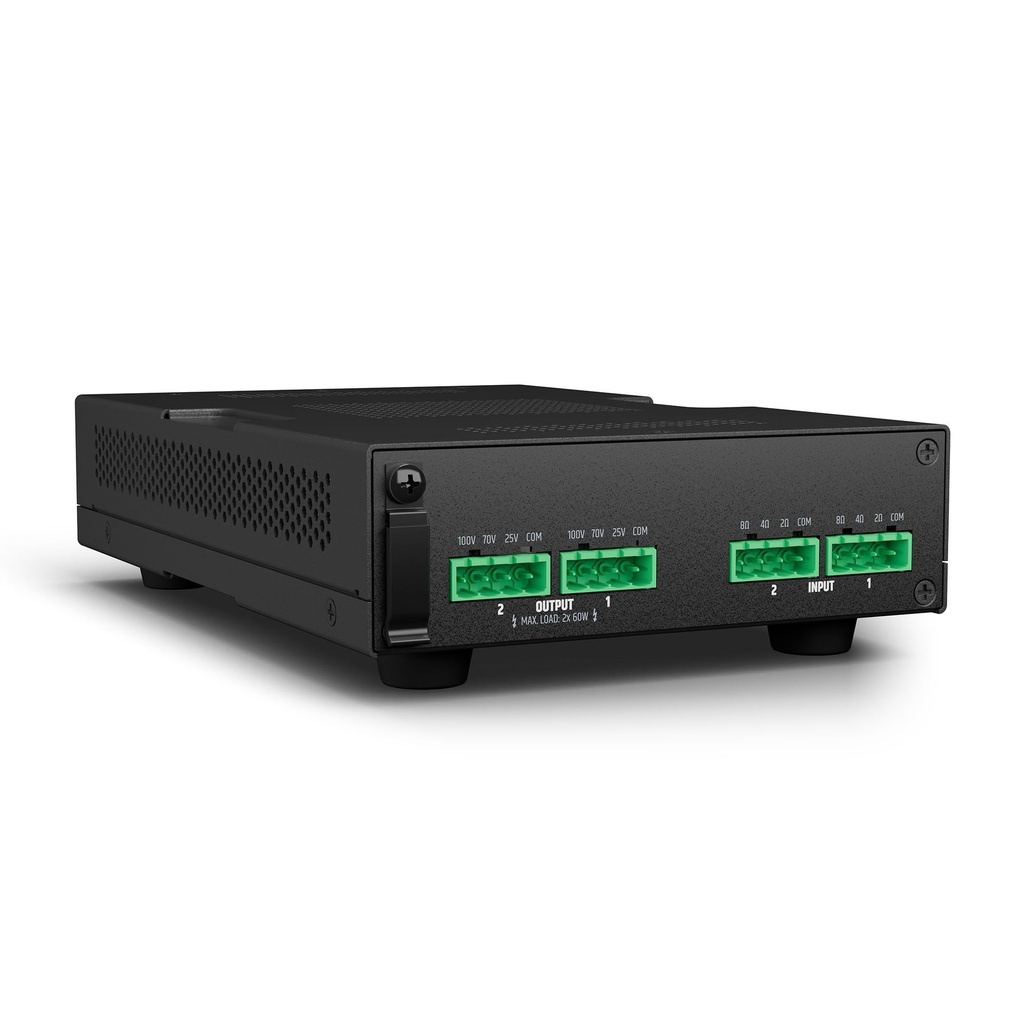

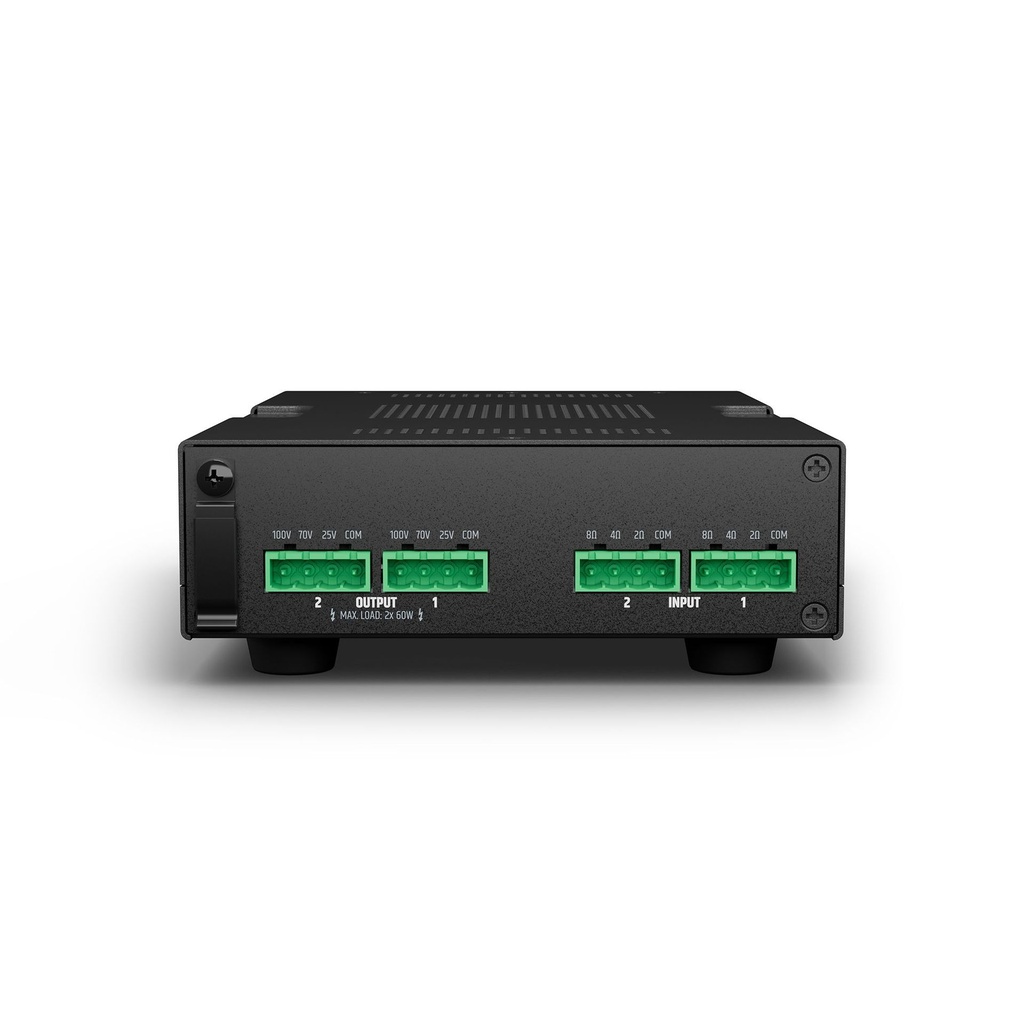

| Connection type | 4-pole Terminal Block. Pitch 5.08mm |
|---|---|
| Power Handling per channel | 60 W |
| Input connectors | 2 / 4 / 8 Ohm |
| THD | < 0,02 % |
| Frequency response (-1 dB) | 50 Hz - 20000 Hz |
Output area
| Connector | 4-pole Terminal Block. Pitch 5.08mm |
|---|---|
| Output connectors | 25 / 70 / 100V |
General data
| Housing material | Steel chassis |
|---|---|

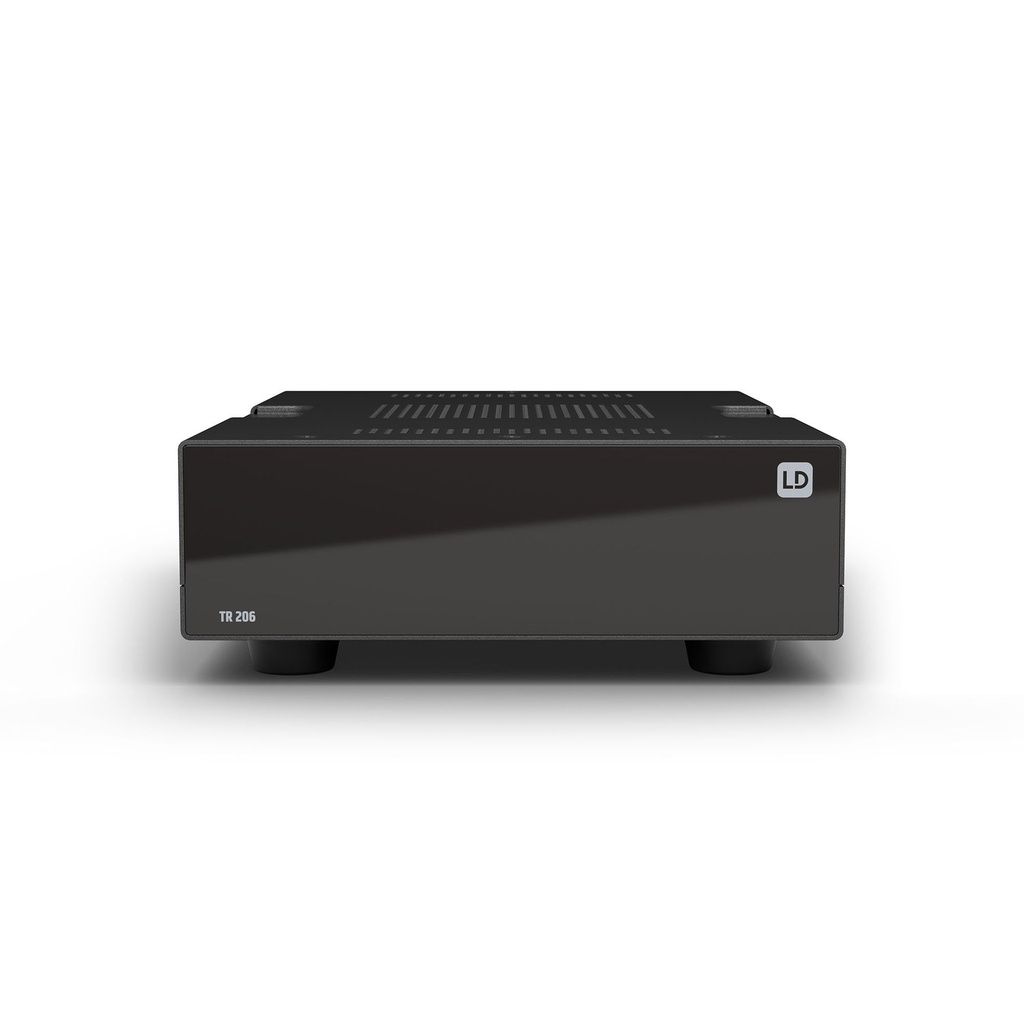

| Material | Plastic Front panel |
| Operating temperature ( non-condensing ) | 0°C - 40°C; < 85% humidity, non condensing |
| Transformer type | Toroidal |
| Dimensions (W x H x D) ( height with rubber feet ) | 142 mm x 53 mm x 226 |
| Accessories (included) | Mounting plates for surface mount applications, Terminal blocks for electrical connections. |
| Optional accessories | Rack tray (LDTICARK) |
