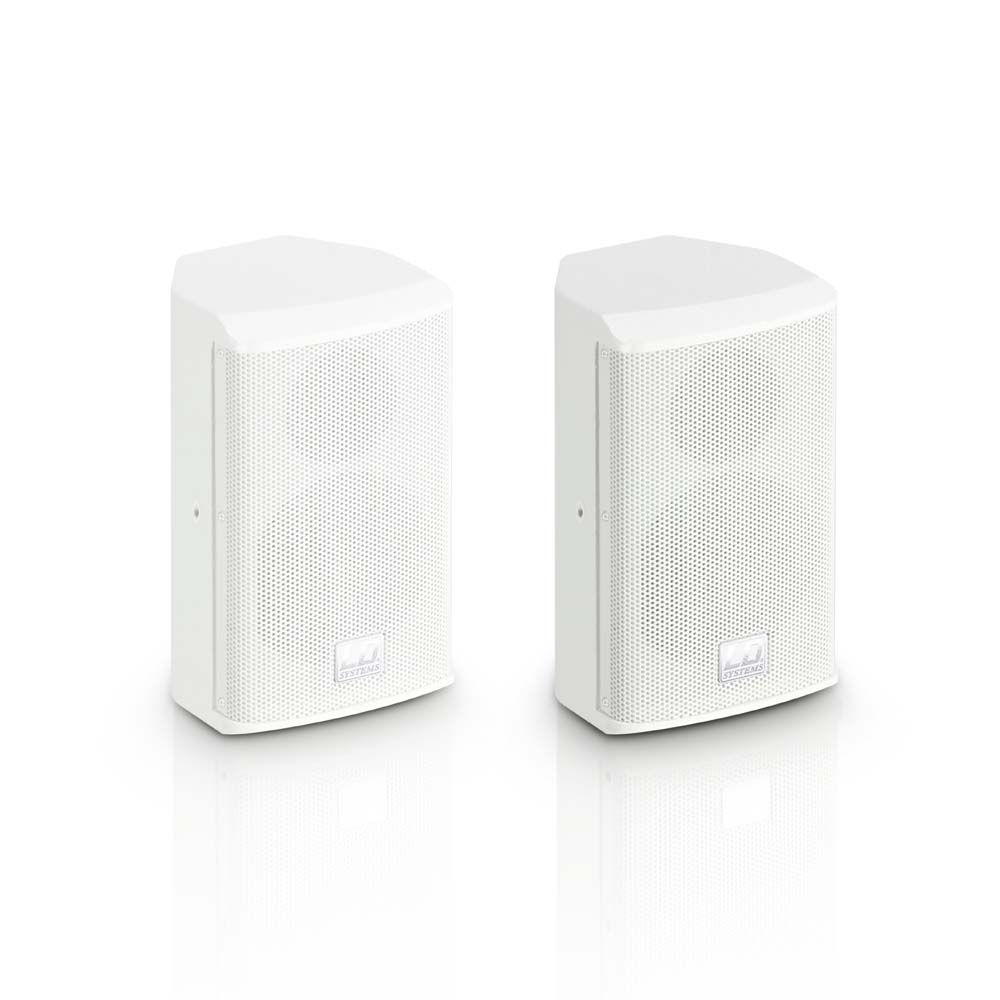

The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.

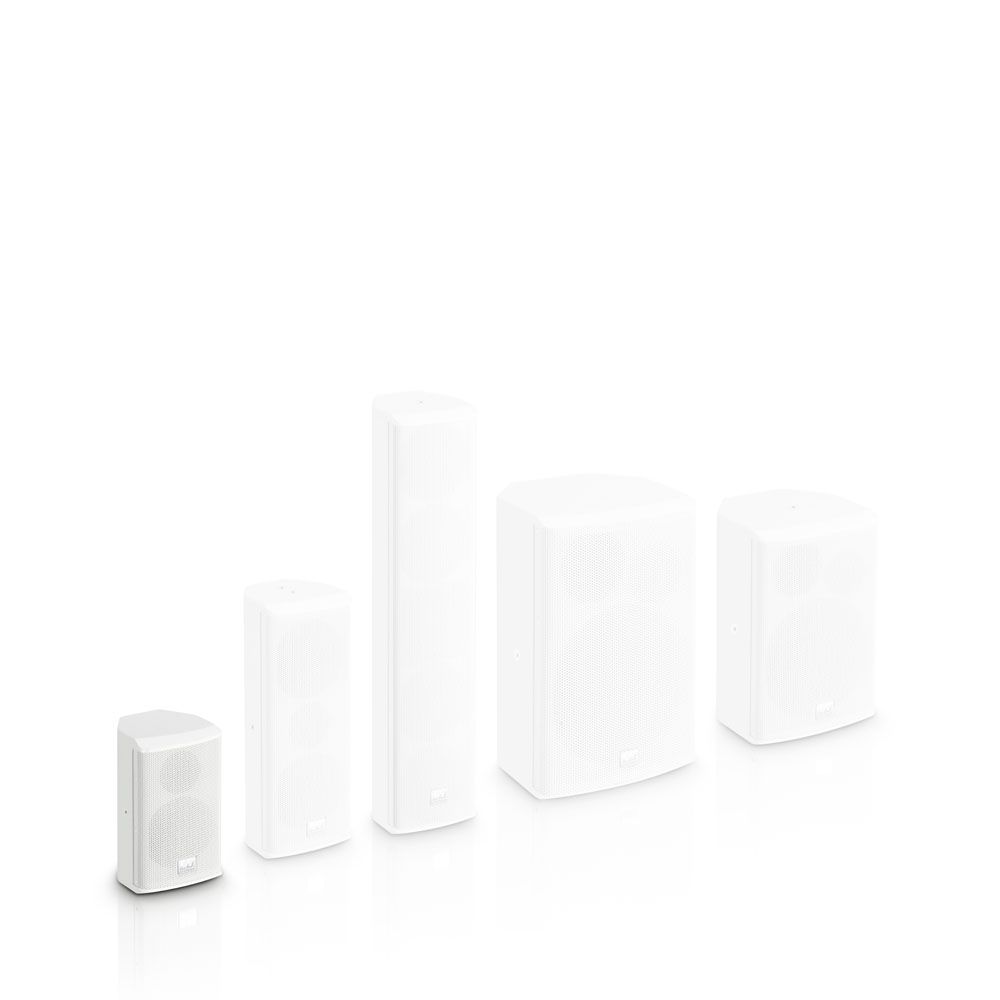

A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.

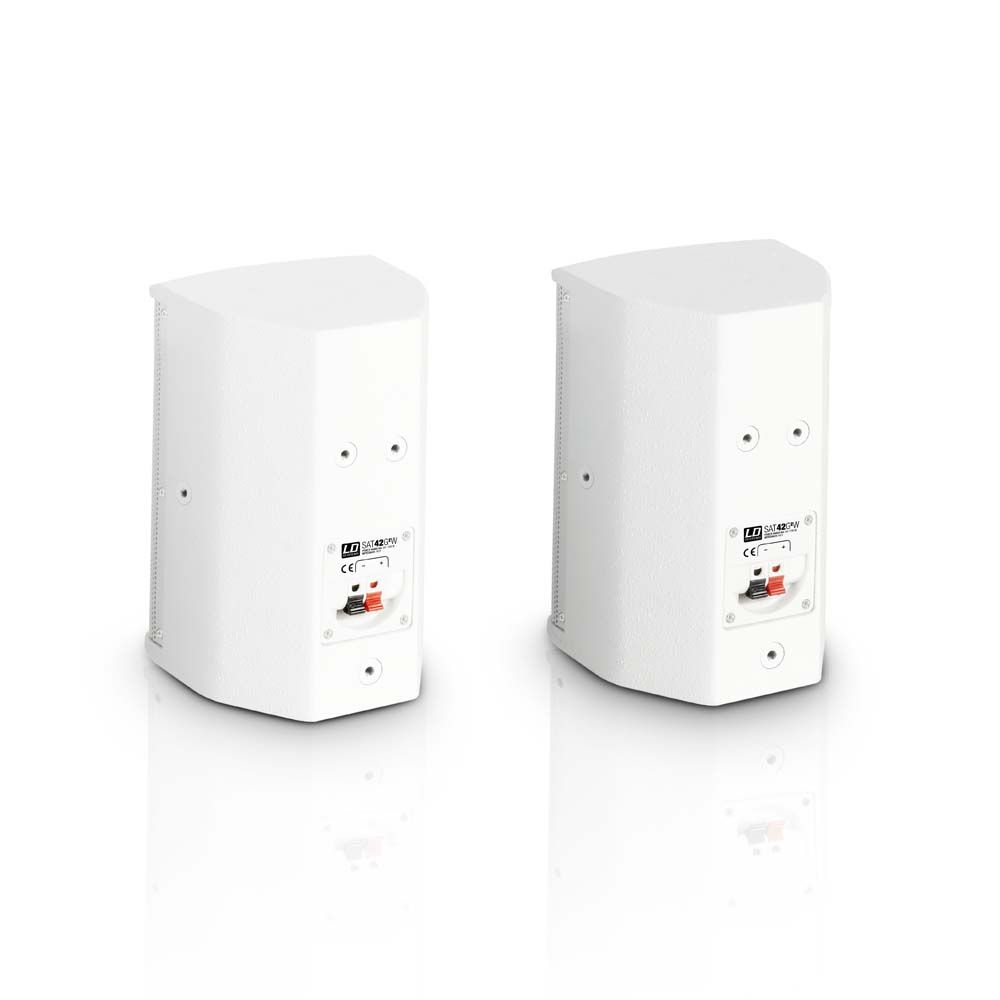

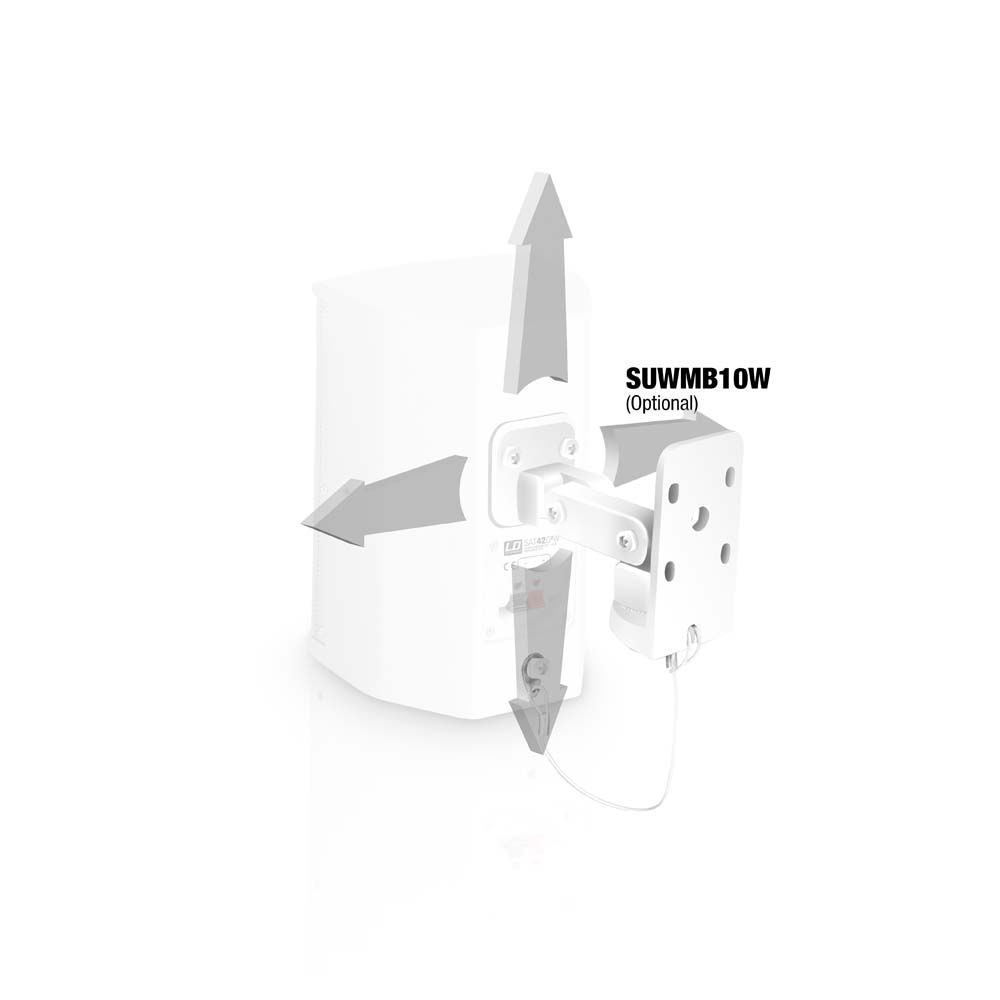

The cabinet with a rugged textured coatingis made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (RMS) | 60 W |
| SPL (1 W/1 m) | 85 dB |
| Max. SPL peak | 103 dB |
| Frequency response | 75 Hz |
| Impedance | 16 Ω |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of outputs | 1 |
| Colour | White |
Bass driver
| Size | 4 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Housing
| Design | Closed |
|---|---|
| Mounting type | Ceiling bracket |
| Cabinet material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 140 mm |
|---|---|
| Height | 230 mm |
| Depth | 125 mm |
| Weight | 5 kg |
Other properties
| Included accessories | Mounting bracket |
|---|
