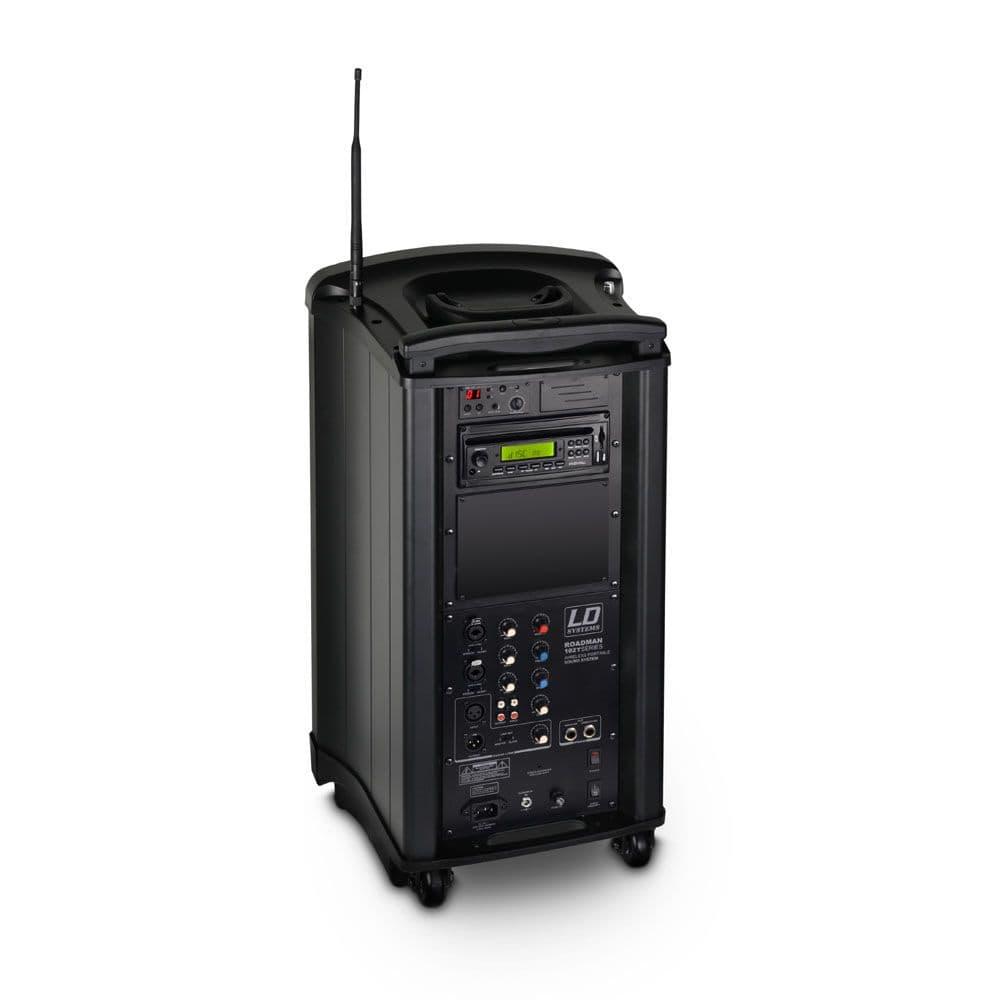

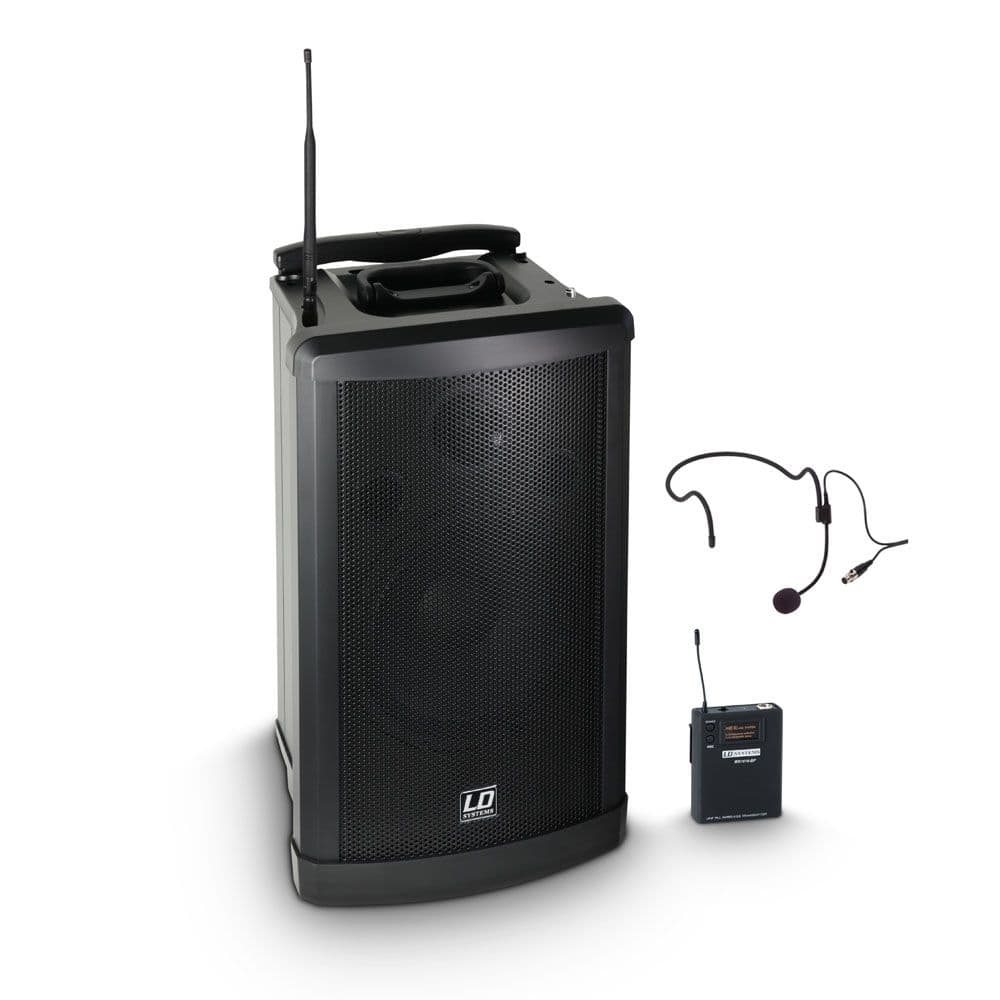

The LD Systems Roadman 102 HS is a mobile and compact sound system with headset
The Roadman 102 HS is a compact and mobile PA solution with integrated battery. This system is perfectly suitable for solo entertainers, churches, schools, business conferences or presentations where versatility is required. The Roadman comes with a CD/MP3/USB/SD Player as well as a wireless microphone unit with headset and beltpack . A second wireless microphone unit are also available in option.
General
| Product type | Battery-powered PA speaker |
|---|---|

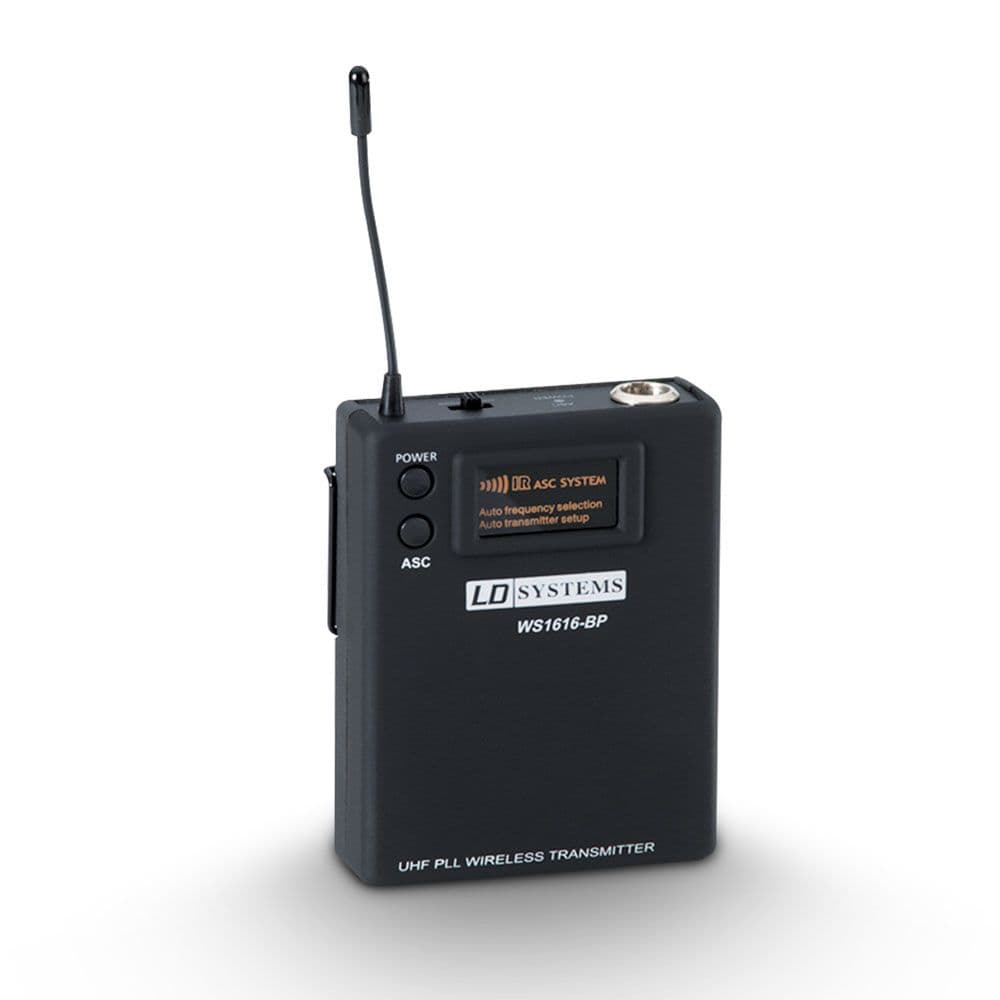

| Version | Set with pocket transmitter and headset microphone |
| Low/mid Woofer dimensions | 10 Inch |
| Woofer dimensions (mm) | 254 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 Inch |
| HF driver dimention (mm) | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Amplifier | Class D |
| RMS | 80 W |
| Peak power | 320 W |
| Frequency response | 70 - 16.000 |
| SPL (1W/1m) | 95 dB |
| Max. SPL | 115 dB |
| Protection circuits | Short circuit |

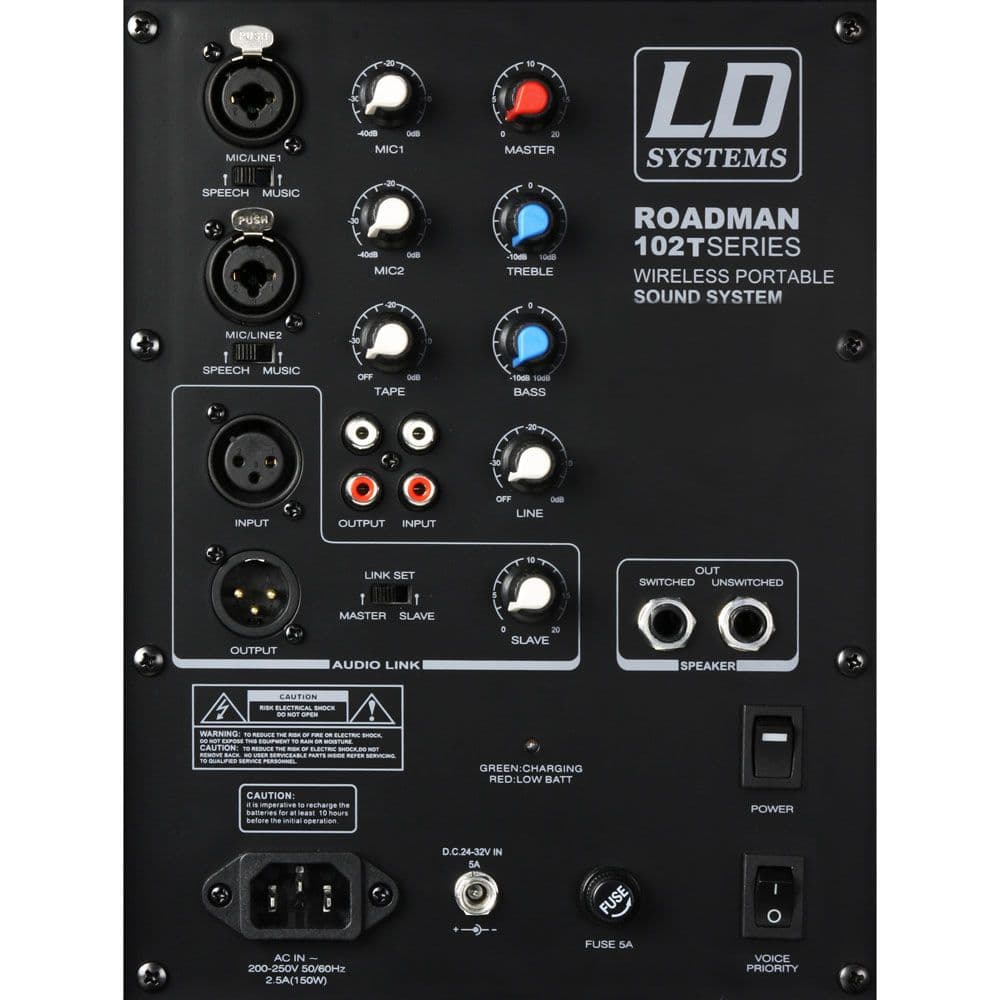

| Controls | Speech / music switch (Mic / Line 2), Volume Mic 1, Speech / music switch (Mic / Line 1), Audio-Link Set ( Main / Follower), Power, Audio-Link Follower Volume, Main, Line Gain, Voice priority on / off, Treble, Volume Mic 2 |
| Indicators | Charge/battery status, Power |
Media player
| Supported media | CD-R, CD-R/W, USB stick, Audio-CD, SD Card |
|---|---|
| Supported formats | Audio-CD, MP3 file, WMA file, WMA-CD, MP3-CD |
| Media player controls | Power / Volume, Program, CD ejector, Mode (CD / SD / USB), Play / Pause, Folder -, Previous Track, Shuffle, Next Track, mute, Repeat, Stop |
| Media player display elements | Lighted multifunctional LC display |
| Line inputs | 3 |
| Line input connectors | 2 x RCA, Audio-link input XLR, female |
| Mic inputs | 2 |
| Mic inputs | 6.3 mm jack, XLR |
| Line outputs | 3 |
| Line output connectors | 2 x RCA, Audio-link output XLR, male |
| Loudspeaker outputs | Speaker Out Switched, Speaker Out Unswitched |
| Speaker output connections | 6.3 mm jack |
| Power supply | transformer |
| Operating voltage | 200 V AC - 250 V AC, 24 V DC - 32 V DC (5A) |
| Rechargeable batteries | 2 x 12 V / 4.5 AH |
| Cabinet material | Plastic, Aluminium |
| Cabinet construction | Bass Reflex |
| Width | 355 mm |
| Height | 610 mm |
| Depth | 315 mm |
| Other features | Stand mount 36 mm, Audio-link function, Transport bag available optionally, additional radio receiver (LDRM102R) available optionally, Trolley handle, Transport casters, transport handle |
