Part of the TICA® series, the PRE2 is a compact two-channel line and mic mixer. Ideal for smaller installations, it allows you to mix stereo audio from any media source with a microphone for announcements.

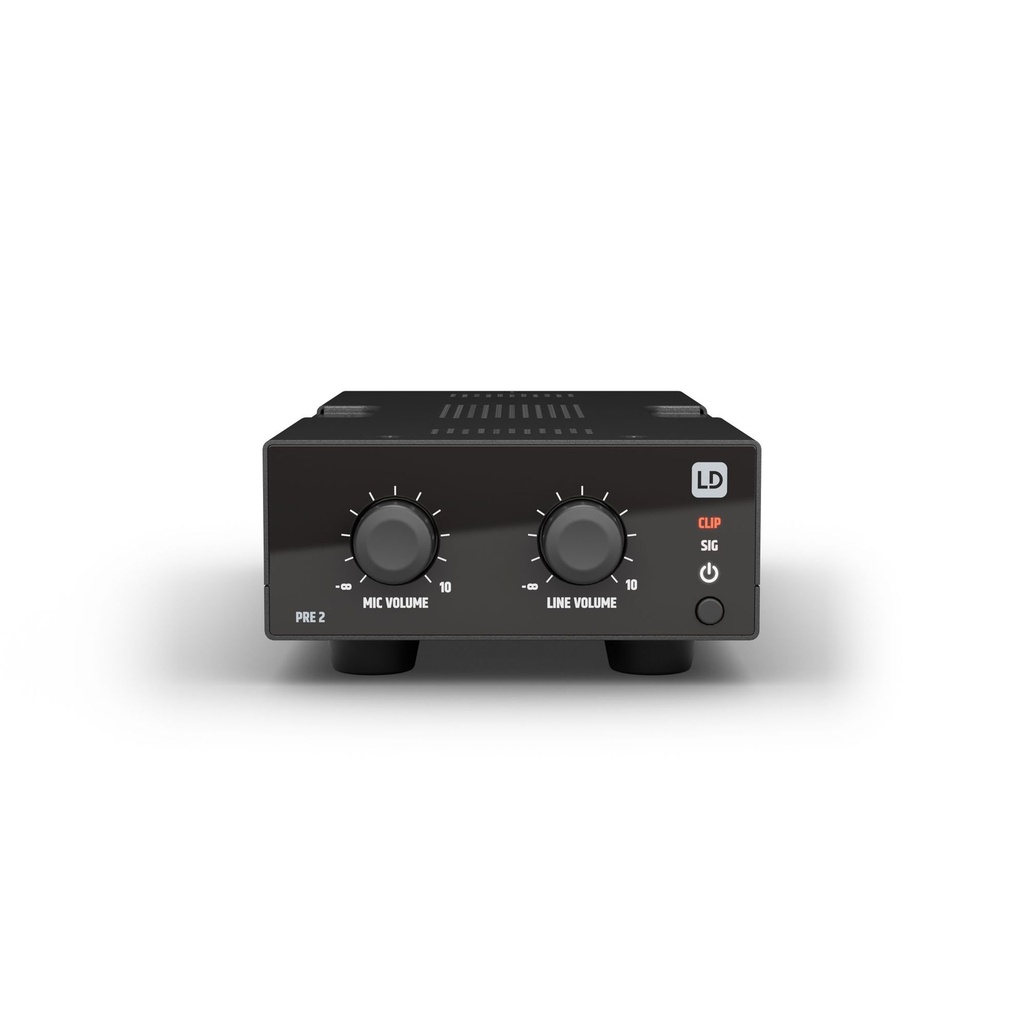

The PRE2 is incredibly easy to use with two simple volume control knobs, with signal presence and clip indicators.
The built-in audio ducking function automatically reduces the music level from the stereo line input when an announcement is being made. Connect a wired remote for simple master volume control. Dip switches let you configure it to work in stereo or mono mode.

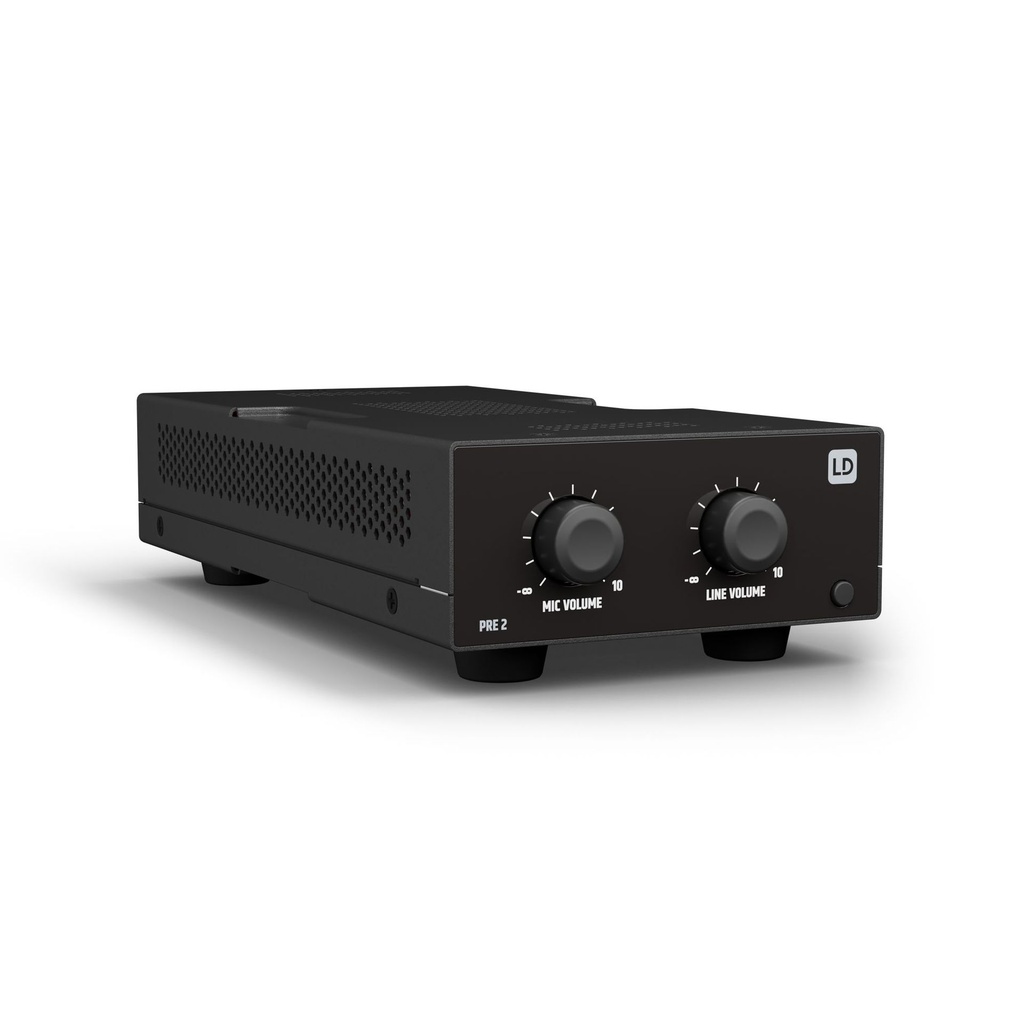

Its tiny form factor (106 × 44 × 222 mm) and included mounting plates allow it to be installed discreetly behind screens or under tables. Alternatively, it fits into a ¼ 19-inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

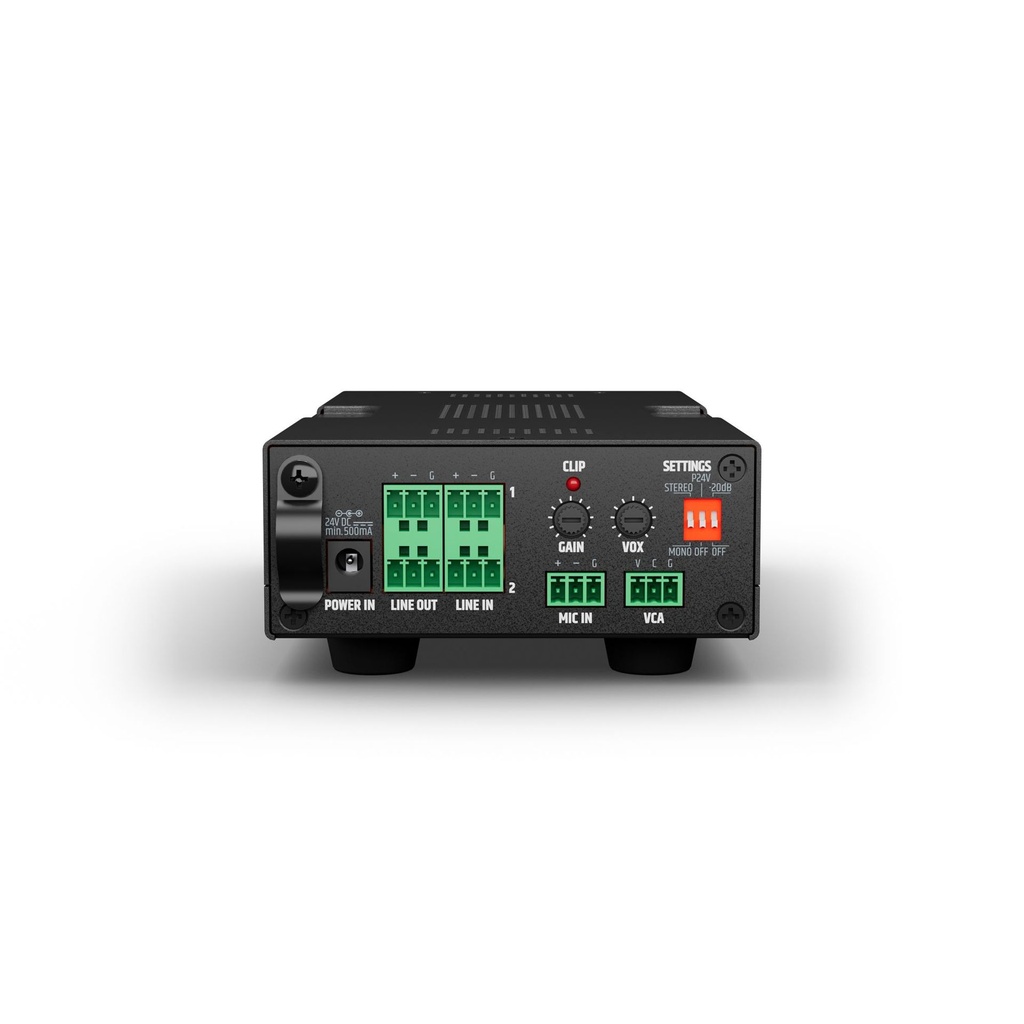

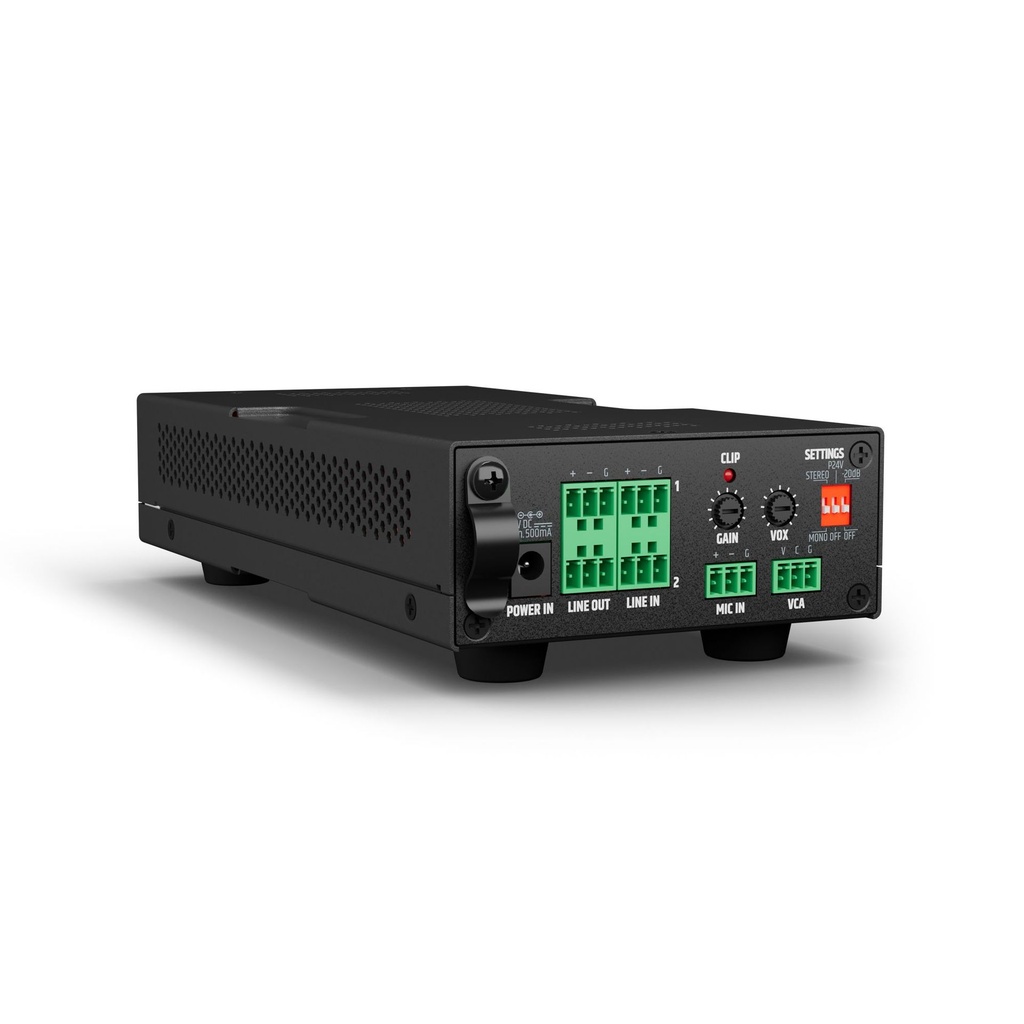

The PRE2 uses an external 24 V power supply. Terminal block connections for the analogue inputs and outputs make wiring easy.
- 1× balanced stereo line input
- 1× mic input with gain control and –20 dB pad switch
- Stereo line output (switchable to mono)
- Remote level control
- Automatic music ducking for announcements
General
| Emergency input | 1 |
|---|---|
| Reinforced Main Outputs | Convection |
| Time to Auto-standby | 106 x 54 x 227 mm |
| Product type | Installation mixer preamplifier |
| Mic inputs | 1 |
| Line inputs | 1 x stereo |
| Line outputs | 1 x stereo |
| Cooling | Convection |
| Priority levels | 2 |
Mic input
| Nominal input sensitivity | 15 mVrms |
|---|---|
| Nominal input clipping | 550 mVrms |
| Frequency response (-3 dB) | 150 Hz |
| Gain | Mic: 18 to 48 dB |
| PAD | -20 dB switchable |
| Phantom power | + 24V, 10mA switchable |
| VOX Threshold | Mic: 0%: Off, 25%: -40 dBu, 50%: -50 dBu, 100%: -63 dBu |
| Connector | 3-pin terminal block (3.81 mm) |
Line input
| Nominal input sensitivity line | 12 dBu ( Sine 1 kHz, Gain max ) |
|---|---|
| Nominal input clipping line | 14 dBu ( Sine 1 kHz, Gain max ) |
| Frequency range (- 0.5 dB) | 15 Hz |
| Gain line input | 3 dB |
| Line Input Connectors | 2 x 3-pin Terminal Block, pitch 3.81 mm |
Line output
| Line Output Connectors | 3-pin terminal block (3.81 mm) |
|---|---|
| Max. output level | 16 dBu |
3rd Party Control
| Connector (VCA) | 3-pin Terminal block, pitch (3.5 mm) |
|---|---|
| Main Volume (VCA) | 10 k (Linear Taper) External Potentiometer |
Power supply
| Type | External SMPS |
|---|---|
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power supply plugs | Type G - UK, Type C - EU, Type I - Australia, Type A - USA/Canada |
| Power Supply Secondary | 24 V DC / 500 mA |
| Power consumption (max.) | 6 W |
| Idle power consumption | 5 W |
| Standby power consumption | < 1 W |
General data
| Rack width | 1/4 19" |
|---|---|
| Operating temperature ( non-condensing ) | 0°C - 40°C; < 85% humidity, non condensing |
| Accessories (included) | External power supply with interchangeable plugs, Mounting plates for surface mount applications |
| Optional accessories | Rack mounting hardware ( LDTICARK ) |
