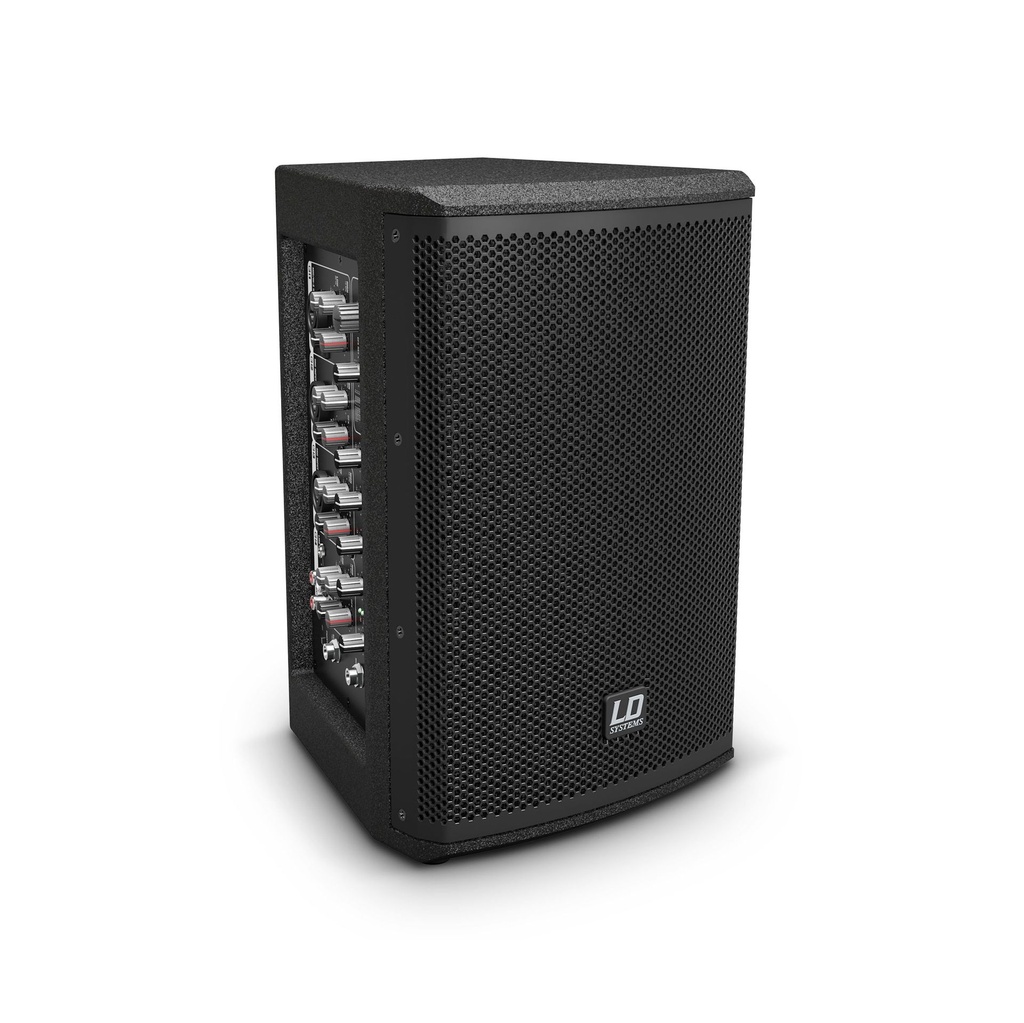

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power. The compact bass reflex loudspeaker features a 6.5" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.
Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.
The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
- Class D amplification with 2 x 280 watts peak power
- 6.5” custom woofer and 1” HF driver
- Integrated 4-channel mixer
- 24-bit DSP with 16 FX Presets
- Slave output for combination with LD MIX 6 G3 passive loudspeaker
- Bass reflex enclosure for powerful, punchy bass

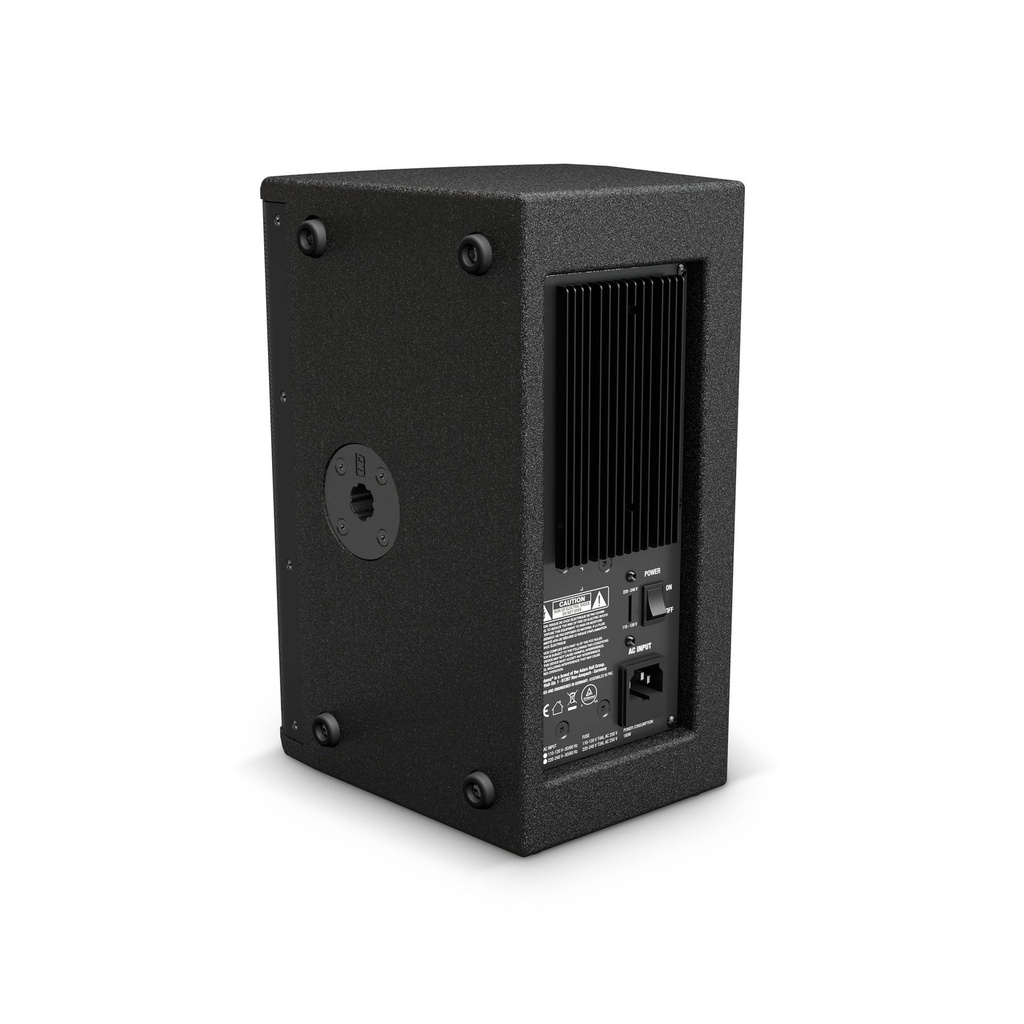

- Dual 16 mm pole mounts for horizontal or vertical orientation
General
| Type (active/passive) | Active |
|---|
| Peak output power | 560 W |
|---|
| RMS output power | 160 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| Max. SPL peak | 122 dB |
|---|
| Frequency response | 80 Hz |
|---|
| Speaker system | 2-way system |
|---|
| Dispersion | Hor.: 80° / Vert.: 70° |
|---|
| Number of inputs | 5 |
|---|
| Number of outputs | 2 |
|---|
| Colour | Black |
|---|
Inputs
| Number of microphone inputs | 3 |
|---|
| Mic-in connector type | XLR combo socket |
|---|
| Phantom power | 15 V |
|---|
| Number of instrument inputs | 1 |
|---|
| Inst-in connector type | XLR combo socket |
|---|
| Number of line inputs | 1 |
|---|
| Line-In connector type | 2 x RCA female (Stereo) |
|---|
| Number of aux inputs | 1 |
|---|
| Aux inputs connector types | 3.5 mm Jack TRS female |
|---|
Microphone input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. gain) | 70 mV |
|---|
| Input impedance | 14 kΩ |
|---|
Line input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain) | -5 dBu |
|---|
| Input impedance (balanced) | 44 kΩ |
|---|
Outputs
| Number of speaker outputs | 1 |
|---|
| Speaker output connection type | 6.3 mm Jack TS female |
|---|
| Number of line outputs | 1 |
|---|
| Line outputs connector type | 6.3 mm Jack TS female |
|---|
Signal processing
| Mixer | 1 |
|---|
| Mixer channels | 4 |
|---|
| Audio processing | Digital effects (DFX), 2 band EQ (High, Low) |
|---|
Bass driver
| Size | 6.5 " |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
Tweeter
| Driver size | 1 " |
|---|
| Manufacturer | Custom Made |
|---|
Mains operation
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz, 110 V AC - 120 V AC / 50 - 60 Hz |
|---|
| Power supply type | Linear power supply |
|---|
| Rated power | 180 W |
|---|
| Mains connector | IEC C14 plug male |
|---|
Housing
| Design | Bass reflex |
|---|
| Flange | 16 mm flange |
|---|
| Cabinet material | Medium-density fibreboard MDF |
|---|
Dimensions & weight
| Width | 214 mm |
|---|
| Height | 323 mm |
|---|
| Depth | 221 mm |
|---|
| Weight | 7 kg |
|---|
Other properties
| Included accessories | Mains cable |
|---|
