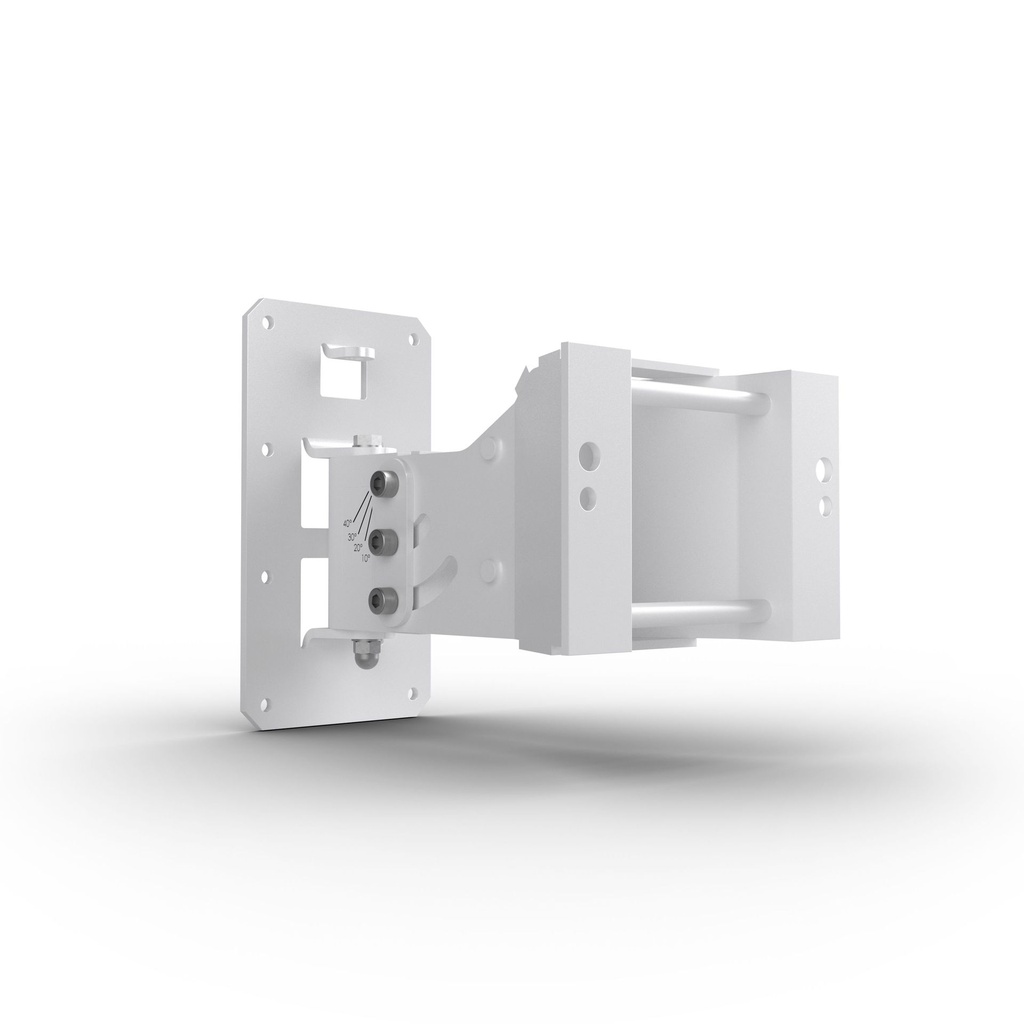

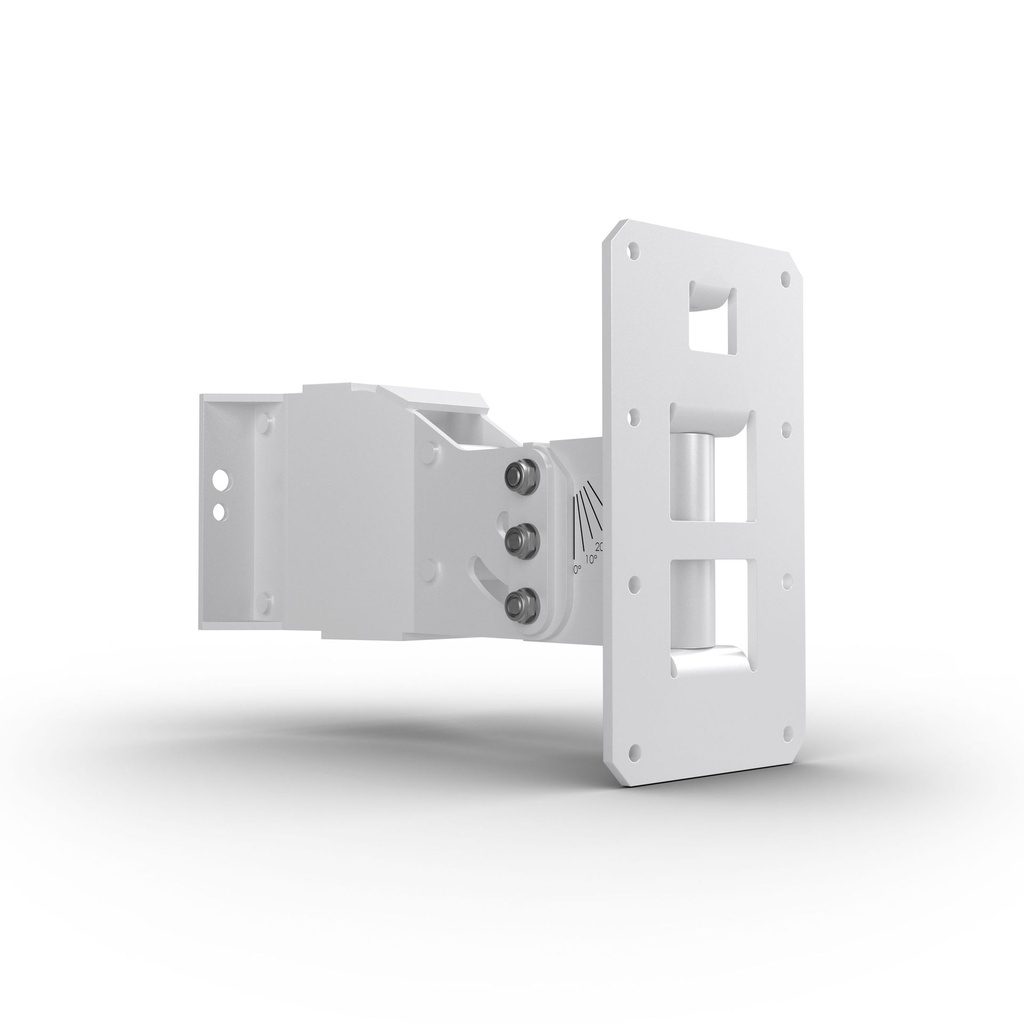

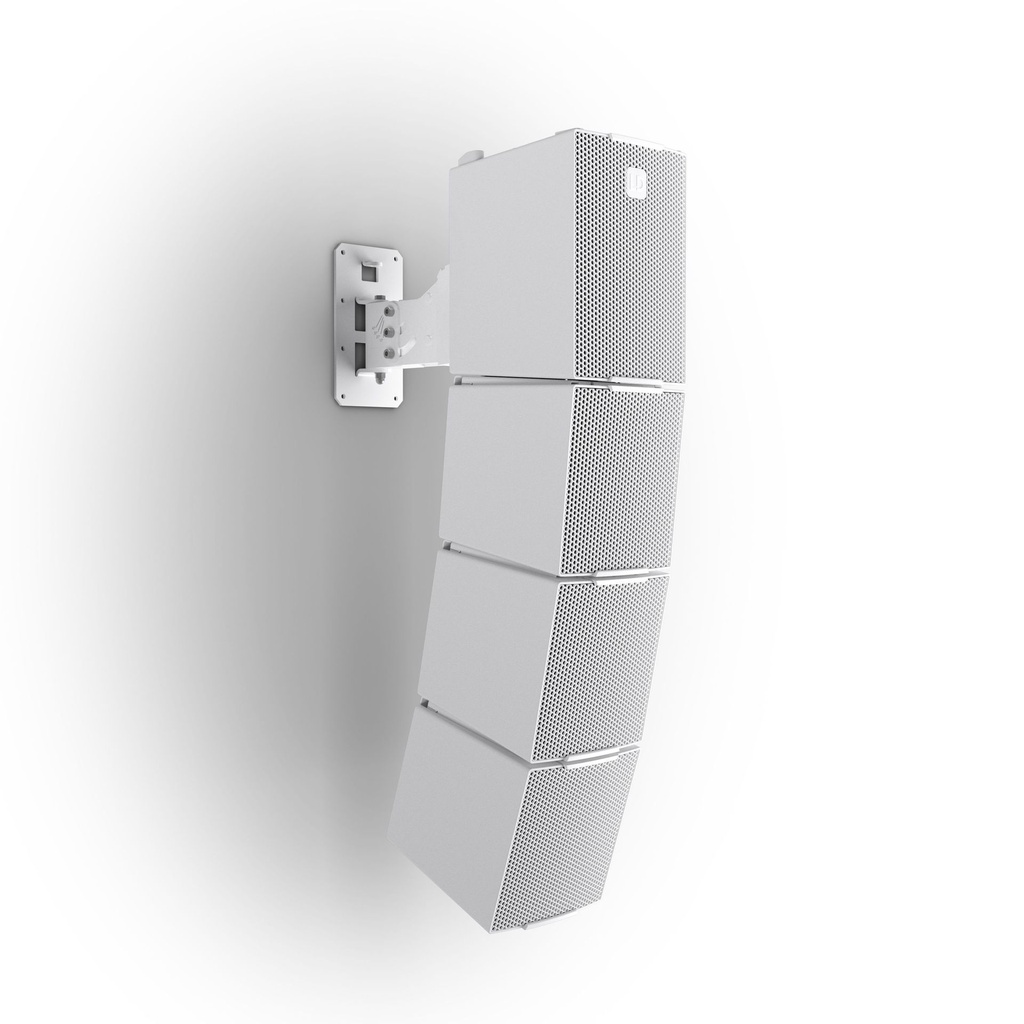

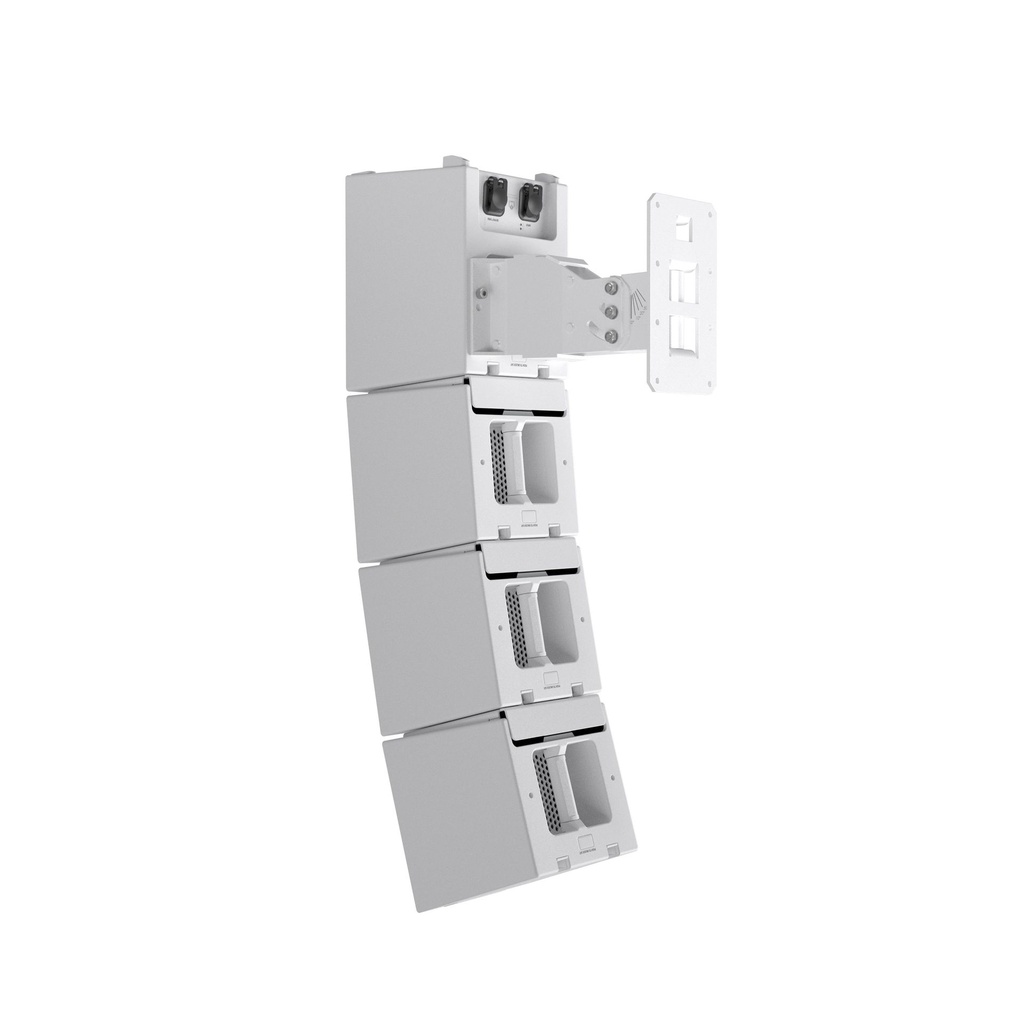

MAILA WALL MOUNT is the dedicated wall-mount for fixed installations using MAILA SPA or SAT X. It enables flexible, precise aiming with continuous adjustment, combining 0° – 40° down-tilt with -60° – 60° swivel. The wall-mount is available in black or white to match the installation environment.
- Tilt-and-swivel wall mount for MAILA SPA and SAT X
- 0°–40° down-tilt and up to 120° swivel
- Continuously adjustable
- Easy-to-read angle scale
- Available in black and white
General
| Mounting | Screws (Ø 8 mm) |
|---|---|
| Maximum load | 32 kg |
| Material | Steel |
| Coating | Powder coated |
| Held object detachable | 0 |
| Device mounting | M8, M10 |
| Colour | White |
Dimensions & weight
| Diameter of mounting holes | 9 mm |
|---|---|
| Tilt angle | 0 ° |
| Swivel angle | -60 ° |
| Width | 168 mm |
| Height | 220 mm |
| Depth | 265 mm |
| Weight | 5.22 kg |
Other properties
| Recommended accessories | Screws (Ø 8 mm) |
|---|
