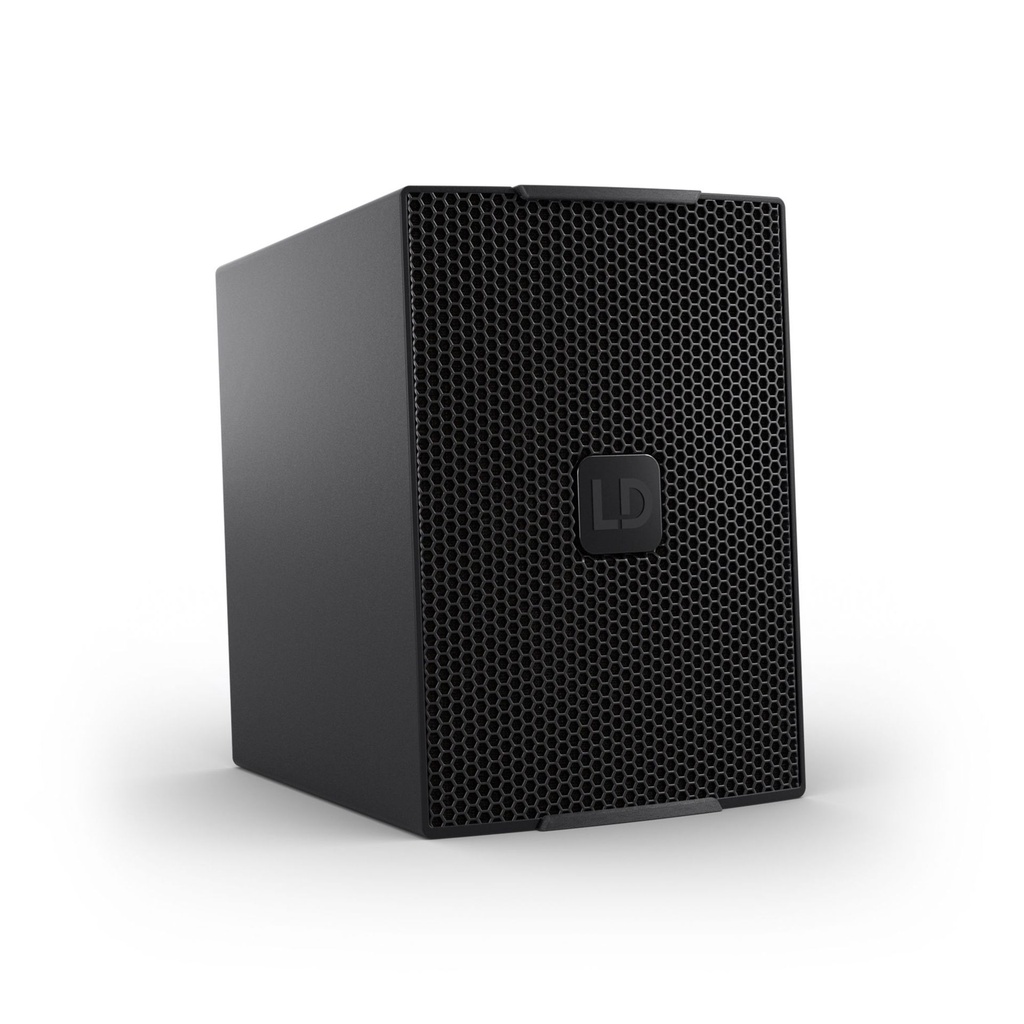

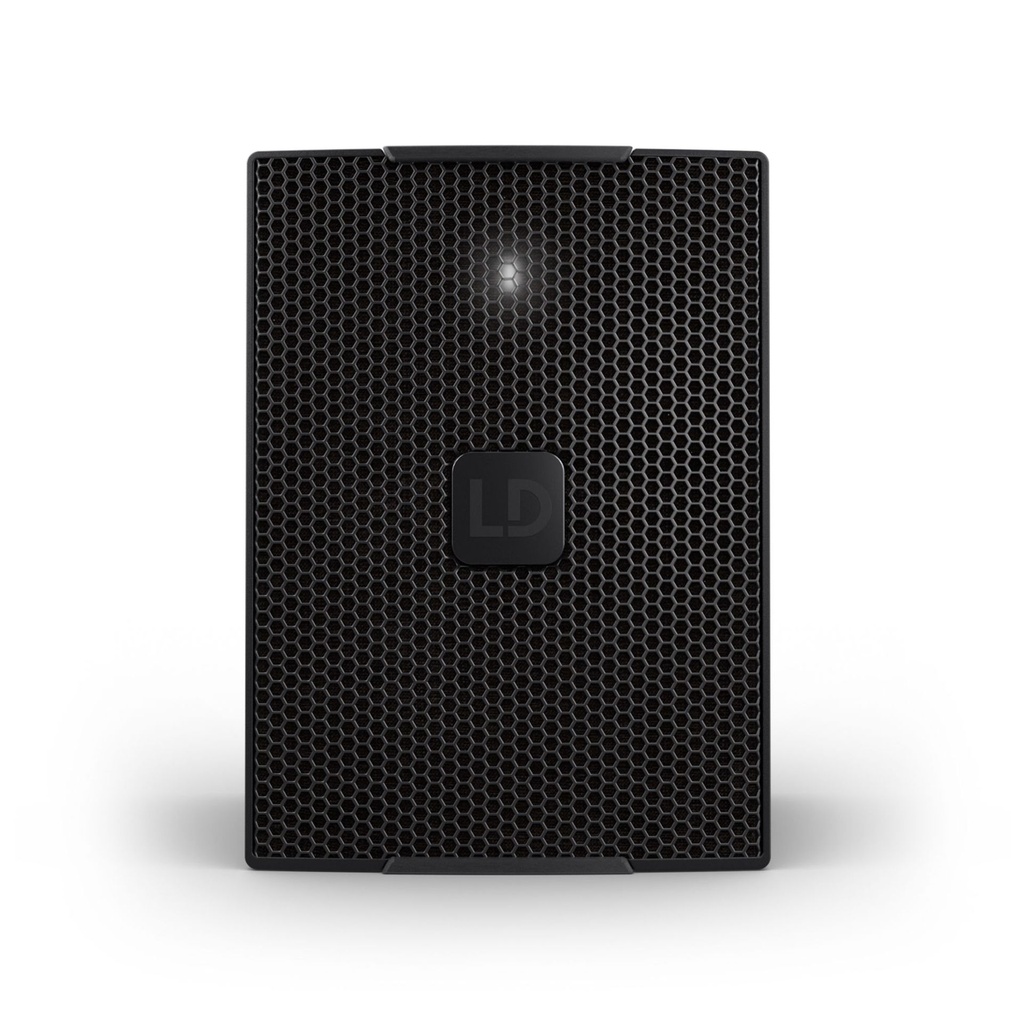

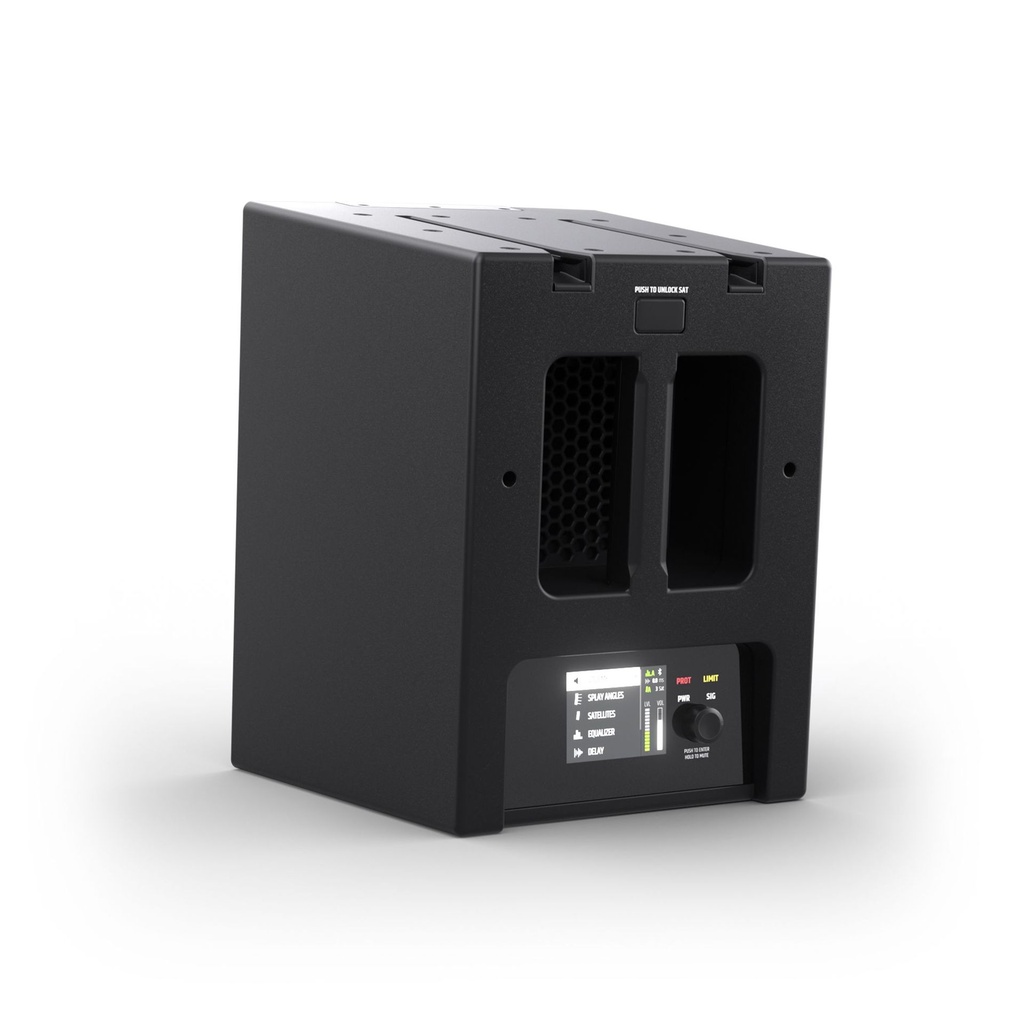

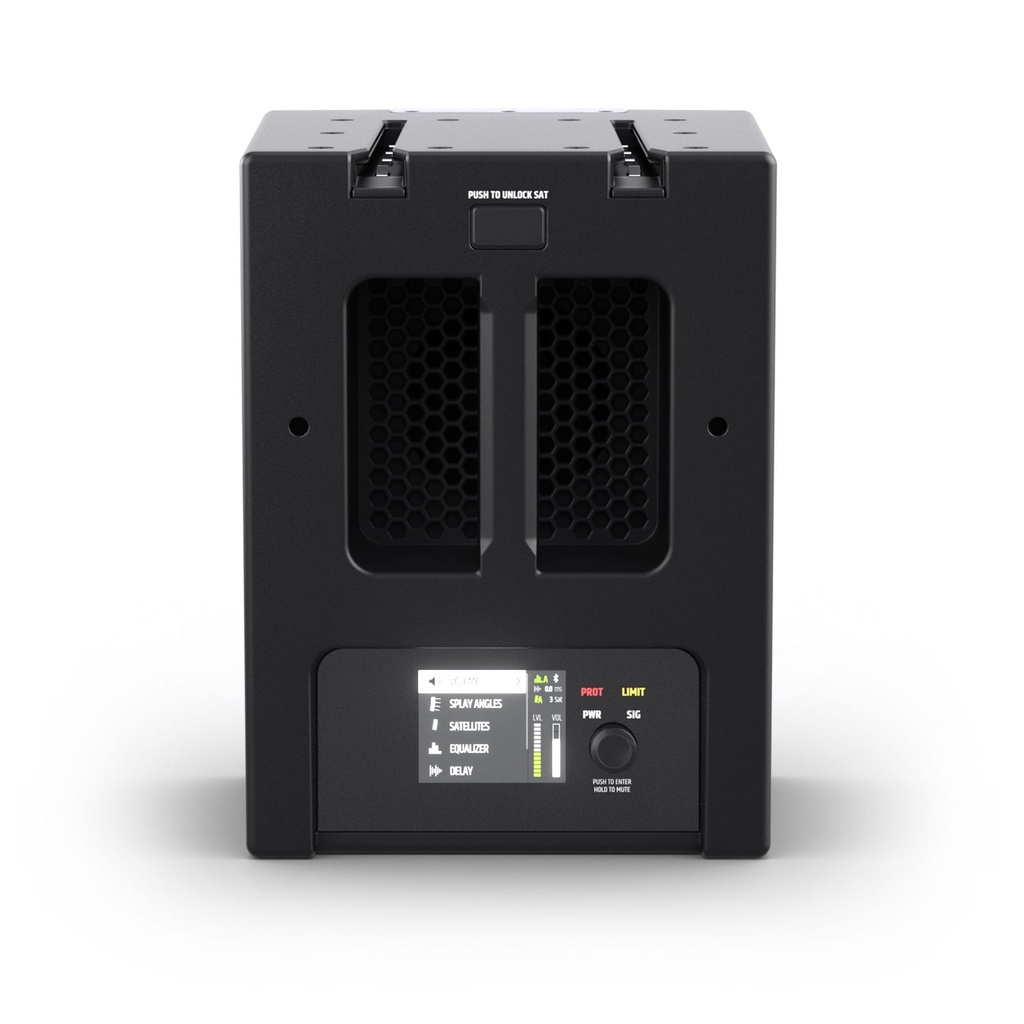

MAILA SPA is the only MAILA module without integrated loudspeakers - and yet an integral part of the MAILA concept.
MAILA SPA is an amplifier module in elegant unibody aluminium design with integrated 1.25 kW power amplifier with SysCore® DSP for controlling up to eight MAILA SAT or four SAT X. Via the SmartLink+® system, the satellites can be simply slid onto the SPA and cable-less supplied with the signal. In addition, SmartLink+® enables automatic detection of the installed satellites for automatic or manual DSP processing.
MAILA SPA allows users to create ground stack configurations with a speaker pole, as well as flown setups with the EasyMount+® mounting bracket.
The free MAILA app (iPadOS) connects via LogoLink® wirelessly to the amplifier module, for quick setup, control and updates. Once connected, the app recognises the available MAILA components and enables the system to be set up quickly and easily. The wireless LogoLink® antennas are invisibly integrated into the LD logo of the MAILA SPA.
- Amplifier module for up to eight MAILA SAT or four SAT X
- Integrated 2-channel DSP power amplifier with 1.25 kW RMS power output
- Flexible use in ground stack or flown setups
- Truss mounting with optional EasyMount+® adapter
- SmartLink+® enables tool-less and cable-free connection for up to eight SAT
- SpeakON® output for daisy-chaining up to four SAT X
- Wink-LED for individual speaker identification
- LogoLink®: Wireless antennas integrated in the LD logo for wireless app connection
- DSP configuration directly on the device or via the free MAILA app
General
| RMS output power | 1250 W |
|---|---|
| Amp class | Class D |
| Protection features | Limiter, Overheating, Overload |
Bluetooth®
| Bluetooth® version | 4.2 |
|---|---|
| Features | App control |
| Bluetooth® range | ≤70 m (Class 1-2) |
| Receiver (client) | 0 |
| Transmitter (host) | 0 |
Inputs
| Number of line inputs | 1 |
|---|---|
| Line-In connector type | XLR 3-pole female |
Line input performance
| Input impedance (balanced) | 20 kΩ |
|---|
Outputs
| Number of speaker outputs | 1 |
|---|---|
| Speaker output connection type | speakON® 4-pole female socket |
| Number of line outputs | 1 |
| Line outputs connector type | XLR 3-pole male |
Signal processing
| AD/DA converter bit depth | 24 Bit |
|---|---|
| AD/DA converter sampling rate | 48 kHz |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | Switched-mode power supply (SMPS) |
| Rated power | 400 W |
| Mains connector | Mains plug device outdoor male & TRUE1® |
Housing
| Cabinet material | Aluminum continuous casting |
|---|---|
| Coating | Powder coated |
| Colour | Black |
Environmental
| Ambient temperature | 0 °C |
|---|---|
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 205 mm |
|---|---|
| Height | 282 mm |
| Depth | 226 mm |
| Weight | 7.45 kg |
