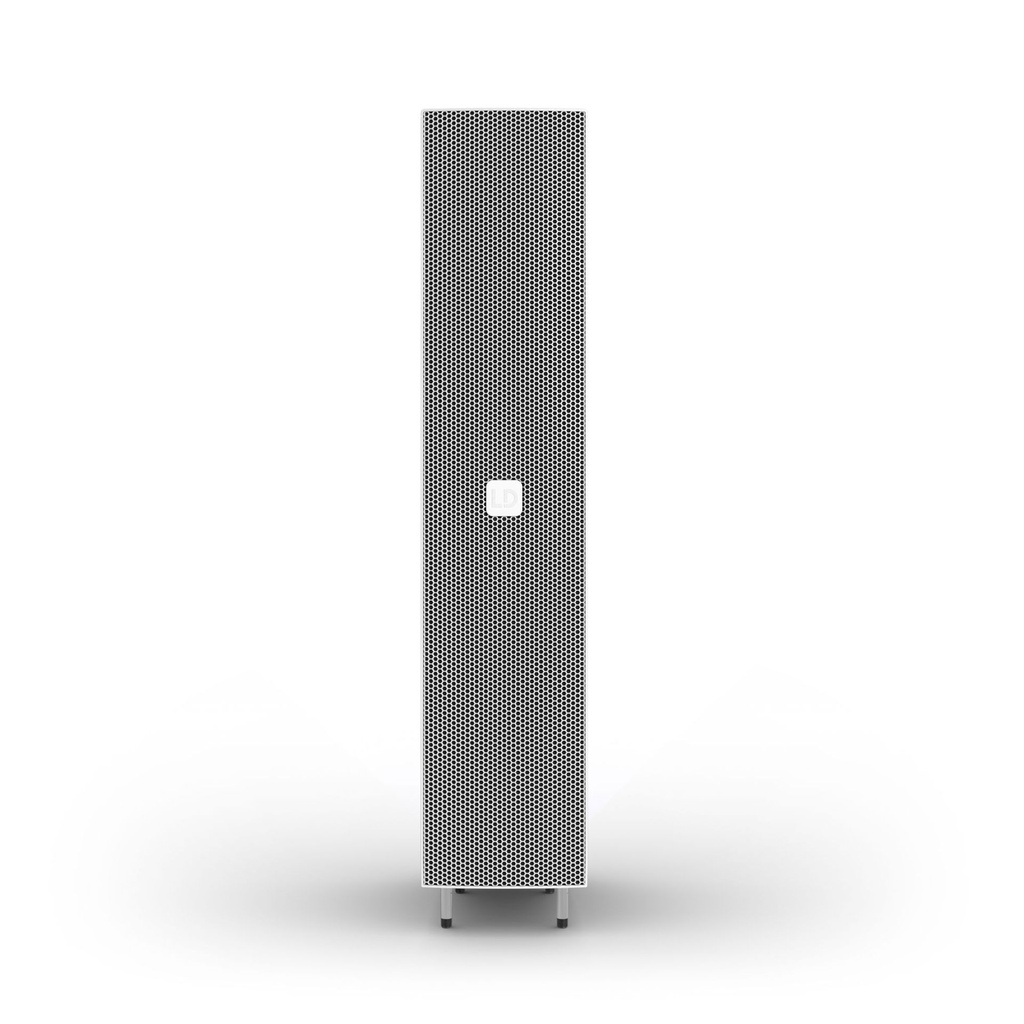

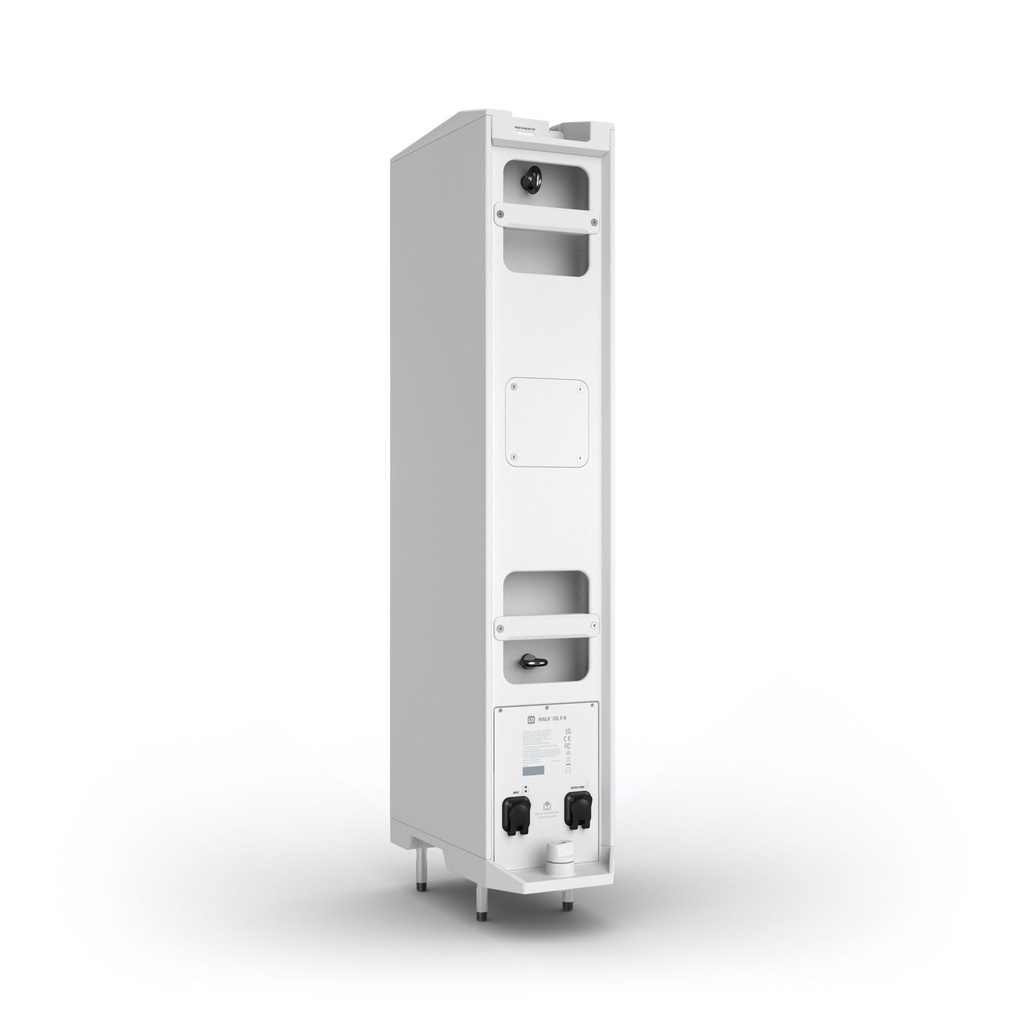

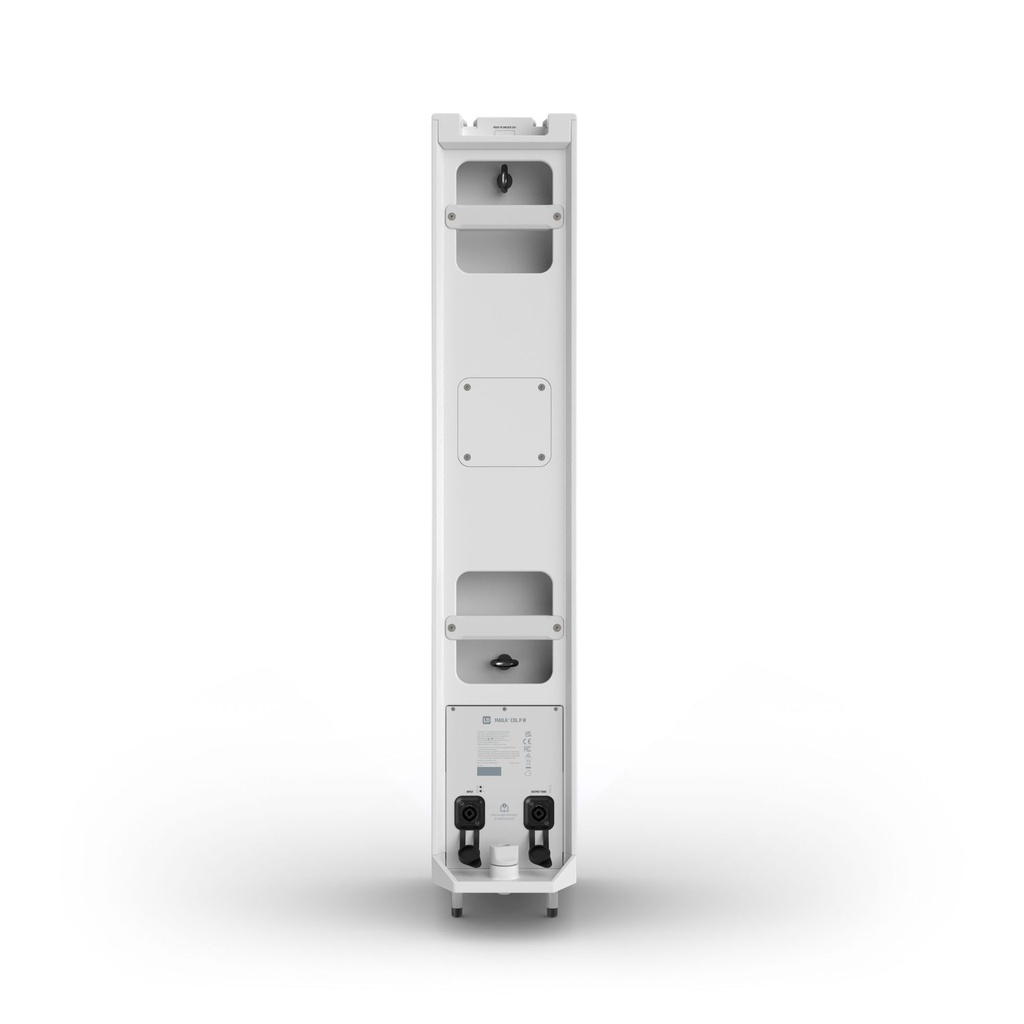

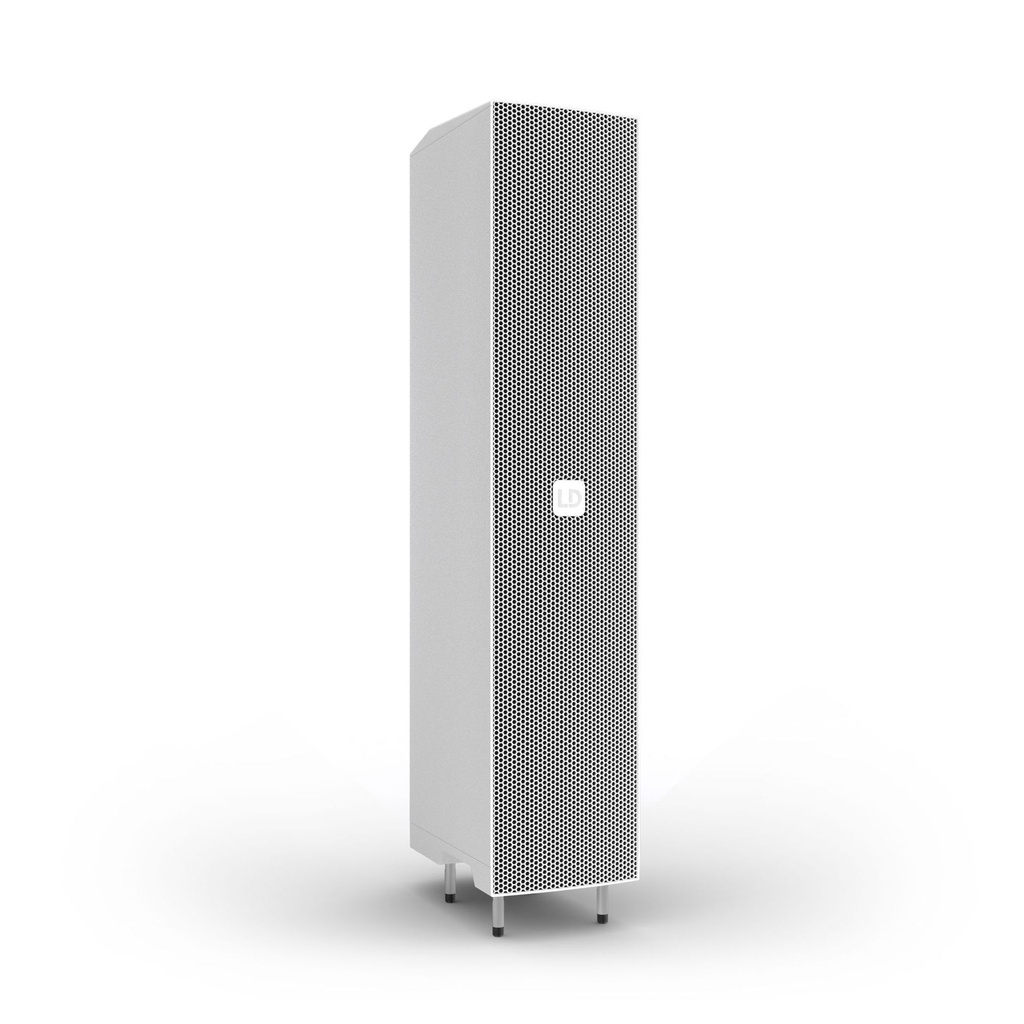

The MAILA COL P W is the passive full-range column module with four high-performance 6.5" woofers. It reinforces the crucial low-mid band, adding headroom and authority where speech intelligibility, punch, and consistent throw matter most.
In ground-stacked setups, the column module enables significantly taller system builds for improved projection and more even coverage into the far field.
Flown, MAILA COL P W forms a slim, visually discreet array base that integrates cleanly with up to eight MAILA SAT. Mounted directly via SmartLink+®, it enables a fast, tidy build without patch cables between modules – supporting clean, scalable system layouts from compact event coverage through to larger venues and fixed installations.
For passive MAILA systems, ADA amplifiers in combination with ArmoníaPlus provide a structured, repeatable setup workflow. We have transferred the MAILA Quick Setup approach into ArmoníaPlus by creating dedicated manufacturer EQs (MEQ) and presets for 250+ MAILA configurations. Select your MAILA configuration and receive the key setup guidance you need – such as pick-up points and satellite curving. The selected configuration includes the required compensation for loudspeaker coupling and air loss over distance, providing a reliable starting point. ArmoníaPlus supports our Wink-LED identification for passive MAILA components and offers further tuning options, including live Smaart integration, plus valuable insight into system health and available headroom.
- 4 × 6.5" Passive column module for extended low-mid headroom
- Power handling: 2,000 W
- Frequency response (-6 dB): 105 – 500 Hz
- Max. SPL (peak): 130 dB
- Input impedance: 6 Ω
- Flexible use in ground stack and flown setups
- SmartLink+® enables cable-free connection to up to eight MAILA SAT
- Wink-LED for individual speaker identification
- Rugged, lightweight aluminium cabinet
- Secure, fast mounting via 4 pins + 1 screw
- Two handles for confident handling on site
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 2000 W |
| Power handling (AES) | 1000 W |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 125.4 dB |
| Max. SPL peak (pink noise, fullspace/1 m, CF 4) | 130 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 122 dB |
| Frequency response (-6 dB, rel. Avg) | 105 Hz |
| Impedance | 6 Ω |
| Number of inputs | 1 |
| Input connector types | speakON® 4-pole female socket |
| Number of outputs | 1 |
| Output connector types | speakON® 4-pole female socket, SmartLink+® |
| Colour | White |
Mid range
| Size | 6.5 " |
|---|---|
| Quantity | 4 |
| Voice coil | 2 " |
| Magnet | Neodymium |
Housing
| Design | Bass reflex |
|---|---|
| Number of handles | 2 |
| Mounting type | EasyMount+®, MAILA® COL flange |
| Flange | SmartLink+® |
| Cabinet material | Aluminium |
| Coating | Powder coated |
Environmental
| Ambient temperature | 0 °C |
|---|---|
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 205 mm |
|---|---|
| Height | 968 mm |
| Depth | 354 mm |
| Weight | 31 kg |
