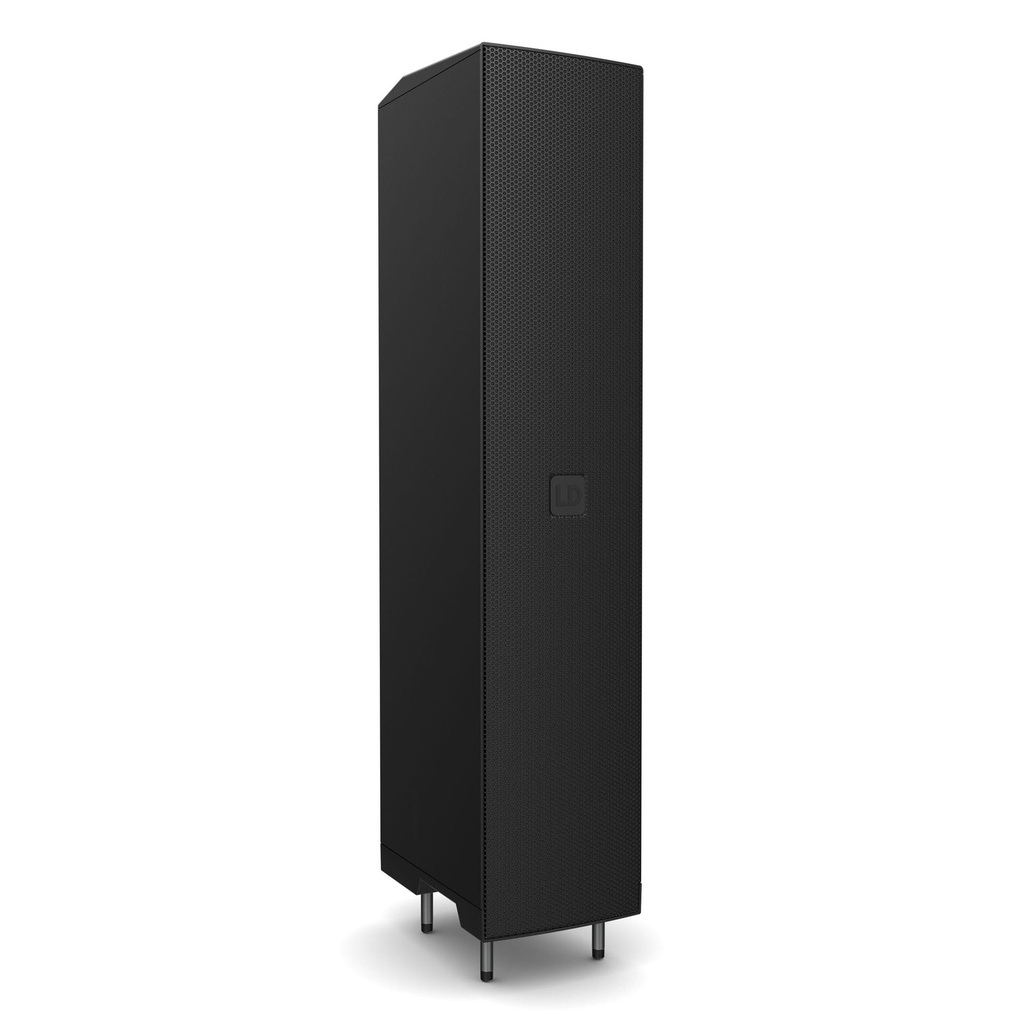

The MAILA COL full-range column module makes MAILA truly versatile. With its 4x 6.5'' woofers, the elegant column element not only provides an extended low-mid range, but also includes a 4-channel DSP amplifier with 2.5 kW total power, which drives both the column itself and the MAILA SAT satellites.
In this way, MAILA sets with column module can not only be used as a ground stack variant, but also as a flown array consisting of MAILA COL and up to eight MAILA SAT - especially useful for festivals and fixed installations. In addition, as with a classic line array, users can select different subwoofer arrangements and adapt them to the sound reinforcement requirements on site.
On the ground, the use of MAILA COL provides a further advantage: the interconnected column module allows ground stack sound setups that are significantly higher (up to 3.4 metres) than conventional systems and, with its greater throw, also enables uniform sound coverage in the far field.
With LogoLink®, LD Systems has added another innovation to MAILA. Via the free MAILA app (iPadOS), every MAILA system can be quickly, easily and precisely adjusted and wirelessly supplied with software updates. Once connected, the app automatically recognises the existing MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logo of the MAILA COL.
- Powered column module with integrated loudspeakers and DSP power amplifier
- 4x 6.5'' woofers for extended low-mid headroom
- 4-channel DSP amplifier with SysCore® DSP and 2.5 kW total output power
- Frequency range: 105 - 500 Hz
- Flexible use in ground stack and flown setups
- SmartLink+® enables cable-free connection of column module and satellites (powering up to eight MAILA SAT)
- LogoLink®: Wireless antennas integrated in the LD logo for wireless app connection
- DSP configuration directly on the device or via the free MAILA app (iPadOS)
General
| Type (active/passive) | Active |
|---|
| RMS output power | 2500 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 125.4 dB |
|---|
| Max. SPL peak (pink noise, fullspace/1 m, CF 4) | 130 dB |
|---|
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 122 dB |
|---|
| Frequency response (-6 dB, rel. Avg) | 105 Hz |
|---|
| Number of inputs | 1 |
|---|
| Input connector types | XLR 3-pole female |
|---|
| Number of outputs | 1 |
|---|
| Output connector types | XLR 3-pole male |
|---|
| Protection features | Limiter, Overheating, Overload, Overvoltage |
|---|
| Colour | Black |
|---|
Bluetooth®
| Bluetooth® version | 4.2 |
|---|
| Features | App control |
|---|
| Receiver (client) | 0 |
|---|
| Transmitter (host) | 0 |
|---|
Inputs
| Number of line inputs | 1 |
|---|
| Line-In connector type | XLR 3-pole female |
|---|
Line input performance
| Input impedance (balanced) | 20000 Ω |
|---|
Signal processing
| Mixer | 1 |
|---|
| Mixer channels | 4 |
|---|
| Audio processing | 3 band EQ (High, Mid, Low), Delay Line, Dynamics, Reverb |
|---|
| AD/DA converter bit depth | 24 Bit |
|---|
| AD/DA converter sampling rate | 48 kHz |
|---|
Bass driver
| Size | 6.5 " |
|---|
| Quantity | 4 |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Neodymium |
|---|
| Voice coil | 2 " |
|---|
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 800 W |
|---|
Housing
| Design | Bass reflex |
|---|
| Number of handles | 2 |
|---|
| Number of mounting points | 3 |
|---|
| Cabinet material | Aluminum continuous casting |
|---|
| Front grille material | Aluminium |
|---|
Environmental
| Ambient temperature | 0 °C |
|---|
| Maximum air humidity (non-condensing) | 80 % |
|---|
Dimensions & weight
| Width | 205 mm |
|---|
| Height | 1028 mm |
|---|
| Depth | 354 mm |
|---|
| Weight | 36.195 kg |
|---|
