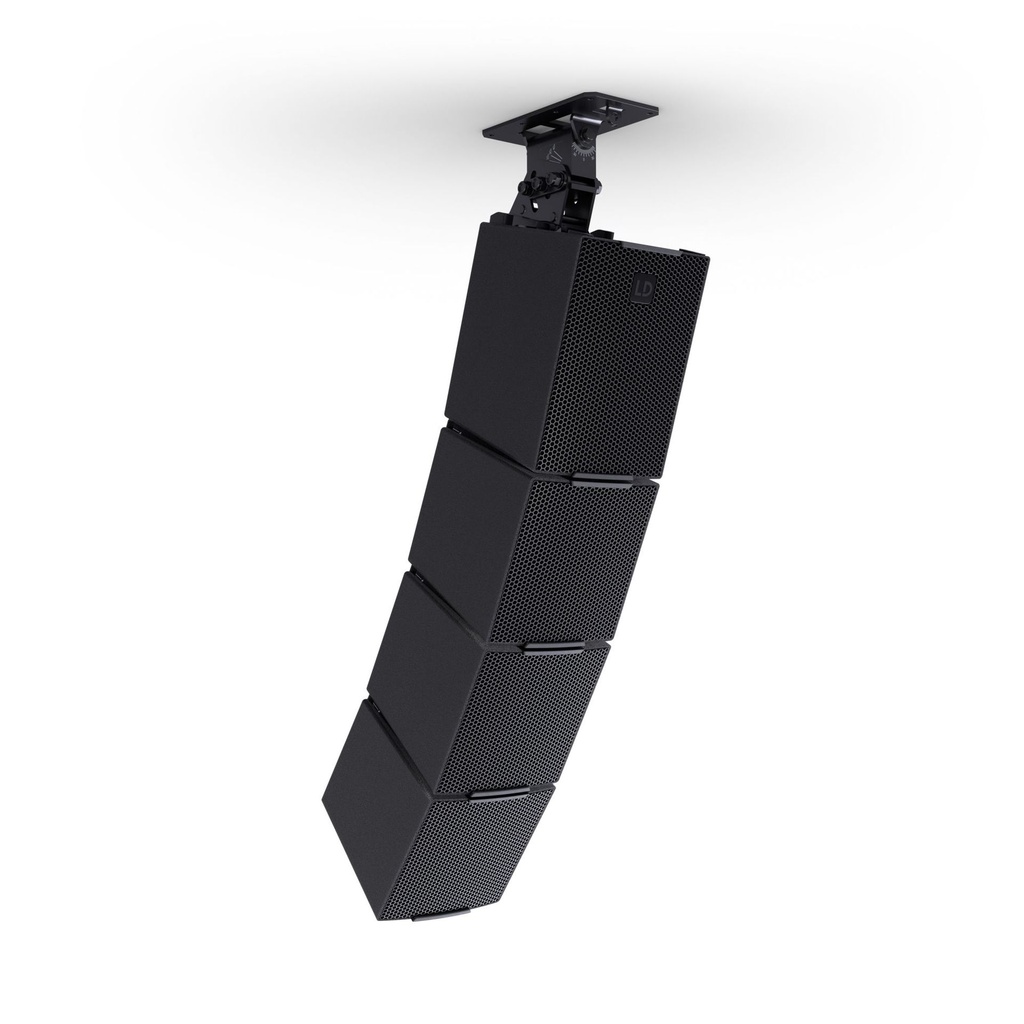

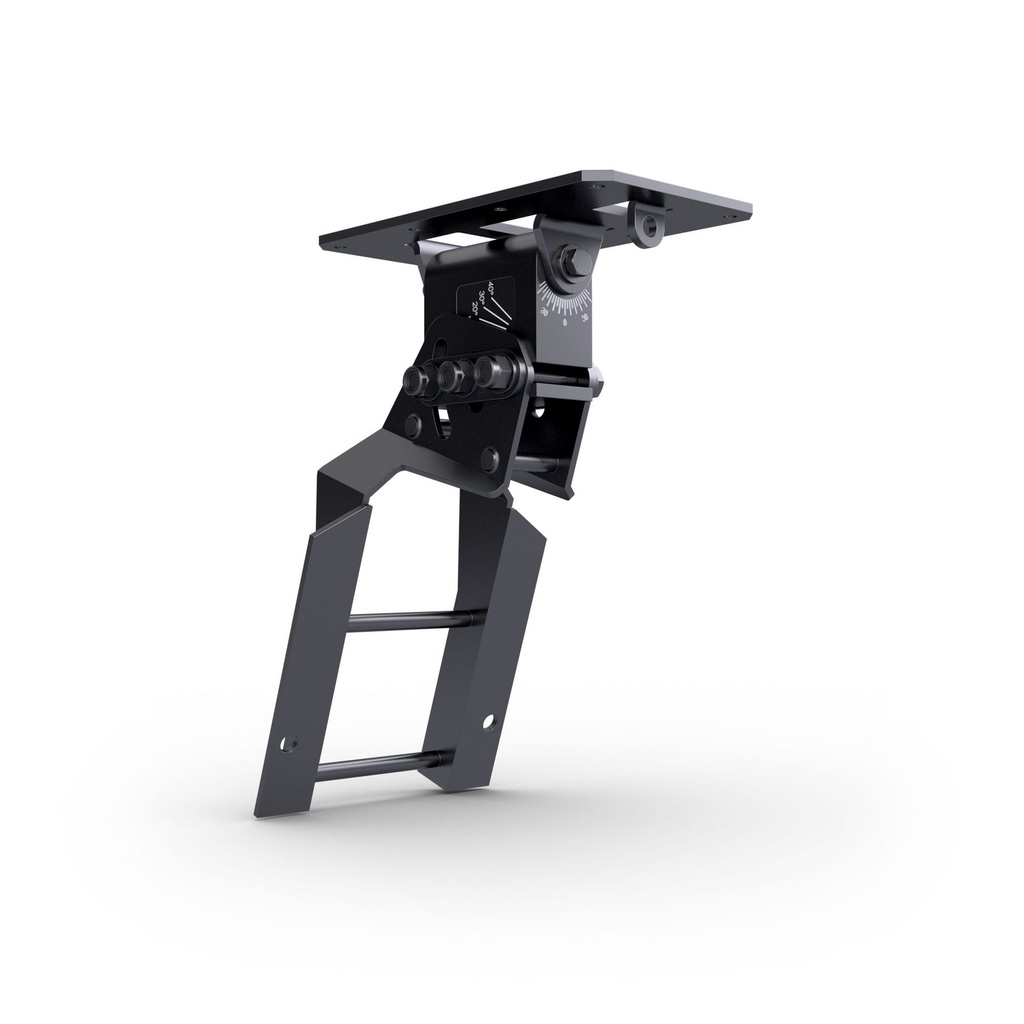

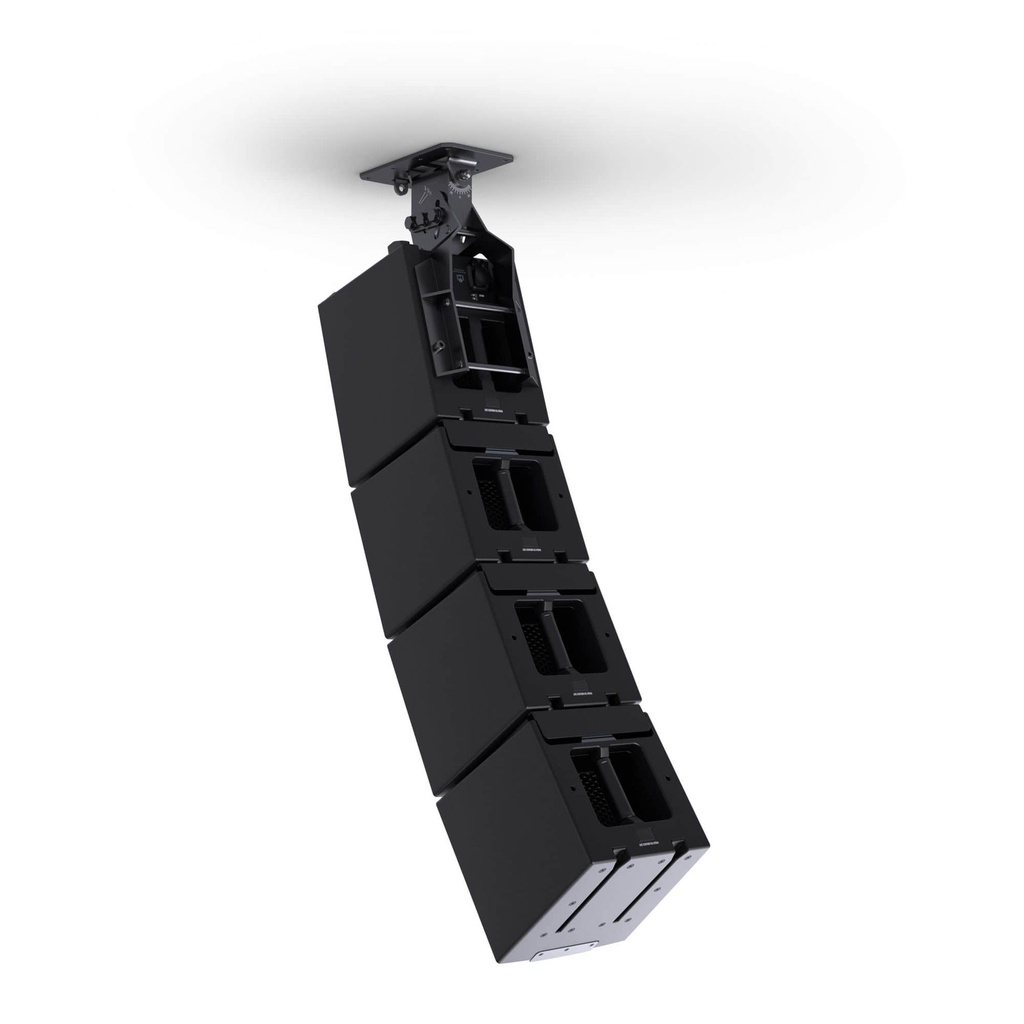

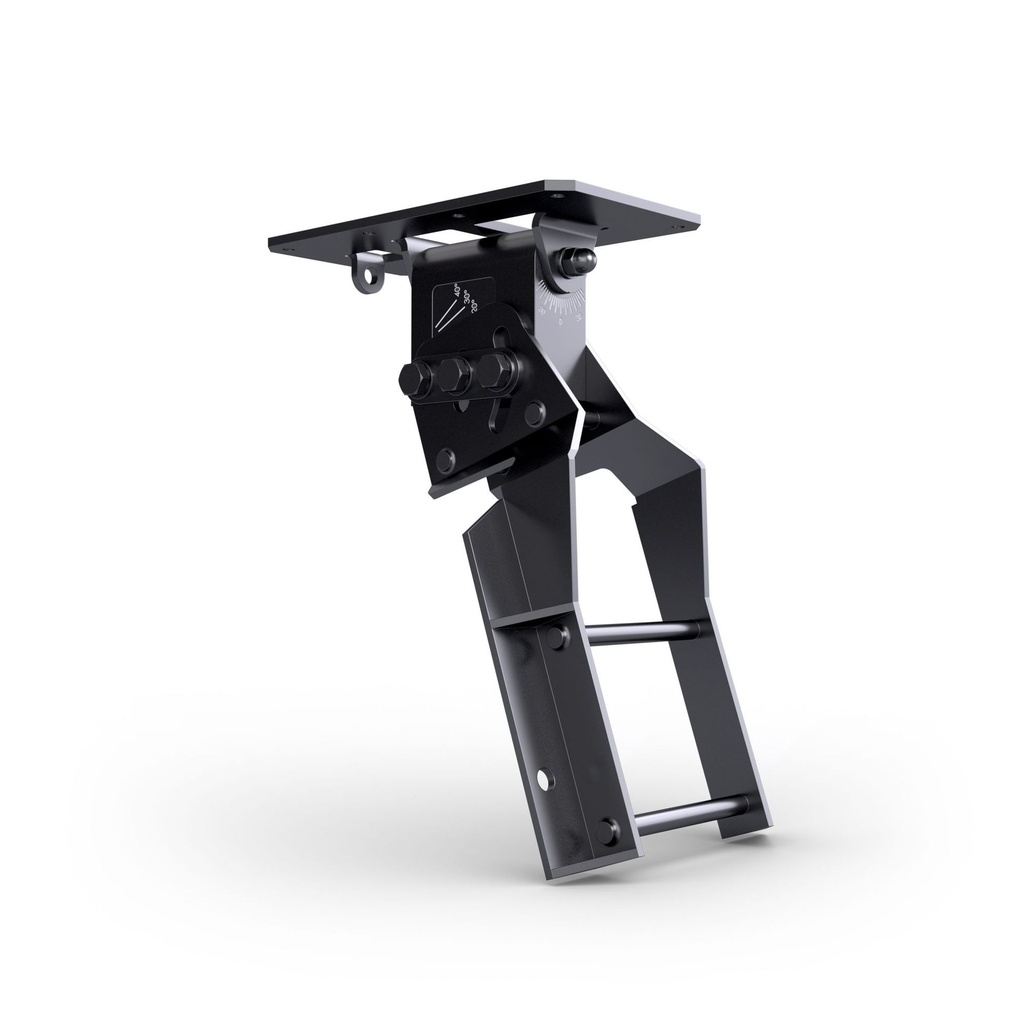

MAILA CEILING MOUNT is the dedicated ceiling-mount for fixed installations using MAILA SPA or SAT X. It enables flexible, precise aiming with continuous adjustment of 0°–40° down-tilt for accurate alignment. The Ceiling mount is available in black or white to match the installation environment.
- Tiltable ceiling mount for MAILA SPA and SAT X
- 0°–40° down-tilt
- Continuously adjustable
- Easy-to-read angle scale
- Available in black and white
General
| Mounting | Screws (Ø 8 mm) |
|---|---|
| Maximum load | 32 kg |
| Material | Steel |
| Coating | Powder coated |
| Held object detachable | 0 |
| Device mounting | M10 |
| Colour | Black |
Dimensions & weight
| Diameter of mounting holes | 9 mm |
|---|---|
| Tilt angle | 0 ° |
| Width | 168 mm |
| Height | 220 mm |
| Depth | 350 mm |
| Weight | 4.73 kg |
Other properties
| Included accessories | M10 x 20 mm, Lock washers |
|---|---|
| Recommended accessories | Screws (Ø 8 mm) |
