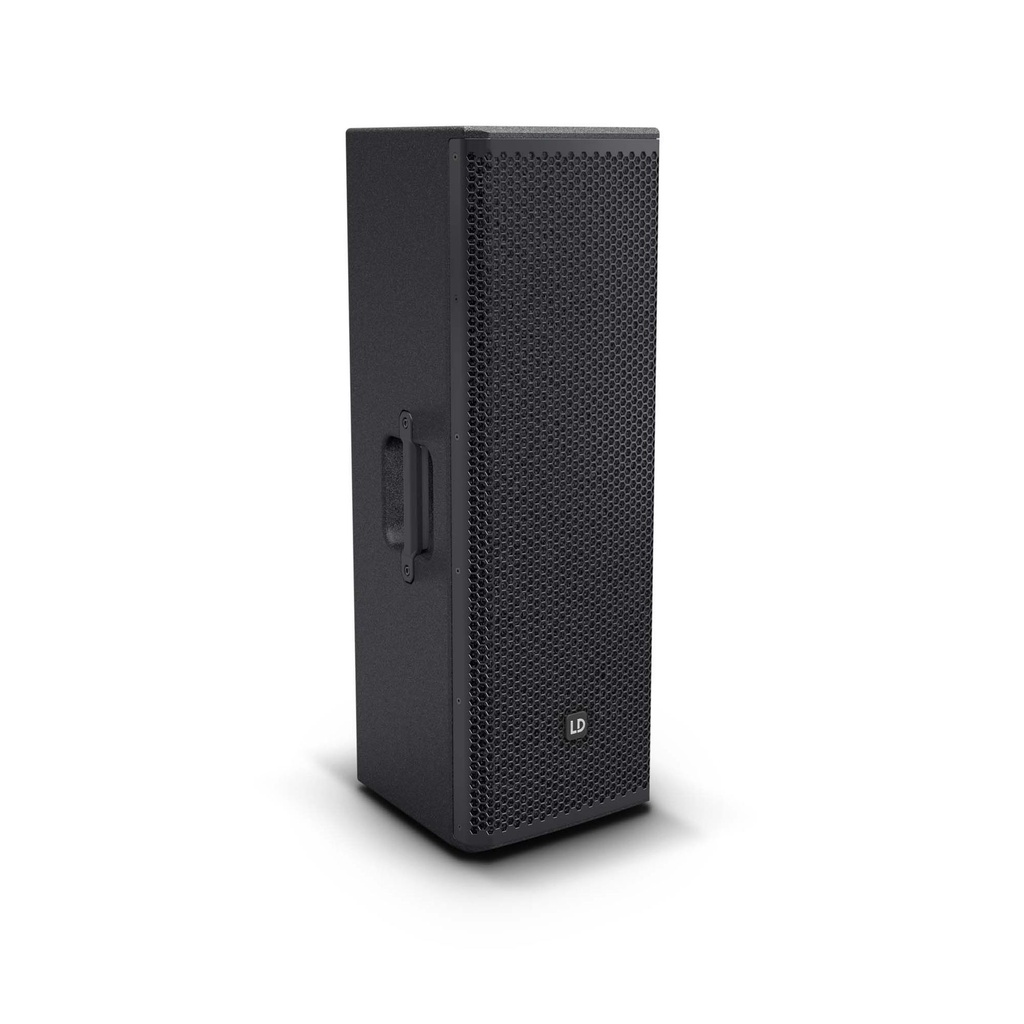

Engineered for rock-solid reliability day in, day out this passive 2-way loudspeaker is a truly professional performer. With its multi-purpose bass reflex construction it is equally suitable for fullrange, satellite or monitor use in live PA systems and permanent installations. The STINGER® 28 G3 boasts a mighty 400 watts RMS power handling and 125 dB maximum sound pressure. It is loaded with dual custom designed 8” woofers and a BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. Situated directly in front of the two 8” woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.
The STINGER® 28 G3 is designed to be a real workhorse throughout. The enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the STINGER® 28 G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.
- 2-way passive 2 x 8” bass reflex PA speaker
- 400 watts RMS power handling
- 125 dB maximum SPL
- 2 x 8“ custom woofer and BMS compression driver
- BEM optimized HF waveguide for uniform coverage
- Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
- Shock-resistant front grill provides maximum speaker protection
- 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
- Large selection of smart installation and transport accessories
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 800 W |
| Power handling (RMS) | 400 W |
| SPL (1 W/1 m) | 99 dB |
| Frequency response | 58 Hz |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Dispersion | Hor.: 90° / Vert.: 50° |
| Number of inputs | 1 |
| Input connector types | Standard speaker connector 4-pole male & speakON® |
| Number of outputs | 1 |
| Output connector types | Standard speaker connector 4-pole male & speakON® |
| Colour | Black |
Bass driver
| Size | 8 " |
|---|---|
| Quantity | 2 |
| Manufacturer | Custom Made |
| Magnet | Ferrite |
| Voice coil | 2 " |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | BMS |
| Magnet | Ferrite |
| Voice coil | 1 " |
Housing
| Design | Bass reflex |
|---|---|
| Number of handles | 2 |
| Mounting type | M10 for SuperClamp |
| Flange | 36 mm (0°/5°) |
| Cabinet material | Birch plywood |
| Material thickness | 12 mm |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 270 mm |
|---|---|
| Height | 756 mm |
| Depth | 290 mm |
| Weight | 19.3 kg |
