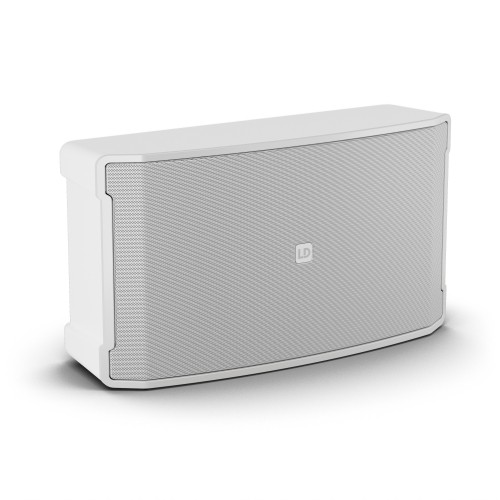

Part of the DQOR® series, the DQOR® SUB 8 is an installation subwoofer with an 8" woofer and a 10" passive radiator, designed for high performance in a compact form factor. Ideal for both indoor and outdoor installations, the DQOR® SUB 8 features a robust aluminium enclosure with powder coating for durability and an IP55 rating for outdoor use.
The clean and low-profile design ensures the DQOR® SUB 8 is a sleek addition to any room, combining aesthetics with powerful audio performance. With 240 W RMS and 4 ohm impedance, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.
The DQOR® SUB 8 has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup. The recessed connection area, with a clear plastic cover, ensures outdoor protection for the connections.
The 4-pole terminal block connector allows for parallel (2 Ohm) or serial connections (8 Ohm).
The DQOR® SUB 8 can be used in a wide variety of applications including hospitality, retail, entertainment or corporate applications.
It is available in two colours: black (RAL9005) and white (RAL9016).
- 8" Subwoofer with 10" passive radiator
- Clean, low-profile design with robust aluminium enclosure
- IP55 rated for outdoor use
- 240 W RMS, 400 W peak @ 4 ohms
- Optional surface mount bracket (wall + ceiling) with hinges for easy installation
- Available in black or white
General
| Directivity | Omnidirectional |
|---|---|
| Power handling (Peak) | 400 W |
| Power handling (RMS) | 240 W |
| SPL (1 W/1 m) | 86 dB |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 108 dB |
| Frequency response (-3 dB, rel. Avg) | 43 Hz |
| Impedance | 4 Ω |
| Crossover frequency | 200 Hz |
| Number of inputs | 1 |
| Colour | White |
| RAL code | RAL 9016 |
Bass driver
| Size | 8 " |
|---|---|
| Magnet | Ferrite |
| Voice coil | 2.5 " |
| Passive radiator | 10 " |
Housing
| Cabinet material | Die-cast aluminium, Plastic |
|---|---|
| Front grille material | Aluminium |
Environmental
| Protection class | IP55 |
|---|---|
| Ambient temperature | -30 °C |
| Maximum air humidity (non-condensing) | 85 % |
Dimensions & weight
| Width | 537 mm |
|---|---|
| Height | 303 mm |
| Depth | 205 mm |
| Weight | 13.7 kg |
