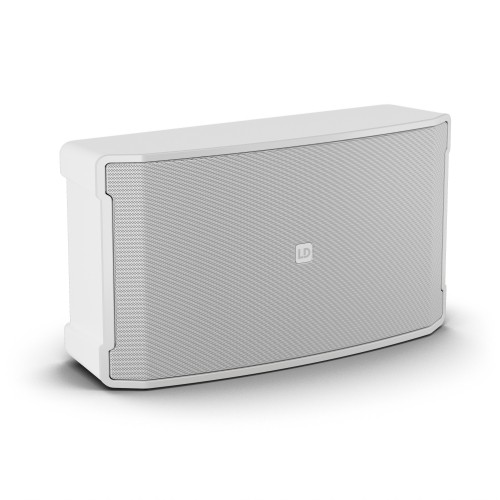

Part of the DQOR® series, the DQOR® SUB 8 D is a powered installation indoor/outdoor subwoofer with an 8" woofer and a 10" passive radiator. With a built in Dante audio connection, it easily connects to any networked audio system and is AES67 compliant for compatibility with thousands of audio devices.
Designed for high performance in a compact form factor, it delivers powerful bass audio with no need for separate amplifier racks.
Uniquely the DQOR® SUB 8 D is the only outdoor rated Dante sub bass loudspeaker available.
The clean and low-profile design ensures the DQOR® SUB 8 D is a sleek addition to any room, combining aesthetics with powerful audio performance. Rated at 190 W RMS and max power of 230 W, it delivers impressive sound quality at up to 108 dB SPL with low frequency extension down to 37 Hz.
The DQOR® SUB 8 D has rubber feet for floor mounting, or it can be easily installed with the optional surface mount bracket, which includes flexible mounting options, holes for clean cable management, locking screws, a safety-locking mechanism, and a hinge mechanism for quick setup.
AC inputs are connected with a 3-pole phoenix contact terminal block with lever push-in connector for reliable and safe connection of the power cables. Terminal block connectors allow for remote standby control.
The DQOR® SUB 8 D can be used in a wide variety of applications both inside and outside including hospitality, retail, entertainment, or corporate settings.
It is available in black or white (RAL9005 & RAL9016).
- 8" Powered Subwoofer with 10" passive radiator
- 190 W RMS subwoofer power
- 2 channel Dante audio connection
- Clean, low-profile design with robust aluminium enclosure
- Optional Surface Mount bracket (wall + ceiling) with hinges for easy installation
- IP55 rated for outdoor use
General
| Directivity | Omnidirectional |
|---|
| Peak output power | 230 W |
|---|
| RMS output power | 190 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| SPL (1 W/1 m) | 86 dB |
|---|
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %) | 110 dB |
|---|
| Max. SPL peak (pink noise, halfspace/1 m, CF 4) | 119 dB |
|---|
| Low frequency limit (-3 dB, rel. Avg.) | 43 Hz |
|---|
| Low frequency limit (-10 dB, rel. Avg.) | 37 Hz |
|---|
| Crossover frequency | 110 Hz |
|---|
| Protection features | Direct current, Overheating, Overvoltage, Undervoltage, Short circuit |
|---|
| Colour | White |
|---|
| RAL code | RAL 9016 |
|---|
Dante®
| Dante® channels (In x Out) | 1 x 0 |
|---|
| Dante® connector type | RJ-45 socket |
|---|
| Max. channels (44.1 kHz/48 kHz) | 2 |
|---|
| Sample rate | 48 kHz |
|---|
| Bit depth | 24 Bit, 32 Bit |
|---|
Signal processing
| Mixer | 0 |
|---|
| AD/DA converter bit depth | 24 Bit |
|---|
| AD/DA converter sampling rate | 48 kHz |
|---|
| Min. Signal-to-noise ratio (SNR) | 96 dB |
|---|
| System latency | 2 ms |
|---|
Amplifier
| Sub output power per channel (RMS) | 190 W |
|---|
| Sub output power per channel (Peak) | 230 W |
|---|
External control
| GPI controllable functions | Standby |
|---|
| GPI input connection socket | Terminal block 2 pin (Euroblock) / 3.81 mm pitch |
|---|
Bass driver
| Size | 8 " |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 2.5 " |
|---|
| Passive radiator | 10 " |
|---|
Mains operation
| Operation voltage | 100 V AC - 240 V AC (±10 %) / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 270 W |
|---|
| Power consumption in idle mode | 18 W |
|---|
| Max. Stand-by power consumption | 2 W |
|---|
| Inrush current | 2.4 A |
|---|
| Mains fuse | T3.15AL/250 V |
|---|
| Fuse replacement | Possible from the outside without opening |
|---|
Standby
| Auto standby after | 20 min |
|---|
| Standby wake up time | 3 s |
|---|
Housing
| Design | Closed with passive radiator |
|---|
| Cabinet material | Die-cast aluminium, Plastic |
|---|
| Front grille material | Aluminium |
|---|
Cooling
| Cooling system | Convection cooling |
|---|
Environmental
| Ambient temperature | -10 °C |
|---|
| Maximum air humidity (non-condensing) | 85 % |
|---|
| Safety Class | Class 1 |
|---|
Dimensions & weight
| Width | 537.4 mm |
|---|
| Height | 304.4 mm |
|---|
| Depth | 208.1 mm |
|---|
| Weight | 15.2 kg |
|---|
