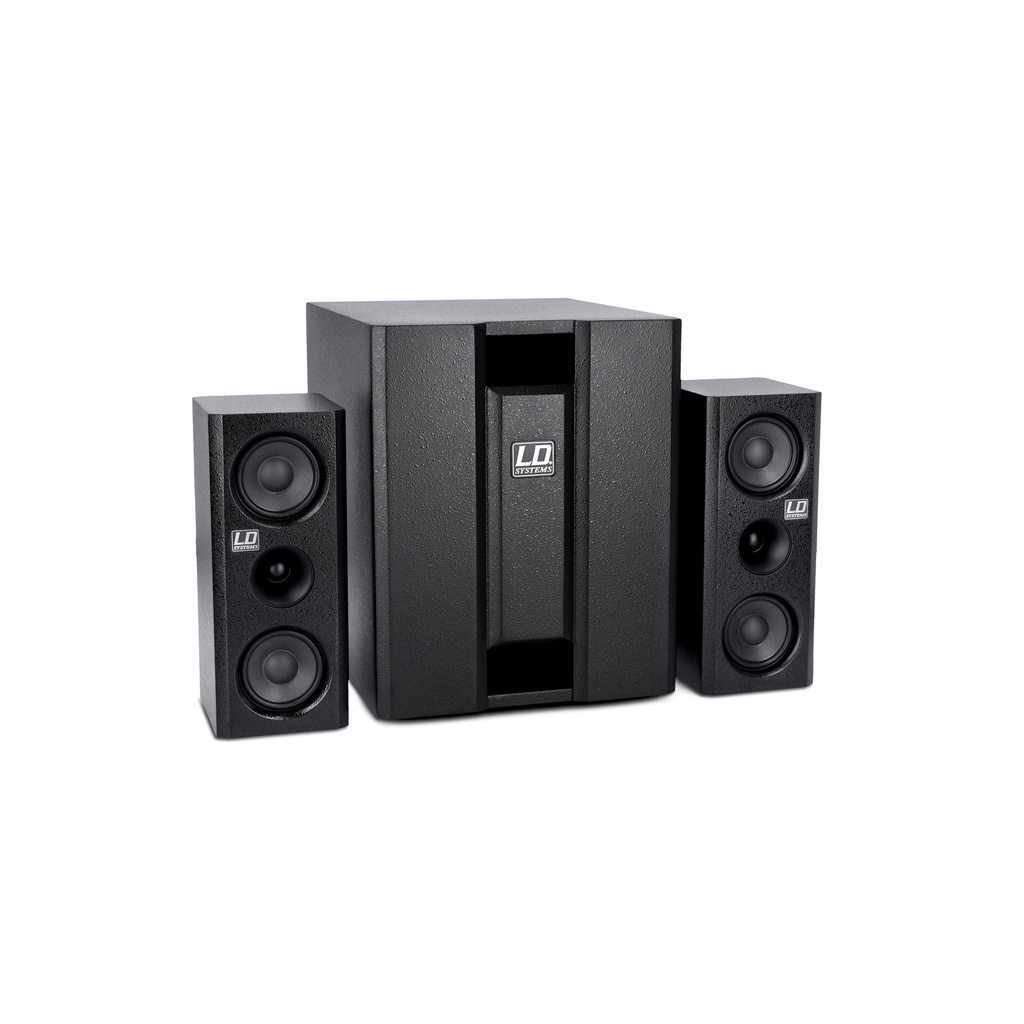

The new LD Systems DAVE 8XS is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer and two satellites (each 4" + 1", with silk dome).
The system provides crystal-clear sound and was specifically designed for multimedia applications such as home PA or gaming; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as bars and cafés. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE 8XS has line inputs in XLR and RCA format and is equipped with all standard protections. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.
From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2.
General
| Type (active/passive) | Active |
|---|---|
| Peak output power | 1400 W |
| RMS output power | 350 W |
| Amp class | Class A/B |
| SysLink® | 0 |
| Max. SPL average | 117 dB |
| Frequency response | 45 Hz |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 2 |
| Input connector types | XLR combo socket |
| Number of outputs | 2 |
| Output connector types | Standard speaker connector 4-pole male & speakON® |
| Protection features | Limiter, Short circuit, Overload |
| Colour | Black |
Inputs
| Number of line inputs | 2 |
|---|---|
| Line-In connector type | XLR combo socket |
Outputs
| Number of speaker outputs | 2 |
|---|---|
| Speaker output connection type | Standard speaker connector 4-pole male & speakON® |
Signal processing
| Mixer | 0 |
|---|
Bass driver
| Size | 8 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Mid range
| Size | 4 " |
|---|---|
| Quantity | 2 |
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Mains operation
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | External switched-mode power supply (SMPS) |
| Mains connector | IEC C14 plug male |
Cooling
| Cooling system | Convection cooling |
|---|
Satellites/columns
| Design | Closed |
|---|---|
| Mounting type | M6 |
| Flange | 16 mm flange |
| Chassis material | Medium-density fibreboard MDF |
| Housing coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
| Width | 144 mm |
| Height | 350 mm |
| Depth | 170 mm |
Subwoofer
| Design | Bandpass |
|---|---|
| Number of handles | 2 |
| Material | Medium-density fibreboard MDF |
| Material thickness | 15 mm |
| Surface coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
| Width | 352 mm |
| Depth | 434 mm |
| Height | 430 mm |
Dimensions & weight
| Weight | 29 kg |
|---|
Other properties
| Included accessories | Mains cable |
|---|
