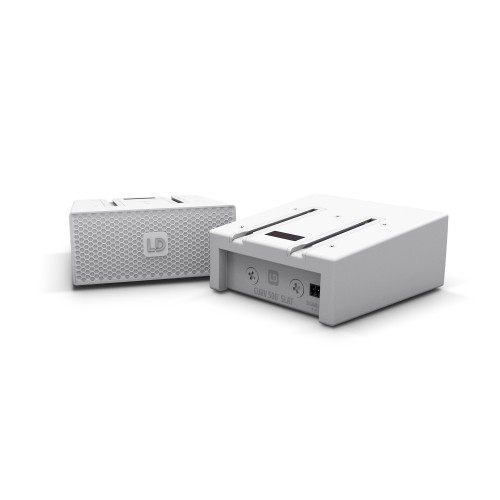

This version of the SmartLink® adapter allows up to 4 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.
- 70 / 100 V SmartLink® adapter for up to 4 LD CURV 500® satellites.
- Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
- 2-pin input for screw connector
- Switchable for 70 or 100 V operation
- Special accessories for mounting on walls and ceilings
General
| Product type | PA Complete Systems Accessories |
|---|---|
| Type | Smartlink® Adapter |
| Material | Die-cast aluminium |
| Surface | Powder coated |
| Connectors | screw-/plug-in terminal 2 pole |
| Color | white |
| Width | 122 mm |
| Height | 57 mm |
| Depth | 122 mm |
| Features | SmartLink® System, 2x M6 thread for optional wall/truss mount, 4 x rubber feet for desktop use |
