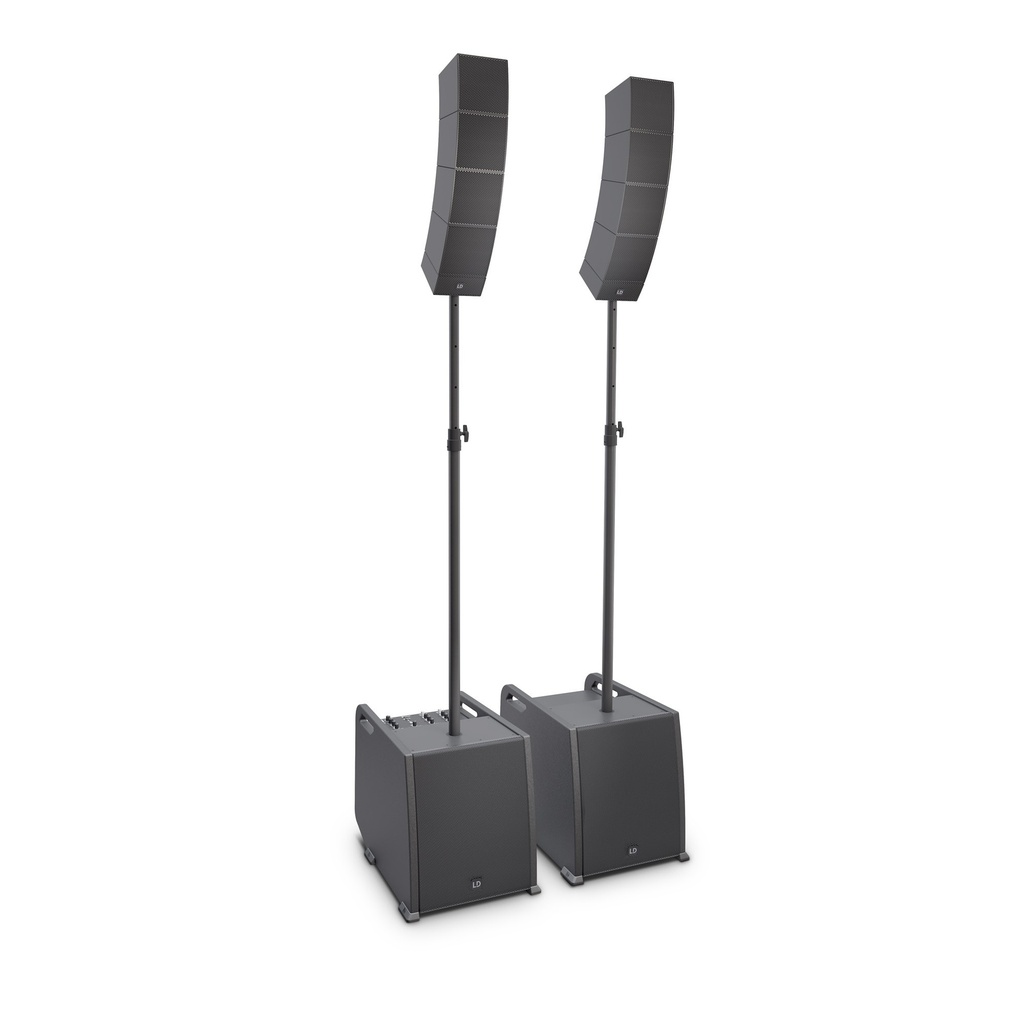

If more power is required, the patented CURV 500® Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500® System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range.
The compact, transport-friendly CURV 500® is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.
The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer.
The CURV 500® Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink® adapters, two extension tubes and matching speaker cables.
- The first truly portable array system
- Fully scalable for far and near field applications
- WaveAhead® technology for high definition audio
- SmartLink® plug & play adapter for universal mounting options
- Built-in 4 channel mixer with DFX and Bluetooth® technology
- Durable lightweight aluminium unibody array elements
- For mobile and fixed applications
General
| Product type | PA Complete Systems |
|---|---|
| System output (RMS) | 920 W |
| Color | Black |
| Number of array satellites | 8 |
| Number of Smartlink adapters | 2 |
| Number of subwoofers | 2 |
| Max. SPL (continuous) | 128 dB |
| Max. SPL (Peak) | 134 dB |
| Frequency response | 47 Hz |
| Dispersion (H x V) | 110° horizontal, vertical (each satellite) 10 ° |
| System Power (RMS) | Subwoofer: 300 W , Array Satellites: 2 x 160 W, Subwoofer Extension 300 W |
| Peak power | Subwoofer: 1200 W , Array Satellites: 2 x 640, Subwoofer Extension: 1200 W |
| Amplifier | Class D |
| Protection circuits | DSP-based multiband limiter |
| Accessories (included) | 5-pin XLR system cable (10 m), 2 x Power cable, 2 x Speaker cable CURV 500 CABLE 1 (2.2 m), 2 x Distance bar |
Subwoofer
| Low/mid Woofer dimensions | 10 Inch |
|---|---|
| Woofer dimensions (mm) | 254 mm |
| Cabinet construction | Bass Reflex |
| Cabinet material | plywood |
| Cabinet surface | PA painting |
| Dimensions Subwoofer (W x H x D) | 325 x 383 x 491 mm |
| Subwoofer weight | 16.5 kg |
| Subwoofer features | 3 ergonomic handels, Bluetooth, 4 System DSP Presets, 16 DFX Presets, 4 channel mixer, Threaded flange M20 |
Array Satellites
| Mid/Hi system | MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms |
|---|---|
| Array Satellite Features | internal crossover, metal grille, WaveAhead® Technology |
| Array Satellite Material | Die-cast aluminium |
| Array Satellite Surface: | Powder coated |
| Array Satellite Dimensions (W x H x D) | 122 x 122 x 122 mm |
| Array Satellite Weight | 1.7 kg |
Smartlink® Adapter
| Smartlink Adapter Features | 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount |
|---|---|
| Smartlink Adapter Connectors | 1 x Speakon-compatible, 1x Phoenix |
| Smartlink Adapter Material | Die-cast aluminium |
| Smartlink Adapter Surface | Powder coated |
| Smartlink Adapter Dimensions (W x H x D) | 122 x 57 x 122 mm |
| Smartlink Adapter Weight | 0.6 kg |
