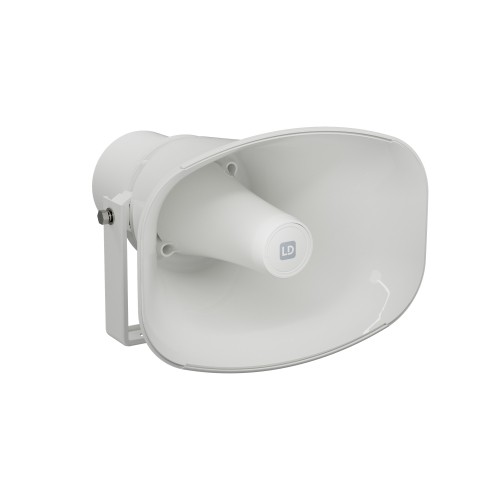

Combining high sound output with durable construction the CE H30 horn loudspeaker delivers intelligible speech over long distances.
Made of ABS, it is fully IP66 weatherproofed with high impact resistance for the most demanding outdoor environments. It's fitted with a 180-degree swivel U-bracket for easy mounting. With a power rating of 30W and a frequency response of 420Hz - 6kHz, it projects sound with ease.
- 30W rated power
- 8 Ohm, 70V and 100V line
- 3.75, 7.5, 15 and 30W power taps
- IP66 weatherproof
- Built in mounting bracket
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (RMS) | 30 W |
| SPL (1 W/1 m) | 113 dB |
| Frequency response | 420 Hz |
| Power tappings (100 V) | 30 W, 15 W, 7.5 W, 3.75 W |
| Power tappings (70 V) | 30 W, 15 W, 7.5 W, 3.75 W, 1.9 W |
| Impedance | 8 Ω |
| Colour | White |
Housing
| Design | Closed |
|---|---|
| Mounting type | Wall and ceiling bracket |
| Cabinet material | ABS |
Environmental
| Protection class | IP66 |
|---|---|
| Ambient temperature | -25 °C |
Dimensions & weight
| Width | 205 mm |
|---|---|
| Height | 280 mm |
| Depth | 285 mm |
| Weight | 2.21 kg |
Other properties
| Included accessories | Fastening material, Mounting bracket |
|---|
