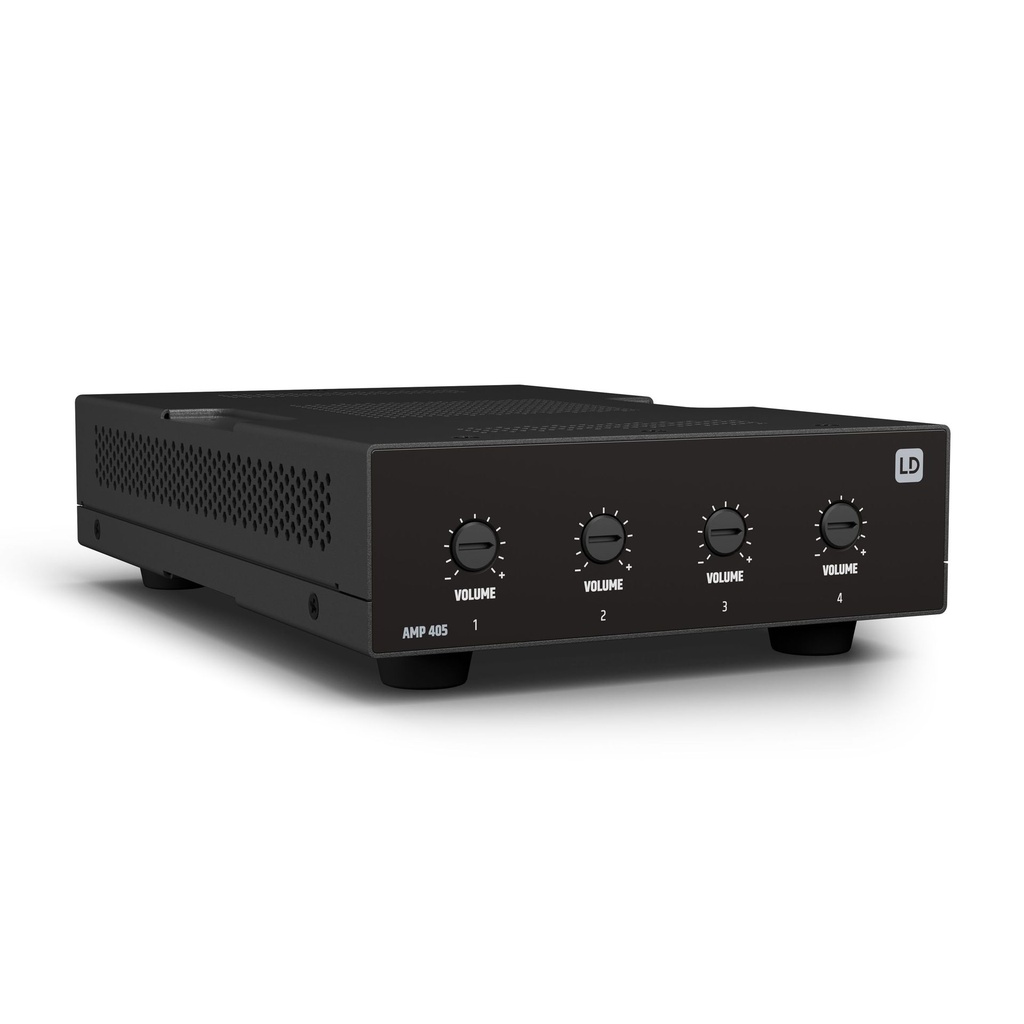

Part of the TICA® series, AMP405 combines compact size, passive cooling, and high efficiency – ideal for a wide range of audio installation applications.
The highly efficient four-channel 50 W Class-D amplifier can drive low-impedance loudspeakers in different zones.
Its tiny 142 × 44 × 222 form factor and included mounting plates allow it to be installed discreetly almost anywhere: behind screens, under tables, or even in air-handling spaces and above plenum ceilings. Alternatively, it fits into a 1/3 19″ rack. Use the optional rack tray to slot up to three TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

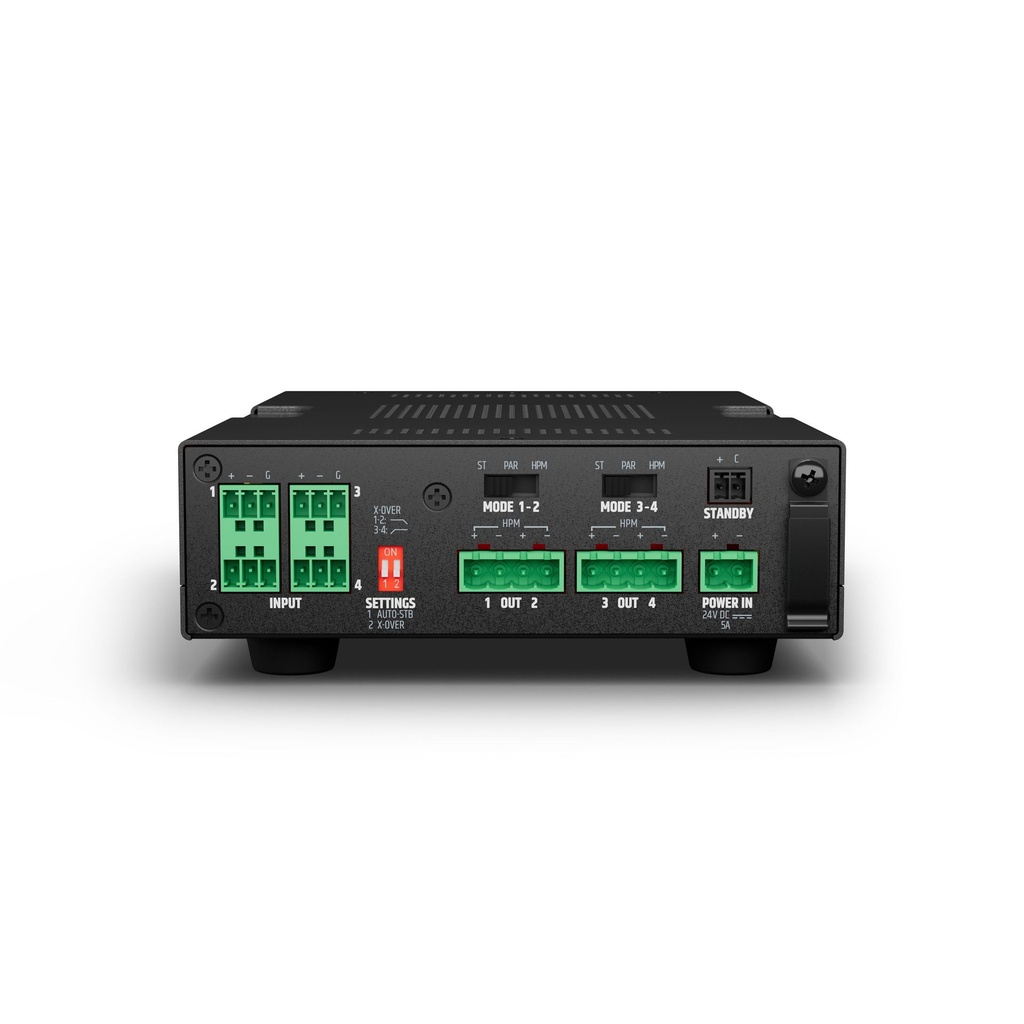

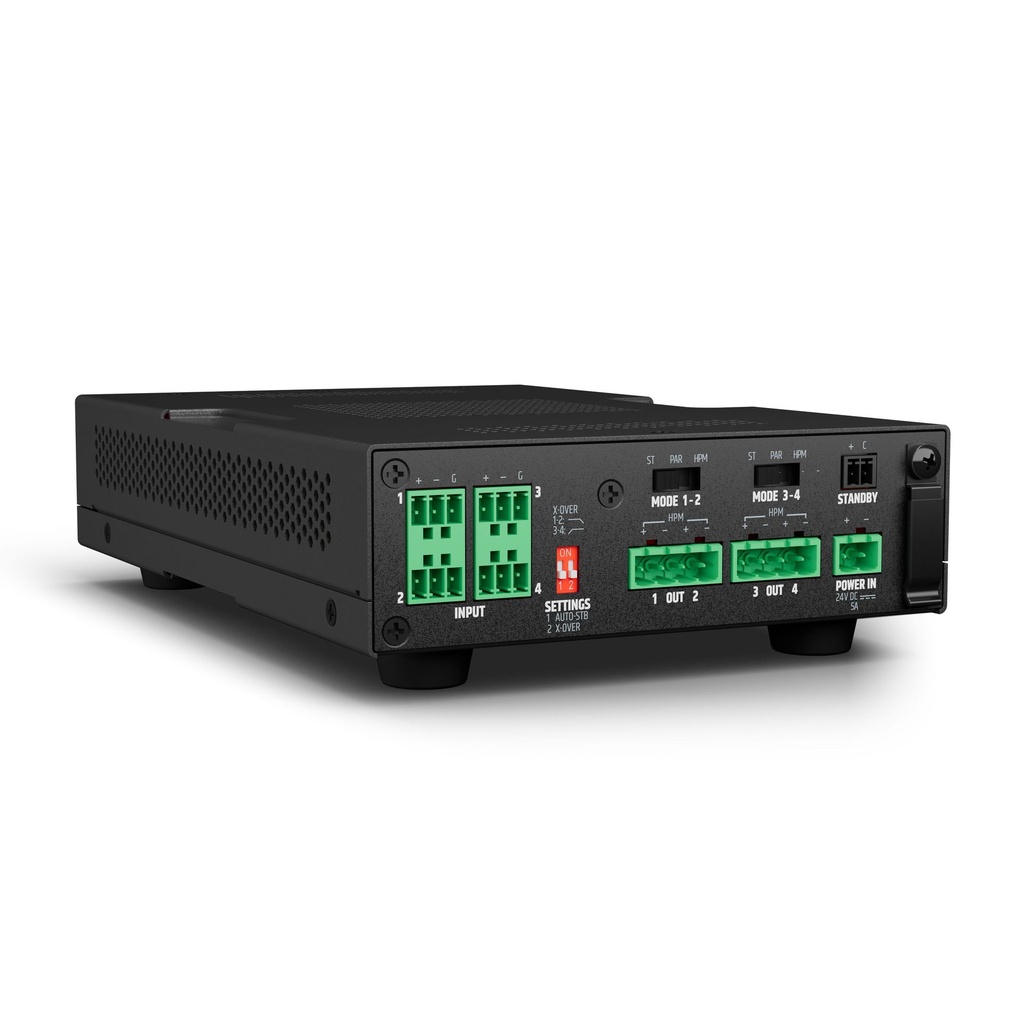

Terminal strip connections on the balanced line input and speaker output make wiring easy.
With remote-control connectivity to put the power amplifier into standby mode at any time, even when it’s hidden. Optional auto-standby saves power when no audio is running.
The perfect solution for professional installers and users looking for a compact, highly efficient, and easy-to-integrate solution.
- Professional mini amplifier
- 4 × 50 W Class-D amplifier 4 Ohm
- Small form factor 1/3 19″ rack, 1U
- Silent operation with passive cooling
- Connect to third-party control for remote standby
- External 100–240 V power supply
- Run in four-channel mode or bridge for two channels @ 100 W in high-power mode
- Mounting plates for flexible and inconspicuous installation, even above suspended ceilings
- Auto-standby to save power
- Four balanced line inputs with parallel input option
- Four loudspeaker outputs with terminal strips

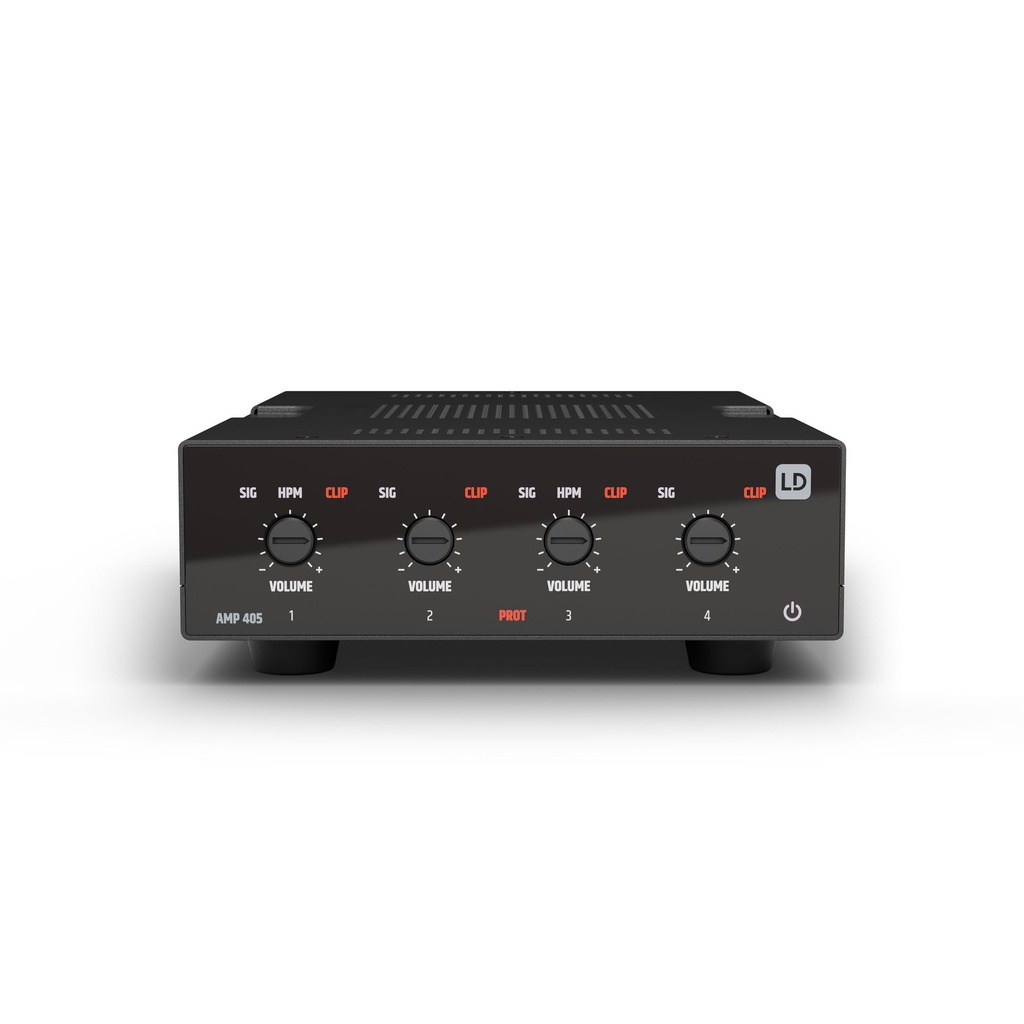

- User-friendly front panel with signal, clip, and protection LEDs
- Optional rack tray for combining with other TICA® series products
General
| Peak output power | 220 W |
|---|
| RMS output power | 200 W |
|---|
| Amp class | Class D |
|---|
| Frequency response (±0.5 dB, rel. Avg) | 20 Hz |
|---|
| Crossover frequency | 125 Hz |
|---|
| Protection features | Overheating, Short circuit, Direct current, Overvoltage, Undervoltage |
|---|
Bluetooth®
| Receiver (client) | 0 |
|---|
| Transmitter (host) | 0 |
|---|
Inputs
| Number of line inputs | 4 |
|---|
| Line-In connector type | Terminal block 3 pin (Euroblock) / 3.81 mm pitch |
|---|
Line input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain) | 0 dBu |
|---|
| Nom. input clipping, balanced (< 1% THD, 1 kHz, unity) | 18 dBu |
|---|
| Input impedance (balanced) | 12 kΩ |
|---|
Outputs
| Number of speaker outputs | 2 |
|---|
| Speaker output connection type | Terminal block 4 pin (Euroblock) / 5.08 mm pitch |
|---|
Signal processing
| AD/DA converter bit depth | 24 Bit |
|---|
| AD/DA converter sampling rate | 48 kHz |
|---|
| Min. Signal-to-noise ratio (SNR) | 100 dB |
|---|
| System latency | 2 ms |
|---|
| Measuring conditions, unless otherwise specified | 600 Ω generator source impedance (including open inputs) and 1 kΩ balanced load. |
|---|
Mains operation
| Operation voltage | 100 V AC - 240 V AC (±10 %) / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 230 W |
|---|
| Mains connector | Terminal block 2 pin (Euroblock) / 5.08 mm pitch |
|---|
Standby
| Auto standby after | 20 min |
|---|
| Wake-up threshold | -33 dBFS |
|---|
Housing
| Cabinet material | Steel |
|---|
| Colour | Black |
|---|
| Front panel material | Plastic |
|---|
Environmental
| Ambient temperature | 0 °C |
|---|
| Maximum air humidity (non-condensing) | 85 % |
|---|
Dimensions & weight
| Width | 142 mm |
|---|
| Height | 53 mm |
|---|
| Depth | 221.7 mm |
|---|
| Rack width | 6.3" (1/3 of 19") |
|---|
| Rack height | 1 U |
|---|
| Installation depth | 221.7 mm |
|---|
| Weight | 1.2 kg |
|---|
Other properties
| Included accessories | Rubber feet, Mounting plate |
|---|
