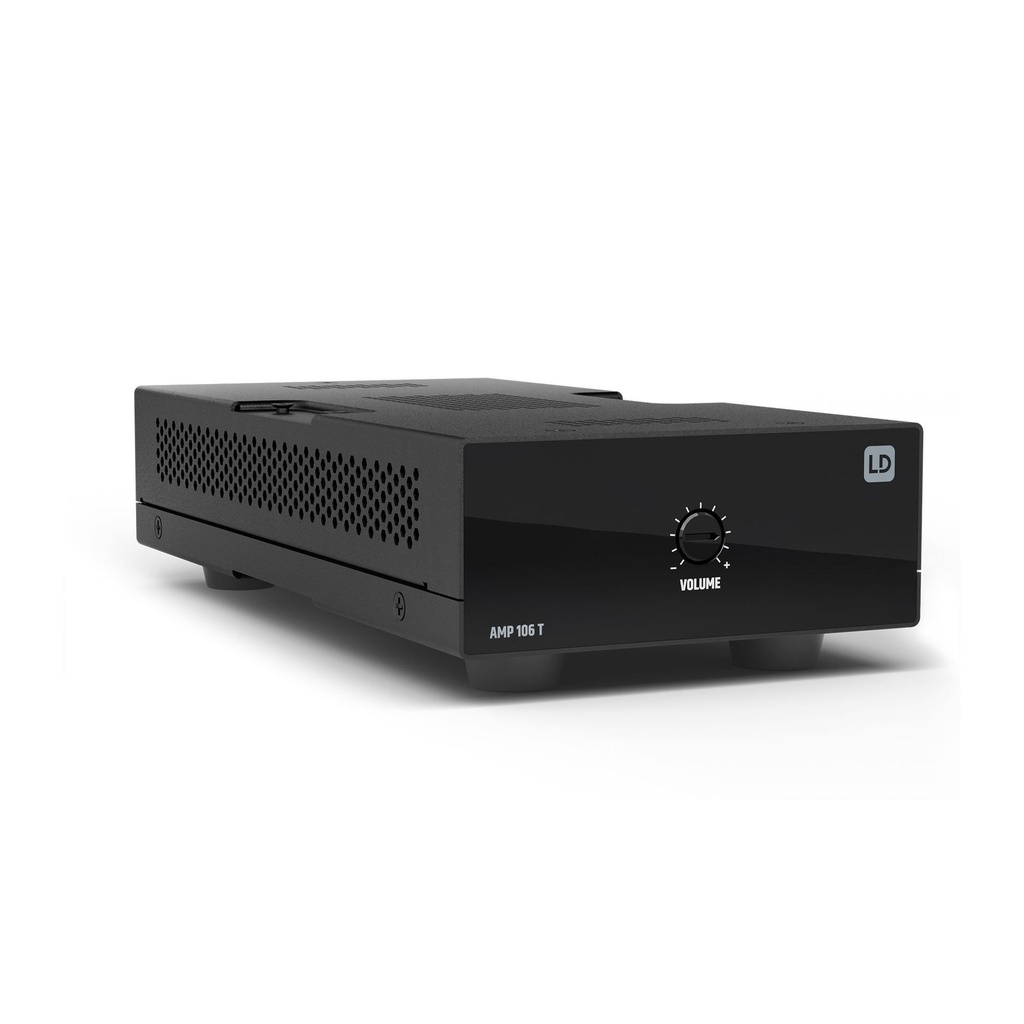

Part of the TICA® series, AMP106T it combines of compact size, passive cooling, and high efficiency – ideal for a wide range of audio installation applications.
The 60W Class-D amplifier, can drive low impedance or 70/100V line loudspeaker systems.
Its tiny form factor (120 x 44 x 222mm) and included mounting plates allow it to be installed discreetly behind screens or under tables. Alternatively, it fits into ¼ 19 inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

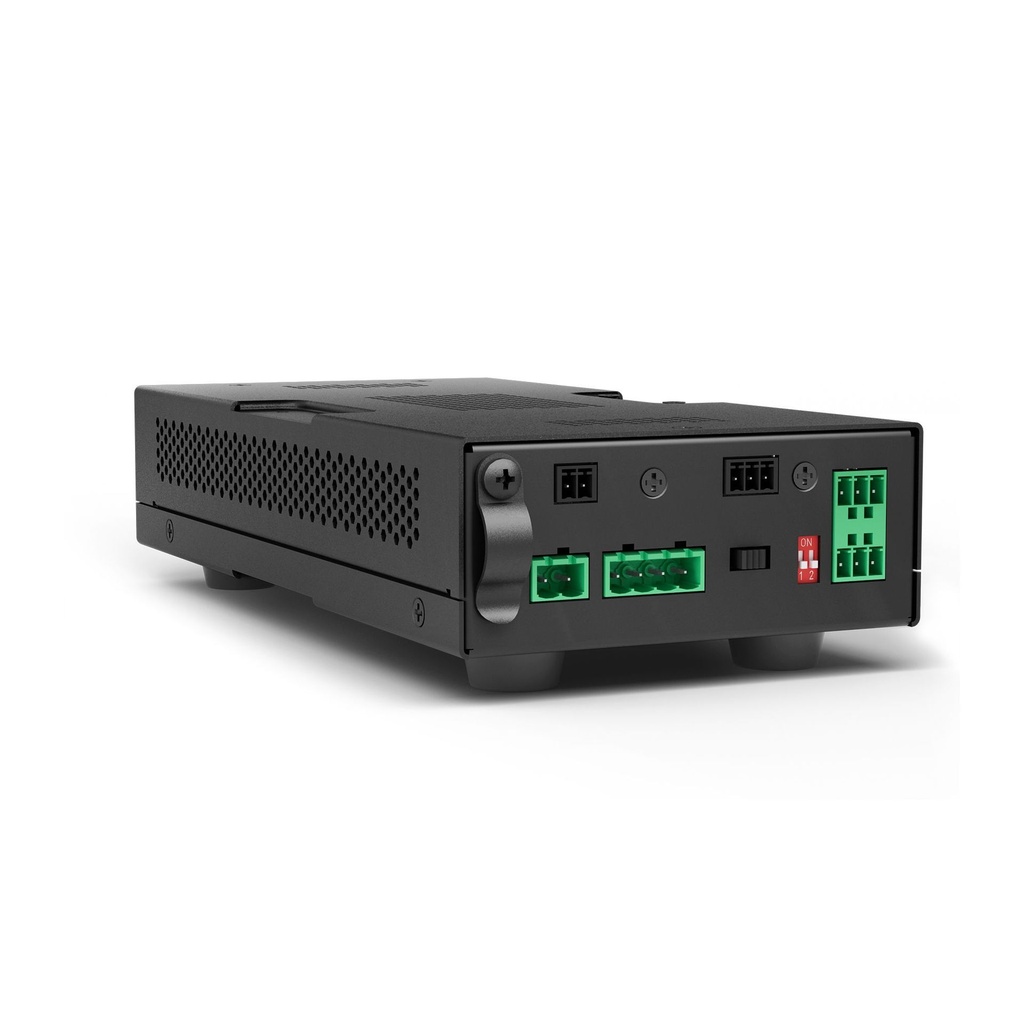

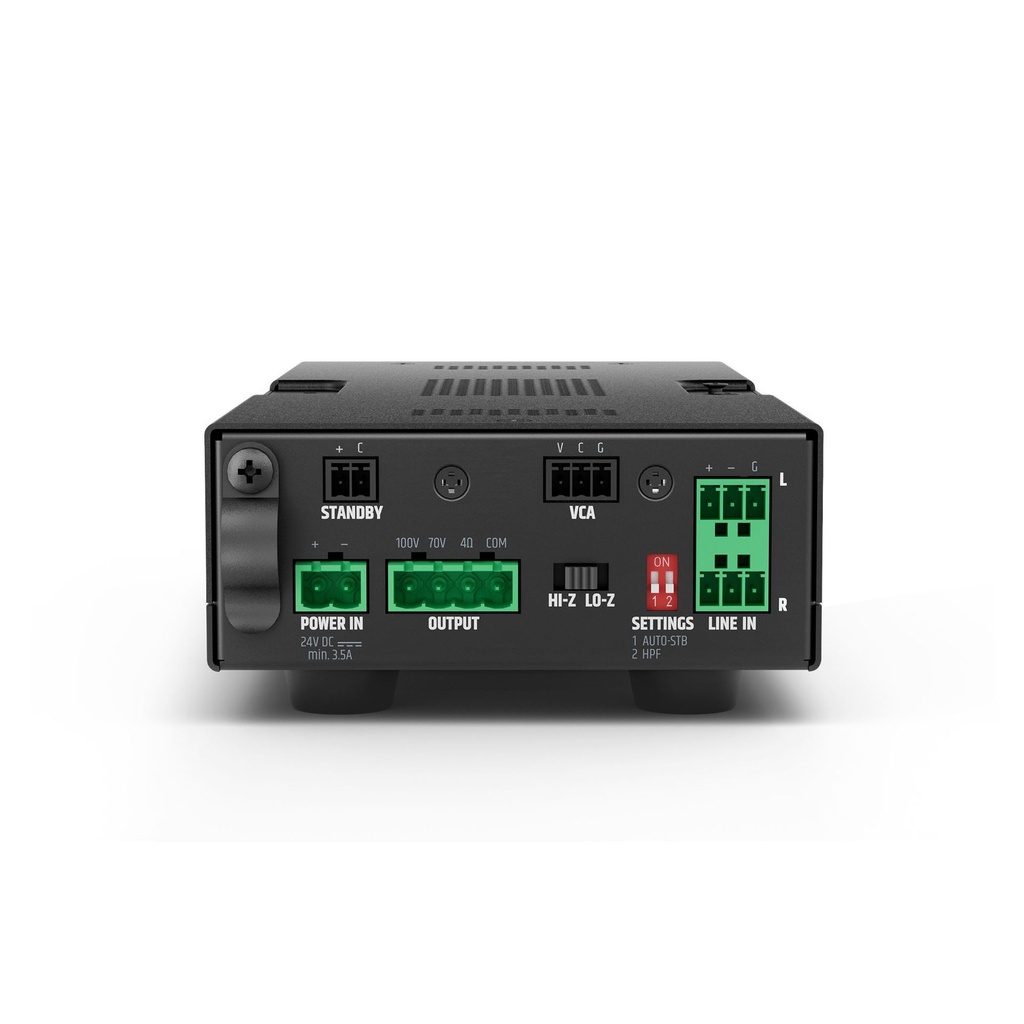

Terminal strip connections on the balanced line input and speaker output make wiring easy.
With remote control connectivity for third-party devices, you can adjust volume or put the power amplifier into standby mode at any time, even when it's hidden. Optional auto-standby saves power when no audio is running.
The perfect solution for professional installers and users looking for a compact, highly efficient and easy-to-integrate solution.
- Professional mini amplifier
- 60W Class-D amplifier with Lo-Z / Hi-Z selector switch between 4 Ohm / 100V / 70V outputs
- Small format 1/4 19" rack, 1U
- Silent operation with passive cooling
- Third-party connectivity for remote standby and volume control
- External 100 - 200V power supply
- Mounting plates for flexible inconspicuous installation, even above suspended ceilings
- Auto standby to save power
- Balanced line input and loudspeaker output with terminal strips

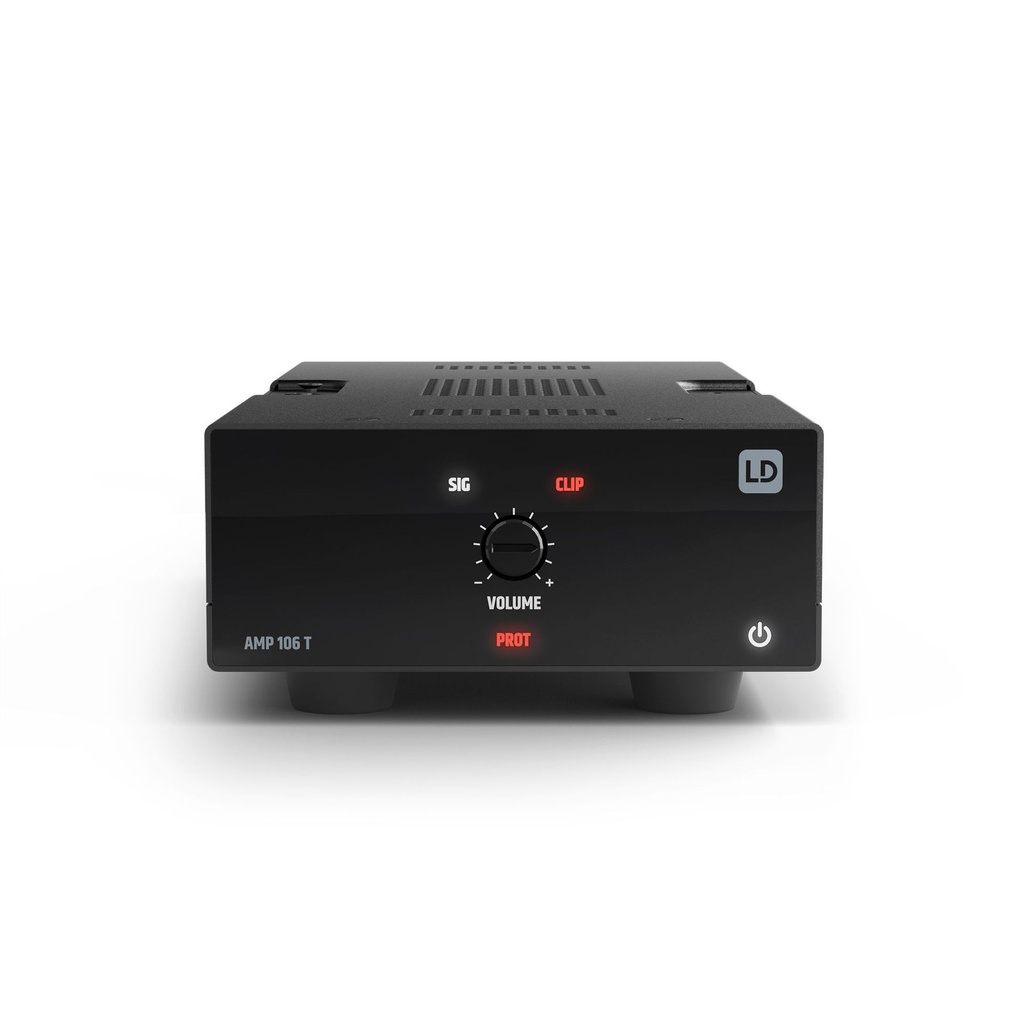

- User-friendly front panel with signal, clip and protection LEDs
- Optional rack tray for combining with other TICA® series products
General
| Product type | Installation power amplifier |
|---|---|
| Line inputs | 2 |
| Music sources | 2 balanced stereo line inputs |
| Line outputs | 0 |
| Powered outputs | 1 with output mode selector (Low-Z/High-Z) |
| Cooling | Convection |
| Priority levels | 1 |
Input area
| Nominal input sensitivity | 8.5 dBu (Sine 1 kHz, Gain max) |
|---|---|
| Nominal input clipping | 18 dBu (Sine 1kHz, Gain 0dB) |
| Input Connector | 2 x 3.81mm Terminal Block 3-pin |
| Standby wake up threshold | - 30 dBu |
Amplifier Output
| Type | Class D |
|---|---|
| Amplifier Outputs | High-Z: 70V or 100V outputs, Low-Z: 4 ohm minimum load |
| Connector | 4 - pin terminal block (pitch 5.08mm) |
| RMS Power ( W ) | 60 W (Continuous sine wave 1kHz, 4 ohm load) |
| Power ( Peak ) (W) | 72 W (100 msec sine 1kHz Burst @ 4 ohm load) |
| Frequency range | 15 Hz - 20 kHz (LO-Z, -1 dB), 20 Hz - 20 kHz (HI-Z, -1 dB) |
| High Pass Filter | 110 Hz |
| Protection circuits | Undervoltage, DC protection, thermal overload, Short circuit, over-current, DC |
Power Supply
| Type1 | External SMPS |
|---|---|
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Secondary connector | Terminal Block 5.08mm 2-pole |
| Primary Connector | IEC |
| Idle power consumption | 2 W (no signal input) |
| Standby power consuption | < 1 W |
| Operating temperature ( non-condensing ) | 0°C - 40°C; < 85% humidity, non condensing |
General data
| Time to Auto-standby | 20 Min. |
|---|---|
| Dimensions (W x H x D) ( height with rubber feet ) | 142 mm x 53 mm x 222 mm |
| Accessories | Rack mounting hardware |
