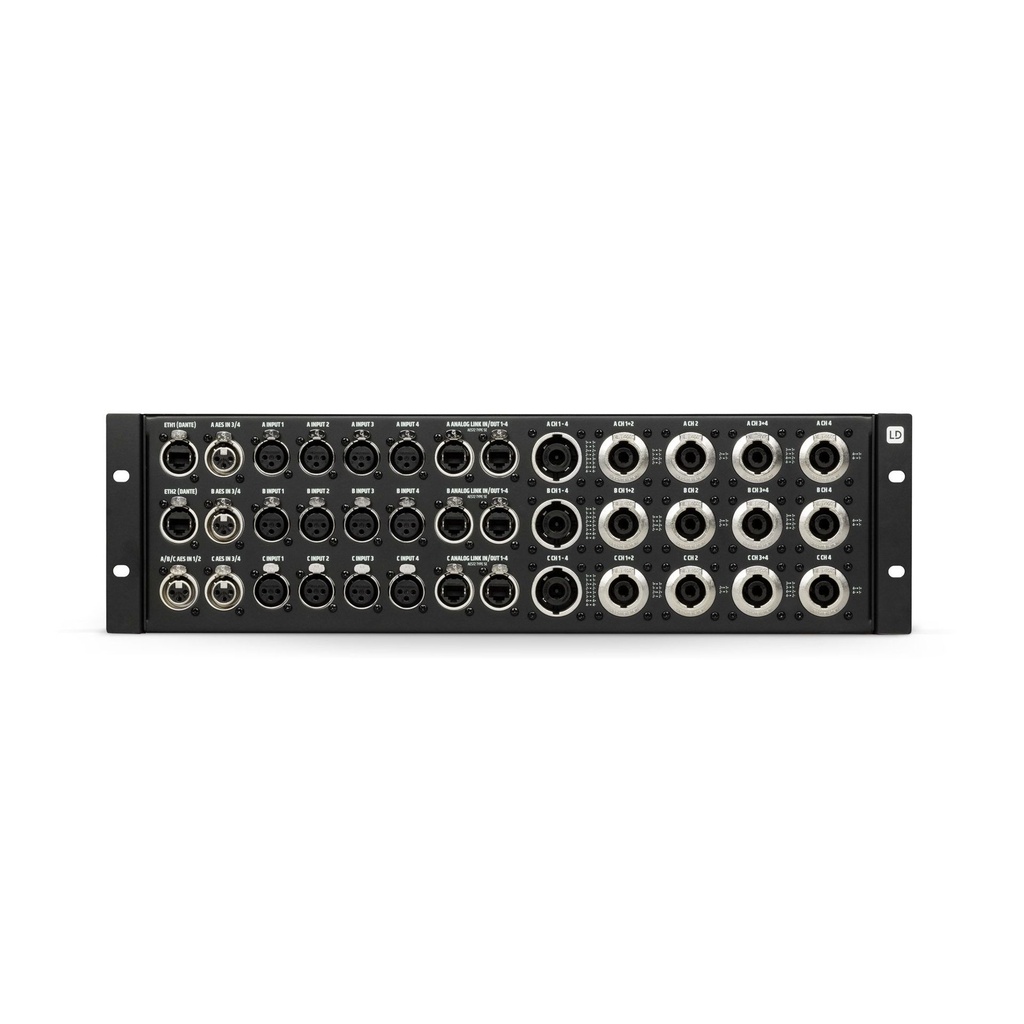

The ADA TPP is a 3U, 19" front I/O patch panel for rack systems with up to three ADA 12K4 / ADA 8K4 amplifiers. Its clear, tour-proof layout enables fast and reliable wiring via premium Neutrik® connectors:
- Loudspeaker outputs: 3 × SpeakON NL8, 12 × SpeakON NL4
- Inputs: 12 × XLR analog, 4 × AES3 digital
- Link: 6 × AES72 RJ-45 for AoC routing
- Network: 2 × Ethernet RJ-45 (Dante®)

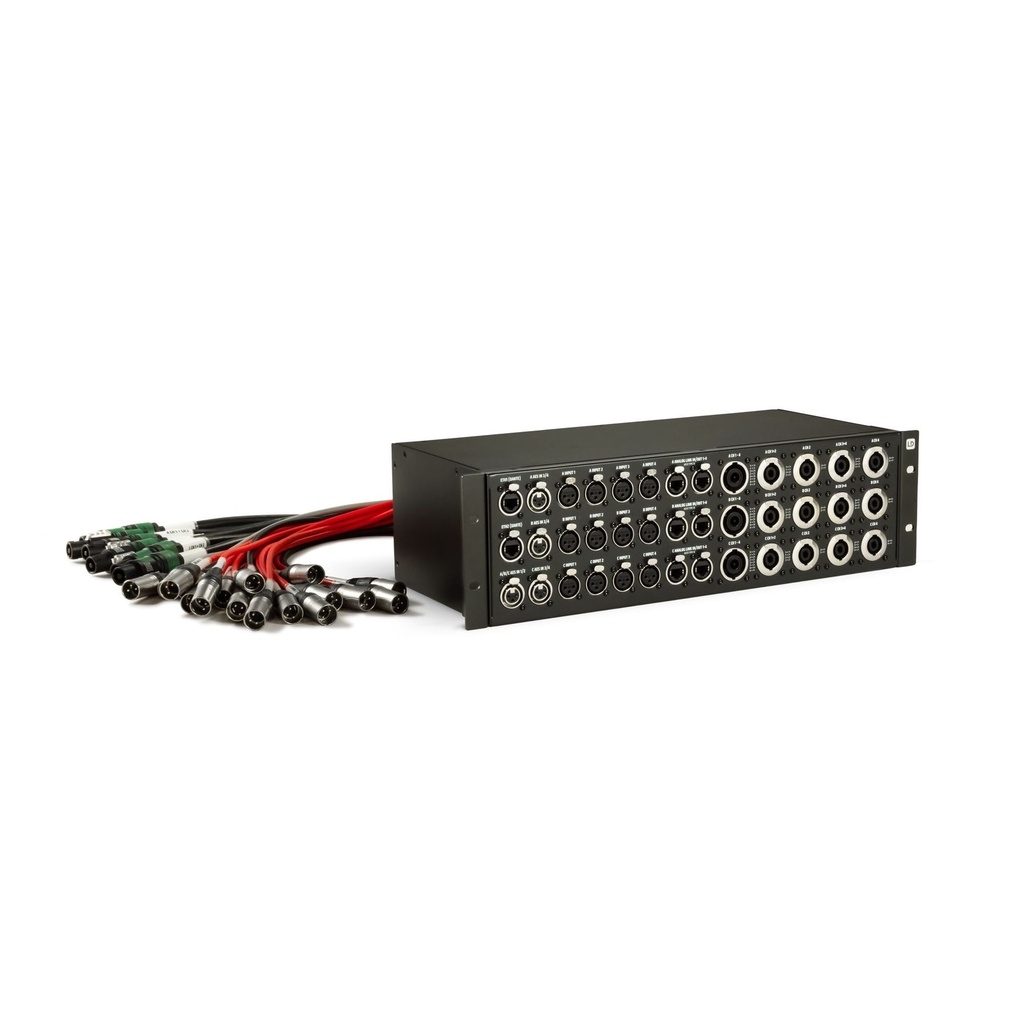

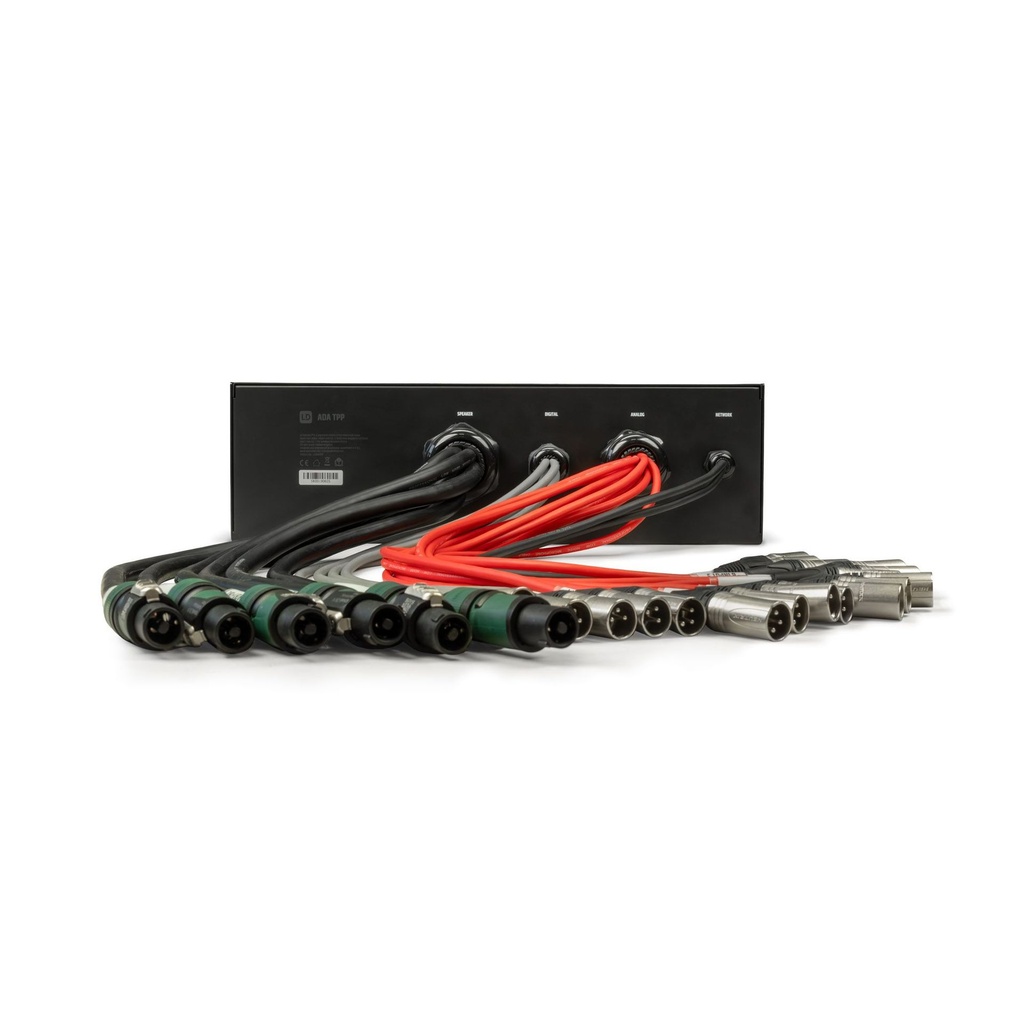

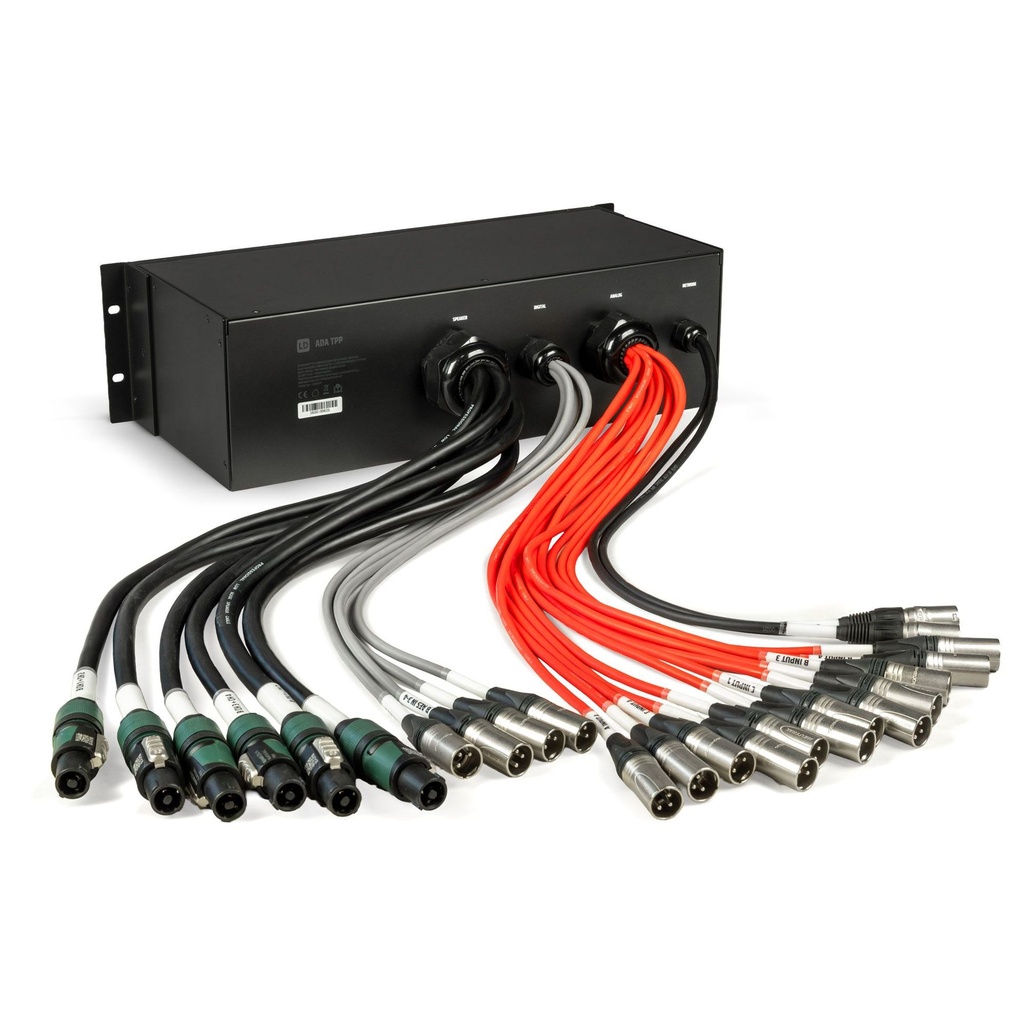

A pre-terminated rear wiring loom (fan-out) enables direct internal rack wiring to the amplifiers.
- Patch panel for 3 × ADA 12 K4 / ADA 8 K4
- Clear layout and labeling for fast, reliable wiring
- Loudspeaker outputs: 3 × SpeakON NL8 and 12 × SpeakON NL4
- Inputs: 12 × XLR analogue, 4 × AES3 digital
- Link: 12 × Analogue via 6 × RJ-45 for Audio over Cat (AoC)
- Network: 2 × Ethernet RJ-45 (Dante®)
- Premium Neutrik® connectors
General
| Material | Steel |
|---|---|
| Colour | Black |
Front panel connectors
| XLR 3-pole female (analog in) | 12 |
|---|---|
| XLR 3-pole female (AES3 in) | 4 |
| RJ-45 (AES72) | 6 |
| RJ-45 Ethernet (Dante®/AES67) | 2 |
| speakON® 4-pole male | 12 |
| speakON® 8-pole male | 3 |
Dimensions & weight
| Width | 480 mm |
|---|---|
| Height | 132.5 mm |
| Depth | 249 mm |
| Rack width | 19" |
| Rack height | 3 U |
| Installation depth | 244 mm |
| Weight | 8.52 kg |
