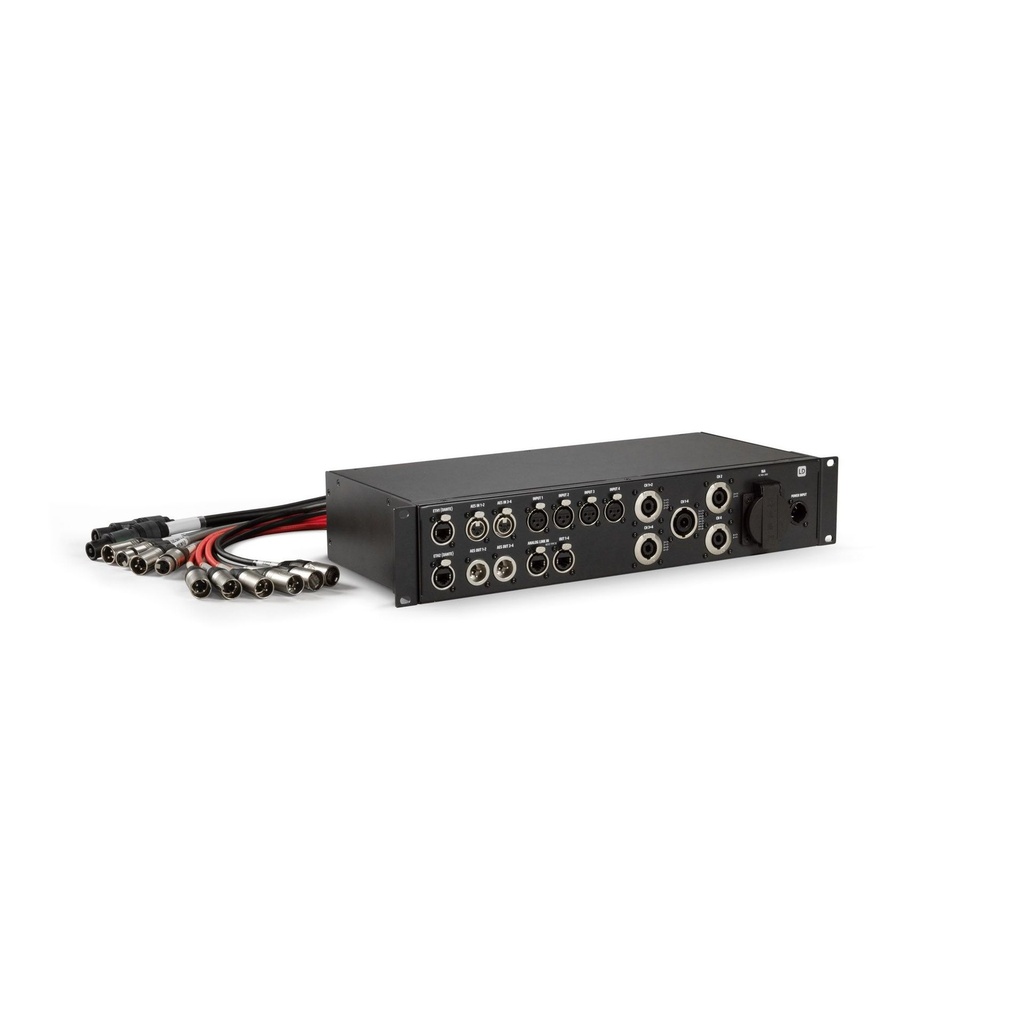

The ADA SPP is a 2U, 19" front I/O patch panel for rack systems with ADA 12K4 or ADA 8K4 amplifier. Its clear, tour-proof layout enables fast and reliable wiring via premium Neutrik® connectors:
- Loudspeaker outputs: 1 × SpeakON NL8 and 4 × SpeakON NL4
- Inputs: 4 × XLR analogue, 4 × AES3 digital
- Link: 4 × Analogue via 2 × RJ-45 for Audio over Cat (AoC)
- Network: 2 × Ethernet RJ-45 (Dante®)

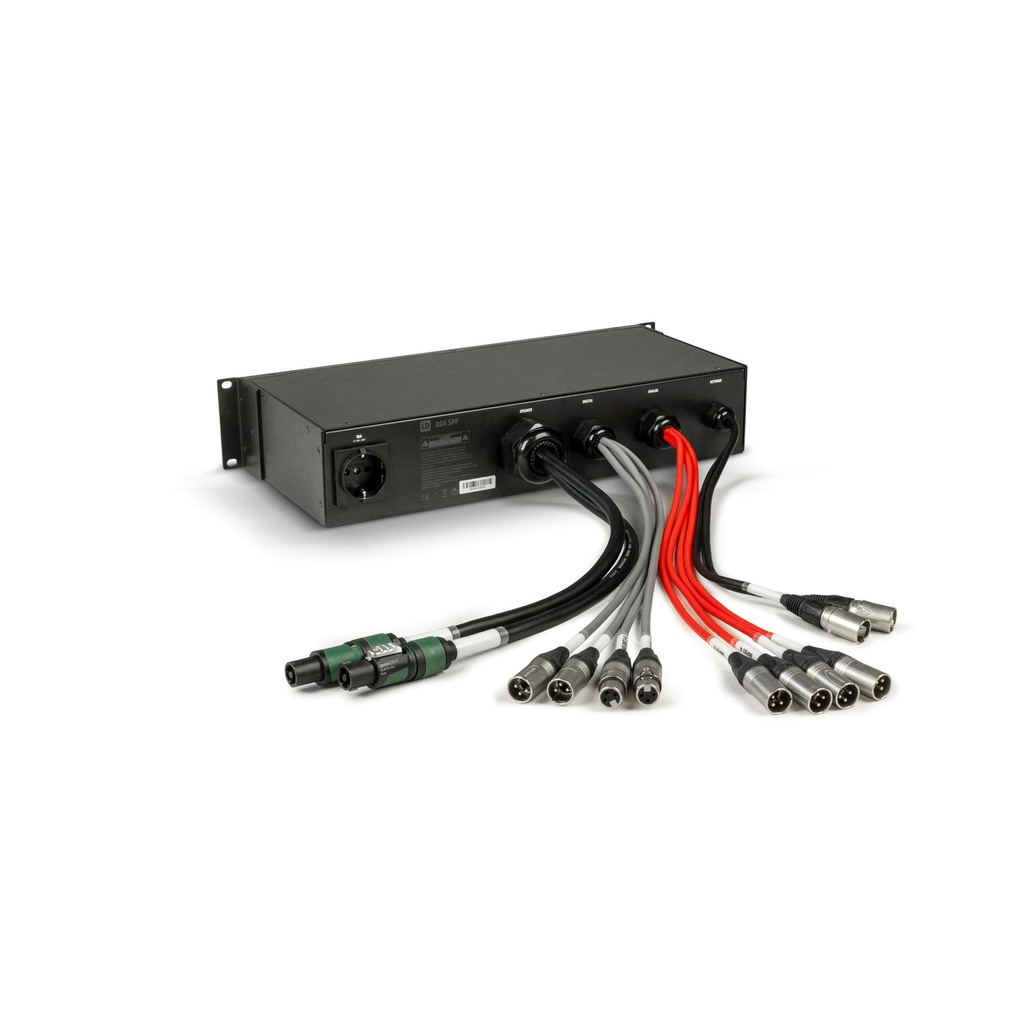

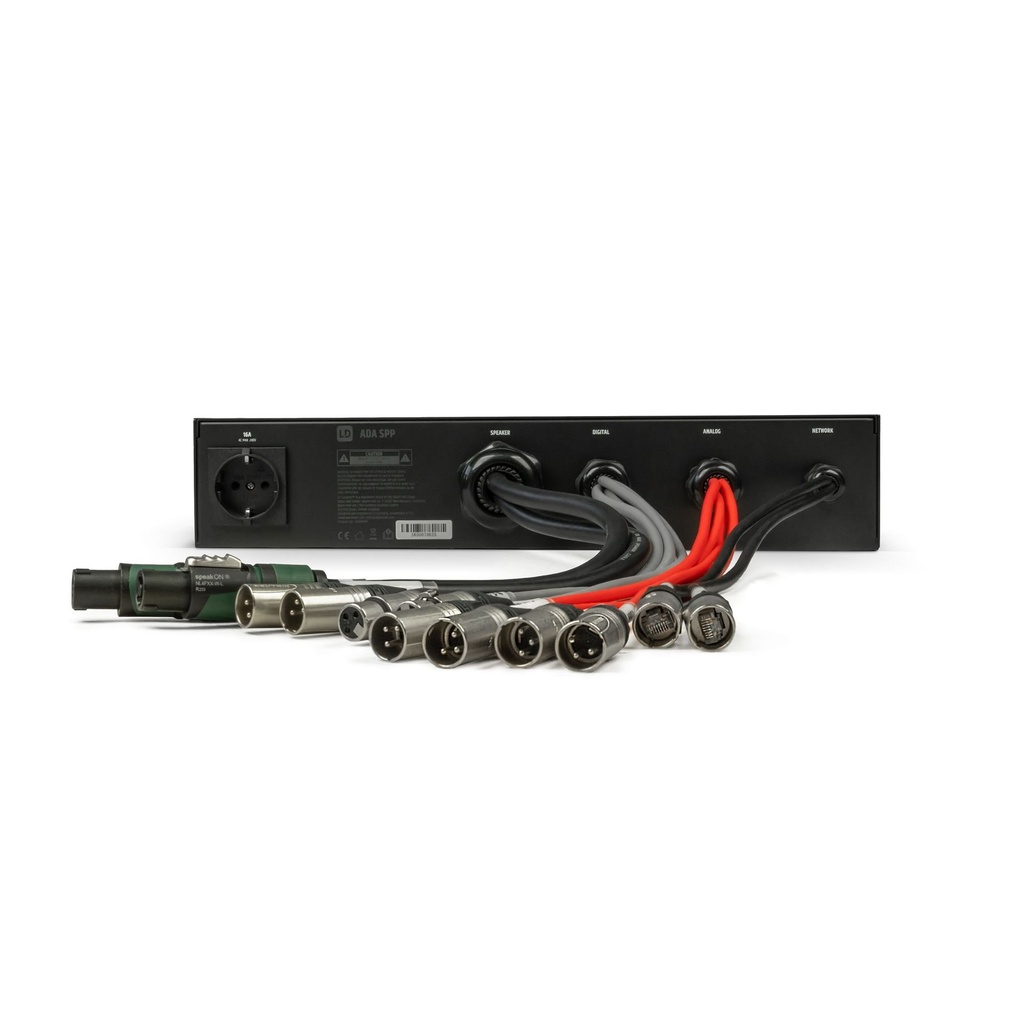

A pre-terminated rear wiring loom (fan-out) enables direct internal rack wiring to the amplifiers.
- Patch panel for ADA 12 K4 or ADA 8 K4
- Clear layout and labeling for fast, reliable wiring
- Loudspeaker outputs: 1 × SpeakON NL8, 4 × SpeakON NL4
- Inputs: 4 × XLR analogue, 4 × AES3 digital
- Link: 4 × Analogue via 2 × RJ-45 for Audio over Cat (AoC)
- Network: 2 × Ethernet RJ-45 (Dante®)
- Mains in: 1 × PowerCON TRUE1
- Premium Neutrik® connectors
General
| Material | Steel |
|---|---|
| Colour | Black |

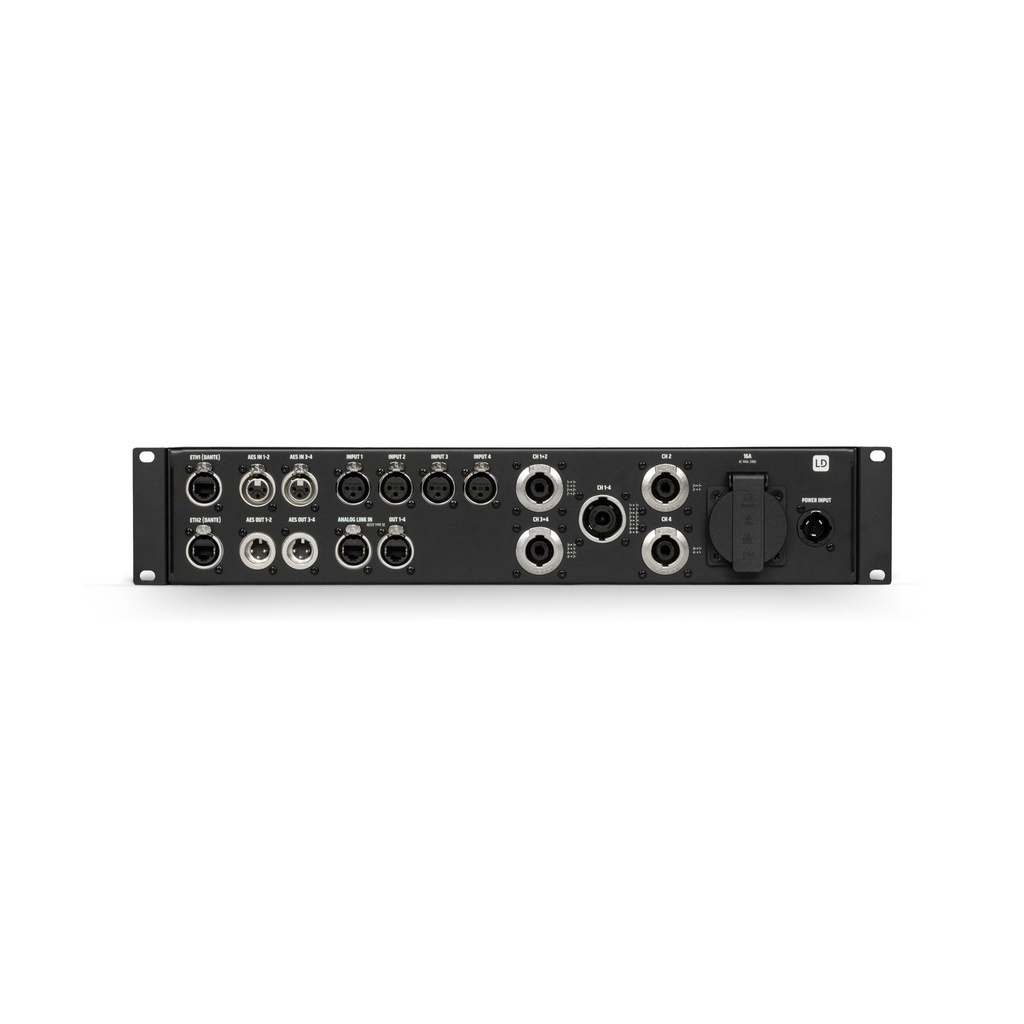

Front panel connectors
| XLR 3-pole female (analog in) | 4 |
|---|---|
| XLR 3-pole female (AES3 in) | 4 |
| RJ-45 (AES72) | 2 |
| RJ-45 Ethernet (Dante®/AES67) | 2 |
| speakON® 4-pole male | 4 |
| speakON® 8-pole male | 1 |
| Mains input connector type | Mains plug device outdoor female & TRUE1® |
Dimensions & weight
| Width | 480 mm |
|---|---|
| Height | 88 mm |
| Depth | 249 mm |
| Rack width | 19" |
| Rack height | 2 U |
| Installation depth | 235 mm |
| Weight | 5.75 kg |
