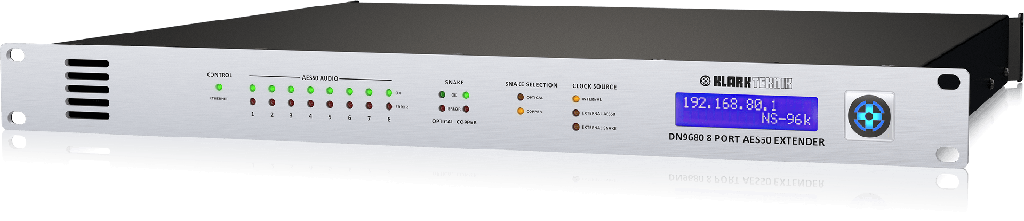

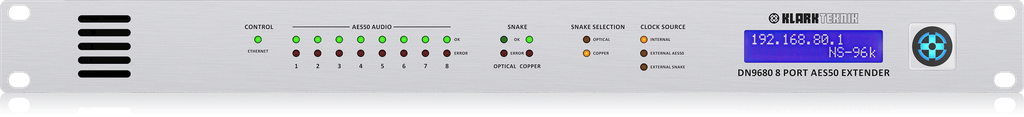

Klark Teknik DN9680

The Klark Teknik DN9680 is an 8 port AES50 extender and multiplexer that overcomes the 100 metre limit of CAT5 cabling in AES50 networks. A pair of DN9680 units extends up to eight AES50 connections (192 bidirectional channels) by up to 1,000 metres over single mode optical fibre, or 100 metres over CAT5 copper cable, using a single bidirectional snake cable. An on-board web server allows configuration from a web browser.

• Multiplexes up to 8 AES50 connections into one optical fibre or CAT5 cable
• 192 bidirectional channels at 96 kHz
• Internal "AES Grade 1" temperature-compensated word clock (1 ppm)

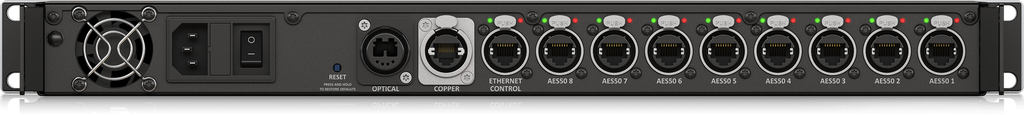

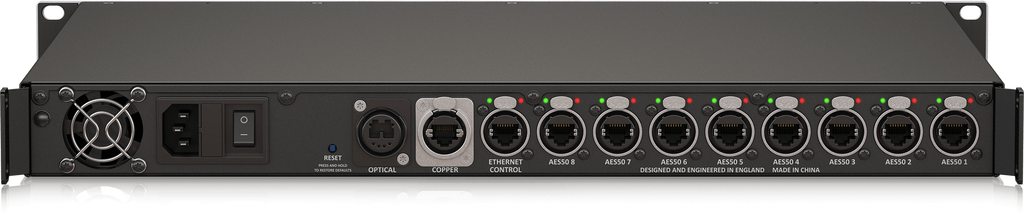

• RJ-45 connectors for AES50 ports and copper snake, dual-fibre optical connector for fibre snake
• 1U rackmount chassis with auto-ranging universal switch-mode power supply
