Equalizer
Key features
- The professional 31-band stereo graphic equalizer is suitable for studio recording and live performances.
- Frequency of mono sub-woofer output can be adjusted.
- The switchable high-cut filter and low-cut filter of each channel can eliminate annoying noise, such as local noise and tape hiss.
- The input and output level displays which consist of 12 LED diodes are very accurate. And the input port supports gain control, which is convenient for users to control level appropriately.
- Operable amplifier with very low noise makes the timbre beautiful.
- Equipped with servo balanced input and output ports of gilded XLR interface and stereo 6.3mm socket.
- Shielded circular iron core power transformer can minimize the noise.
- With high quality components and strong structure.
Specifications

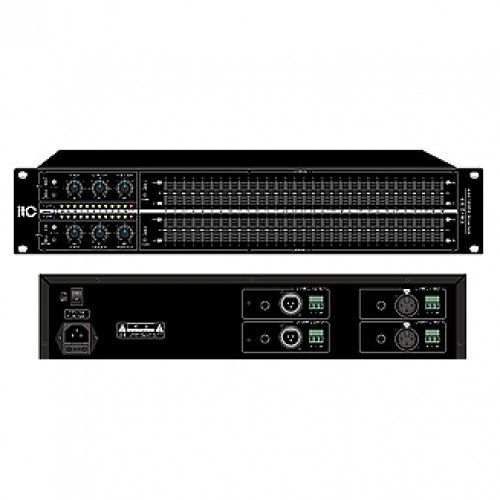

| Model | TS-231 |
| Channel | 2 |
| Optional frequency | (2x31) 1/3-Octave interval (25Hz~20 KHz) |
| Type | Constant - Q |
| Fader travel | 20mm (grounded center) |
| Range | ±12dB |
| Input | Balanced / unbalanced |
| Port | XLR and TRS |
| Input Impedance | >20KΩ balanced |
| Input Maximum level | +21dB |
| Output | Balanced / unbalanced |
| Interface | XLR and TRS |
| Output Impedance | 400Ω balanced 200Ω unbalanced |
| Output Maximum level | +21dBu balanced +15dBu unbalanced; +19 dBu balanced +13dBu unbalanced |
| Low cut filter | 10-250Hz, 12 dB/ octave |
| High cut filter | 3K-40KHz, 12 dB/ octave |
| Frequency Response | 20-20KHz (±0.5dB) 10-40KHz(+0/-3dB) |
| THD + Noise | 0.008% |
| SNR | 96dB |
| Maximum power | 12W |
| Power voltage | AC220V-240V , 50/60Hz |
| Size | 484x156x88mm |
| Weight | 3.5Kg |
