ITC T-8000BW

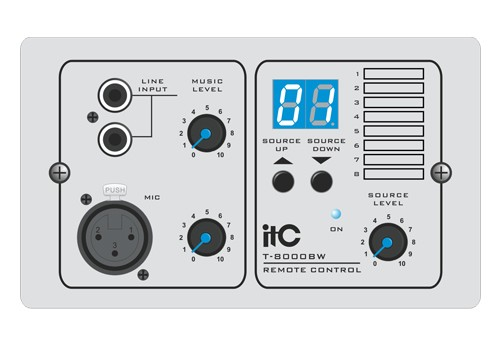

The ITC T-8000BW is a remote control with audio input module for the T-8000 audio matrix and paging controller, in a white ABS housing. It connects to the controller over standard CAT 5 cable, which carries RS485 communication, audio and 24 V DC power together. From a remote location it adjusts the volume of a zone and feeds in a local line or microphone source.

• Remote line input on dual RCA and microphone input on XLR, with gain controls
• Zone LED indicator with up/down buttons, and a volume control
• Powered from the controller (24 V DC, 5 W); an extra 24 V DC supply is needed beyond 50 metres
• Communication distance: up to 1 km
• Metal mounting box supplied
• Dimensions: 146 x 86 x 49 mm; weight 0.16 kg
