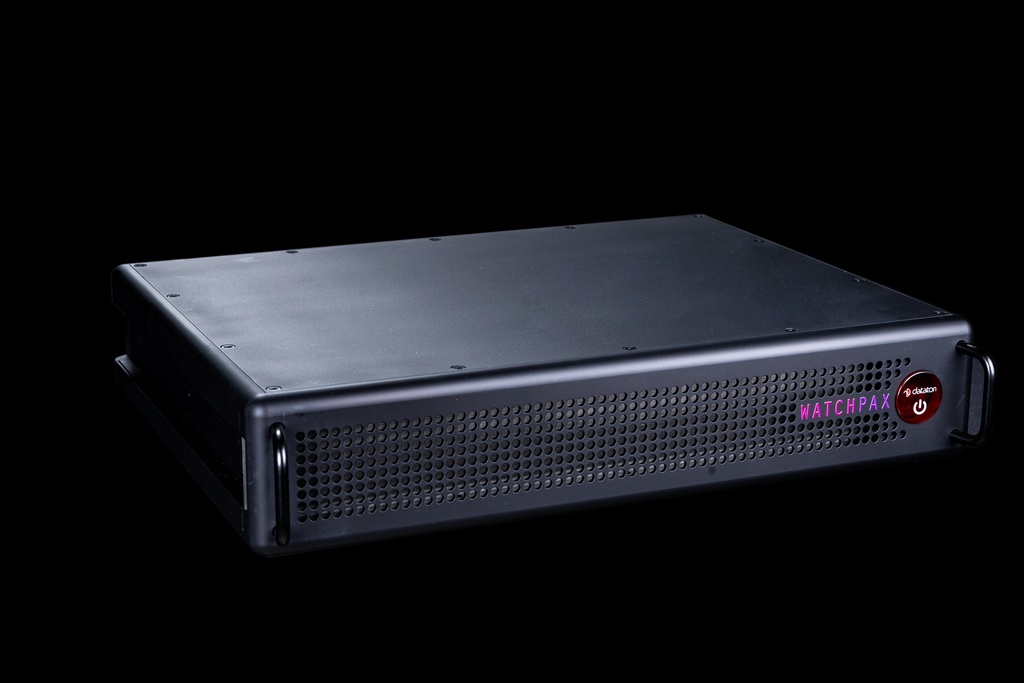

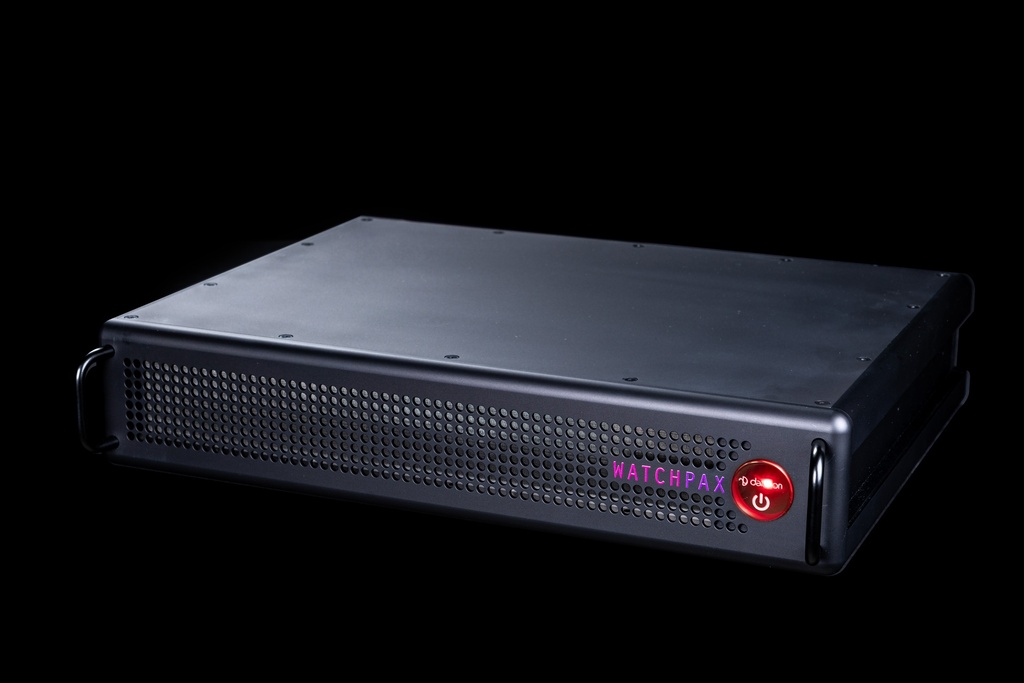

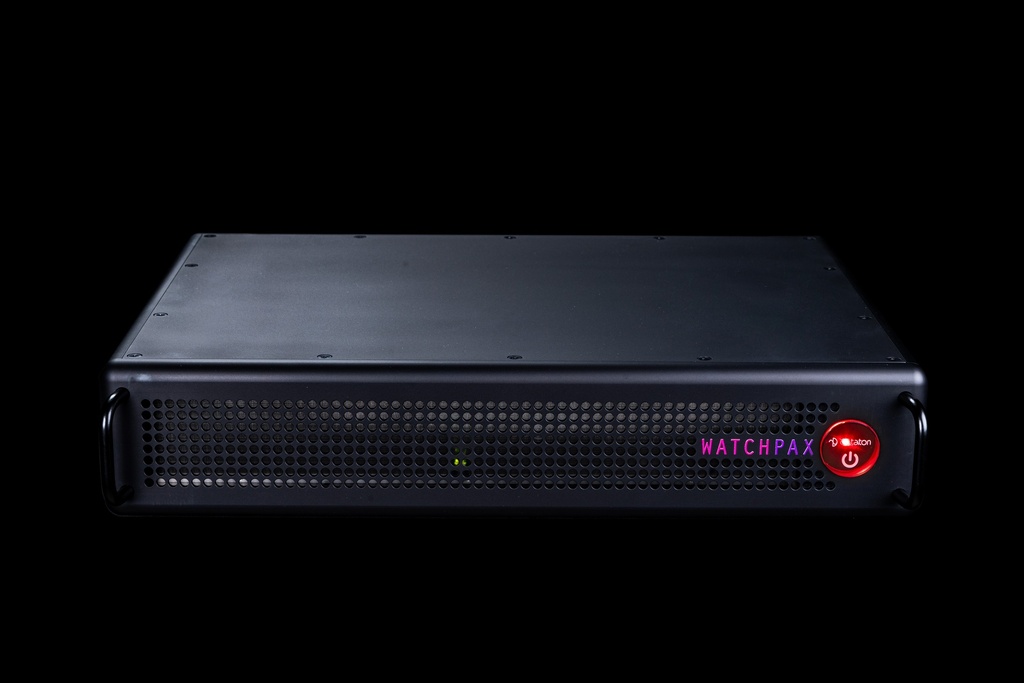

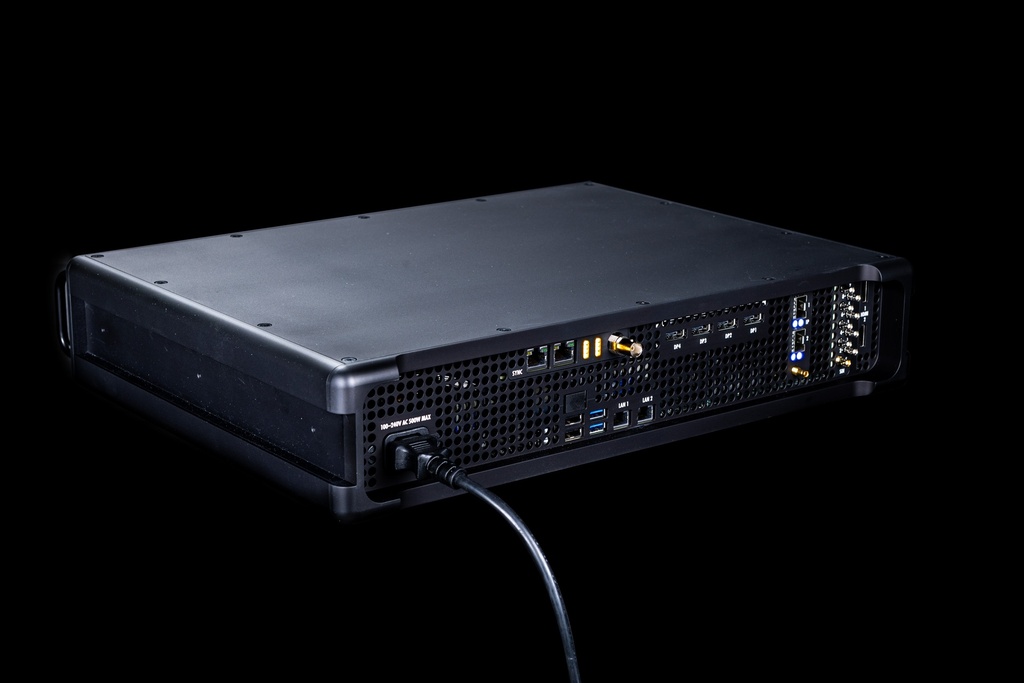

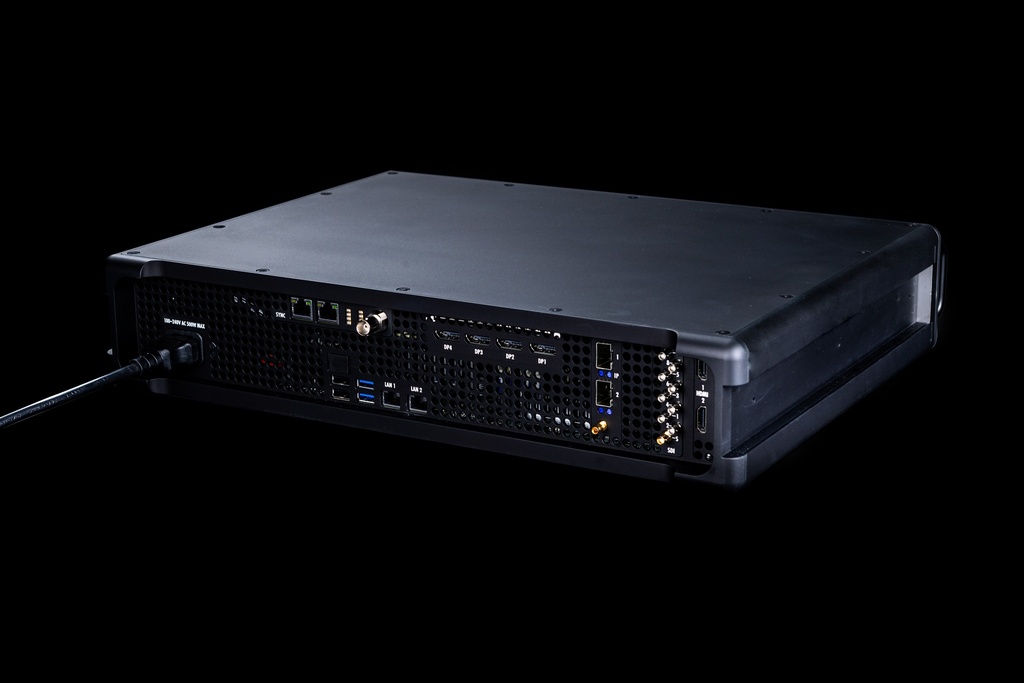

WATCHPAX 64 Model C – Premium 2U IP-Native Media Server with ST2110
Professional flagship media server from Dataton, configured for next-generation broadcast and IP-native workflows. Model C combines four 4K outputs with dual HDMI 2.0 capture, eight-channel bi-directional SDI, and ST2110 IP-based video networking—delivering broadcast-grade multi-source integration alongside hardware synchronization for the most demanding professional installations.
Video I/O & Outputs
- Four 4K DisplayPort 1.4a outputs (up to 4K @ 60Hz)
- Two HDMI 2.0 inputs with 4K capture capability
- Eight-channel bi-directional SDI (configurable: 2×12G-SDI, 8×3G-SDI, or 1×12G + 4×3G)
- ST2110 IP-based video networking card (future-ready)
- Professional SMPTE 2110 workflows for IP-native broadcast environments
- Live HDMI, SDI, and IP feed integration for flexible multi-source content switching
- Full EDID management for automatic display detection
- NDI capture and output for flexible networked workflows
Storage & Processing
- 3.8TB high-performance SSD (expandable to 7.6 or 15.3TB)
- Fast SSD read speeds for uncompressed 4K playback
- 2U rack form factor optimized for broadcast centers
- Robust aluminum housing with steel handles
- Professional thermal management for 24/7 operation
Synchronization & Network
- Hardware synchronization card (built-in)
- Precise timing control across complex multi-display installations
- Two 10 Gigabit Ethernet ports for high-bandwidth networking
- ST2110 IP networking for next-generation broadcast standards
- Dante-ready audio networking
- Professional-grade connectivity: USB 3.2, USB 2.0
WATCHOUT Integration
- WATCHOUT 7 license built-in
- Plug-and-play deployment with WATCHOUT software
- Supports broadcast-level multi-output 4K workflows
- Smart auto-reset for reliable, unattended operation in mission-critical environments
Deployment Flexibility
- Tabletop, rack-mount, or stackable configuration
- Locked-down unit for secure broadcast facilities
- Rack-mount kit with professional cable management available
- Professional-grade cooling for continuous 24/7 operation
- Field-proven design for the most demanding broadcast environments
Future-Proof Architecture
- ST2110 support for IP-native broadcast workflows
- Compatible with next-generation SMPTE 2110 standards
- Scalable for evolving broadcast infrastructure
- Backward compatible with traditional SDI workflows
Ideal for:
Broadcast networks, television centers, live sports production, premium event venues, cinema chains, international broadcast operations, projection mapping with broadcast-level routing, immersive museum experiences with IP integration, corporate broadcast centers, premium rental companies, and any facility requiring the highest standard in synchronized multi-display 4K playback with IP-native video networking.
Key Use Cases:
- Network broadcast centers with ST2110 infrastructure
- Live sports production with multi-camera IP routing
- Television studios transitioning to IP-native workflows
- International broadcast operations with complex routing
- Premium event venues with broadcast-grade requirements
- Cinema and large-format projection with synchronized playback
- Mission-critical 24/7 broadcast environments
- Future-proof installations requiring SMPTE 2110 compatibility
What's Included:
WATCHPAX 64 Model C + 3.8TB SSD + Hardware Sync Card + Dual HDMI capture inputs + Eight-channel bi-directional SDI + ST2110 IP networking card + WATCHOUT 7 license + Power cable + Documentation. Expandable storage and rack-mount kit available separately.
