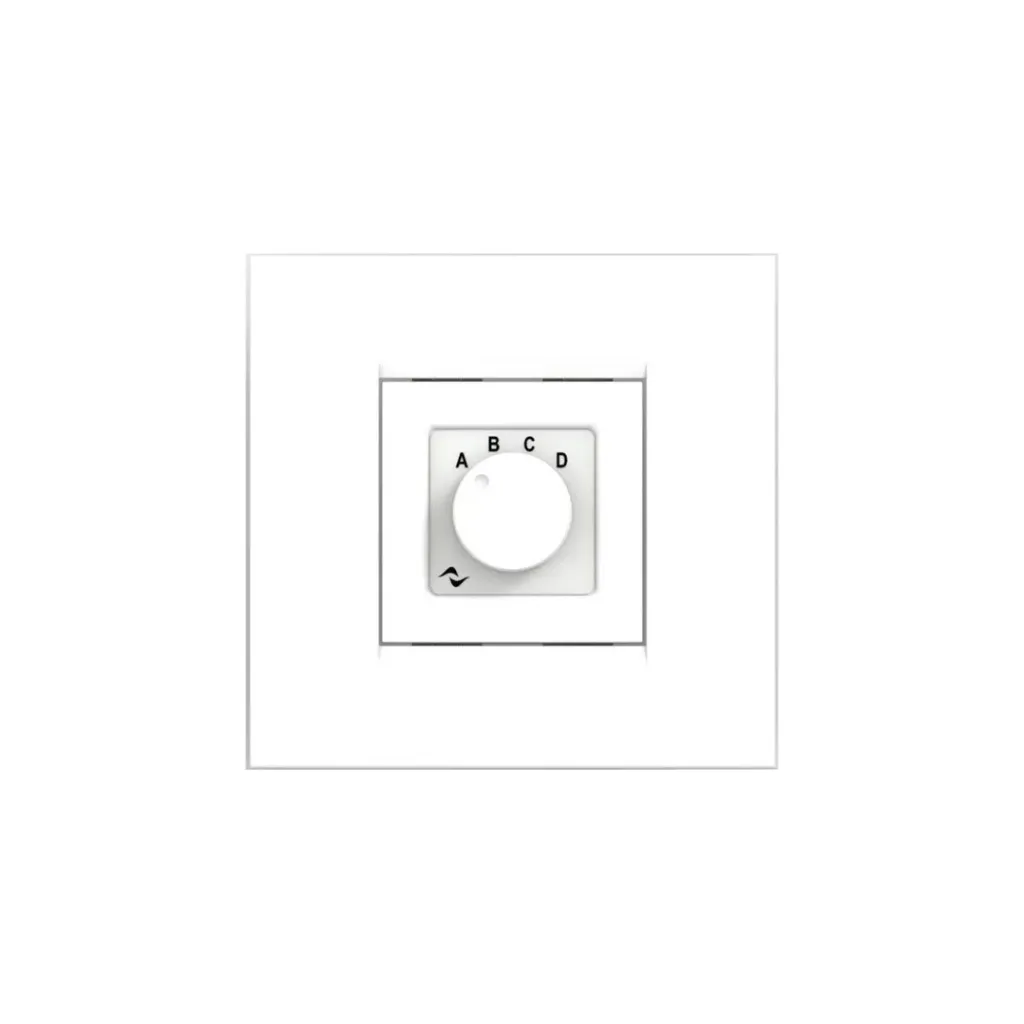

Powersoft WMP SQUARE 4 POS SELECTOR SQUARE WHITE

The WMP Select is a passive wall-mounted selector from Powersoft's WMP controller series, here in the Square format and white finish. A 4-position rotary switch lets users pick the source for one or multiple zones, and the same controller can be used as a scene selector to choose between different system configurations. It is wired to the GPI pins of one Powersoft amplifier and, because the control is sharable over the network, it can also control other devices in the same network.

• 4-position rotary switch, 125 mW, 10 kΩ
• Square module with knob, compatible with supports and cover plates of the Bticino Livinglight series
• 3-pin terminal block connector (Euro 3.81 mm), 16 to 30 AWG wire
• Maximum cable length 100 m
• Source and scene selection with Mezzo amplifiers and with Duecanali and Quattrocanali DSP+D models
