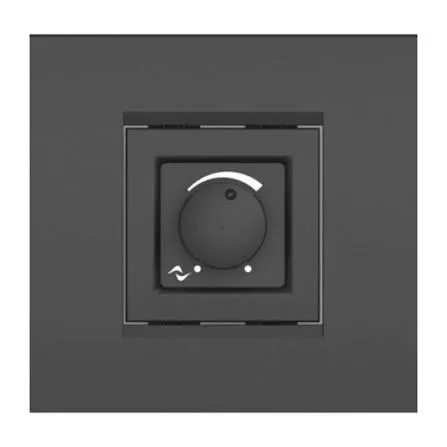

Powersoft WMP SQUARE LEVEL SQUARE BLACK

The WMP Level is a passive wall-mounted level controller from Powersoft's WMP controller series, here in the Square format and black finish. Its rotary potentiometer can be configured to adjust the level attenuation of an amplifier output, or the level of single and multiple zones. It is wired to the GPI pins of one Powersoft amplifier and, because the control is sharable over the network, it can also control other devices in the same network.

• Rotary level potentiometer, 0.05 W, 10 kΩ
• Square module with knob, compatible with supports and cover plates of the Bticino Livinglight series
• 3-pin terminal block connector (Euro 3.81 mm), 16 to 30 AWG wire
• Maximum cable length 100 m
• Output level attenuation with all Mezzo, Duecanali and Quattrocanali models; zone level with Mezzo and with Duecanali and Quattrocanali DSP+D models
