Overview

The XC-SGP offers the ability to command third-party products and peripherals that are non-networked through both logic or voltage. It is software-selectable for either input or output functionality.

Technical Specifications

Input Mode

Inputs
Four (4)
Type
GPIO logic or voltage (software-selectable)
Logic GPIO
Short to ground to activate
Voltage GPIO
0–24 VDC sensing, 12 DC control

Output Mode

Outputs
Four (4)
Type
GPIO LED or Sink (software-selectable)
LED Output
3mA per output
Source Sink
300mA per output

Card Slot(s) Occupied
Single (1)
Shipping Weight
0.275lbs / 0.125kg

XILICA-X21_Spec_XC_SGP_XBrand.pdf Data Sheet

No reviews yet.

QUOTE ONLY

Share this product

Xilica Solaro XC-SGP

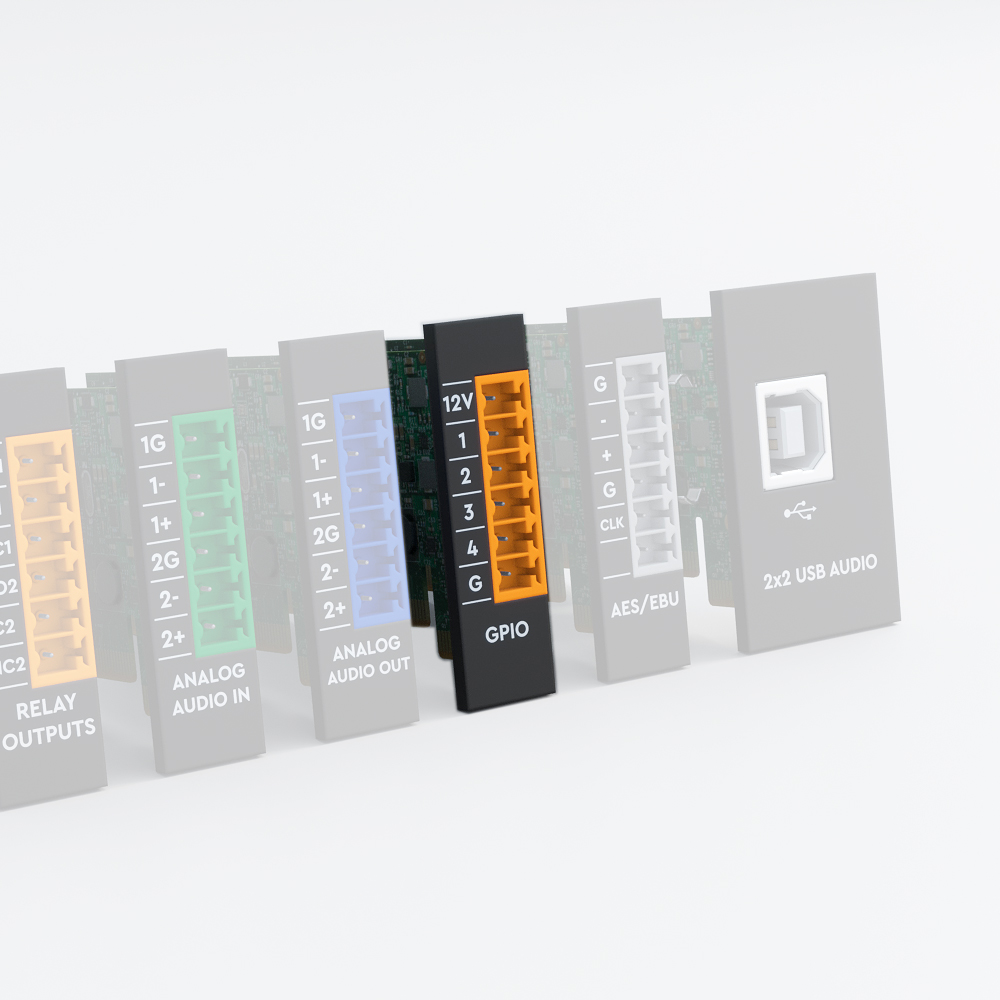

Solaro XC-SGP is a four-channel general-purpose input/output (GPIO) card for Solaro Series processors.

Price on request

Add to wishlist

View on Manufacturer Website

SKU: Solaro XC-SGP

CATEGORY: DSP Accessories

BRAND: Xilica
