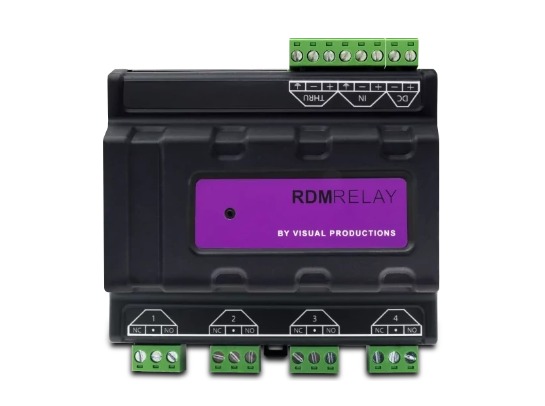

RDM Relay
DIN rail mounted DMX/RDM 4-channel Relay
The RdmRelay is a DIN rail mounted device with 4 relays. Controllable via DMX and RDM, the RdmRelay is a powerful tool in any lighting installation.
Remote Device Management: The device can be set by RDM. This allows the start address to be set via any RDM commissioning tool. The relays are controlled via four DMX channels.
Heavy Duty Relays: The RdmRelay is equipped with four heavy duty relays. The relays can switch 110V/230V equipment up to 16 Amps per relay. This is ideal for controlling non-DMX equipment or switching off a lighting installation.
Specifications
- DMX512-A (ANSI E1.11)
- RDM (ANSI E1.20)
- 9-24V DC 5W (PSU optional)
- For maximum loads please consult the datasheet
