The tarm 12G show laser system is a top professional single color laser with advanced RSL Semiconductor modules as sources and a guaranteed output power of 11'000 mW.
The tarm 12G units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX / ArtNET, or run in stand-alone mode.
The tarm 12G comes with integrated ShowNET network interface and free laser show software.
- 11'000 mW guaranteed output power
- a very fast maximum scan speed of 45kpps @ 8° ILDA for graphics projection
- high-precision RSL modules provide an excellent beam divergence of <0.8 mrad for a low beam diameter of ca. 5.0 mm
- great linear fading
- integrated network switch for linking the control signal
- the tarm 12G impresses with a very bright 525 nm green with a guaranteed output power of 11'000 mW
- MANUFACTURED IN GERMANY
The system has
great beam specifications with a beam diameter of ca. 5.0 mm and a beam divergence of <0.8 mrad (full angle). It is equipped with green (2x 6'500 mW / 525 nm) RSL Semiconductor modules.
The tarm 12G devices have
very fast scanners, running at 45kpps @ 8° ILDA and scanning a maximum scan angle of 50°,
upgrades to CT-scanners with 60kpps @ 8° ILDA and a deflection angle of up to 60° are available on request. These specifications definitely make the units perfectly suitable for professional applications and ideal for graphics projections.

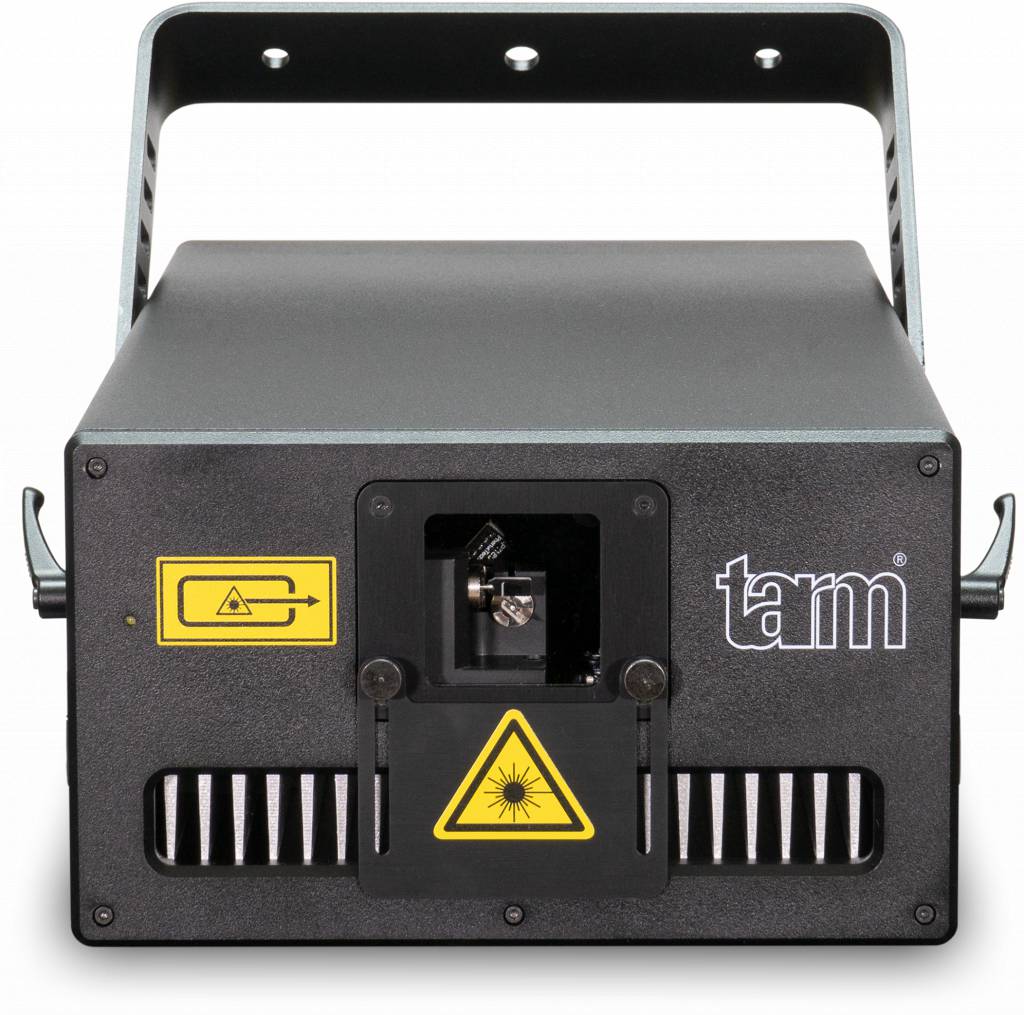

The housing of the tarm 12G is built very
rugged and in a
dust-proof way, so there is no air circulation inside the enclosure. This reduces maintenance efforts to a minimum.
The mounting bracket allows for hanging and for upright mounting of the laser system.
The tarm 12G is suitable for
demanding show laser applications and
graphics projections at
festivals, on big stages, for touring and rental purposes. It is also suitable as
landmark laser or sky laser.
+ Integrated ShowNET incl. free laser show software
The tarm 12G features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new tarm 12G for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. Custom frames and shows can be played back from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.
