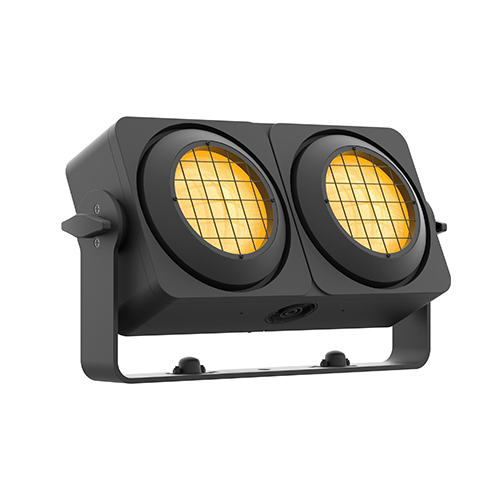

Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.
The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.
Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.
The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.
Features:2x75W Warm White LED with Amber backlight for tungsten simulation
Modular fast-locking assembly to combine multiple units together
IP rated and convection cooled
- Source:2 x 8 W Amber + 2 x 75WWarm White LEDs
- Source CCT:2.700K
- Luminous flux:10'088@Full
- Lux:1'076lx@3 m full
- Lux:387lx@5 m full
- CRI:> 93
- TLCI:> 91
- TM30 Rf:> 91
- TM30 Rg:> 97
- Source life expectancy:> 70.000 h
- Beam angle:60°
- Field angle:100°
- Lens type:parabolic reflector
- Tungsten Emulation:dimming with warm color shift simulation
- Pixel patterns:pre-programmed static and dynamic patterns
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 6 / 12ch
- Pixel control:pixel2pixel control
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 ~ 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):160W
- Output (at 230V):22units on a single power line
- Power factor:> 0,94
- IP rating:IP65 for temporary outdoor use
- IK rating:IK08 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):432x230x102mm
- Weight:7,6kg
- Suspension and fixing:bracket for truss rigging and hardware for connection of more units
- Other:on board mechanics for modular assembly of multiple fixtures
- Compliance:CE, UKCA, RCM
