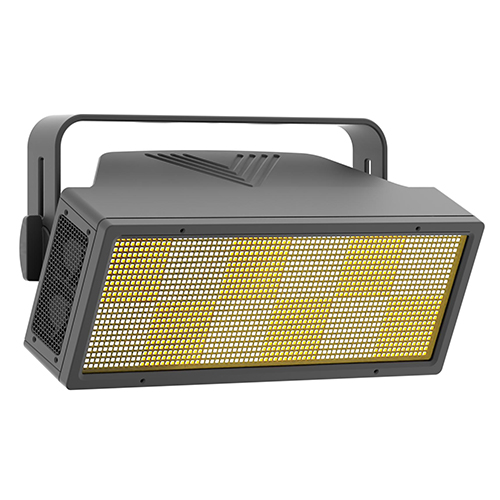

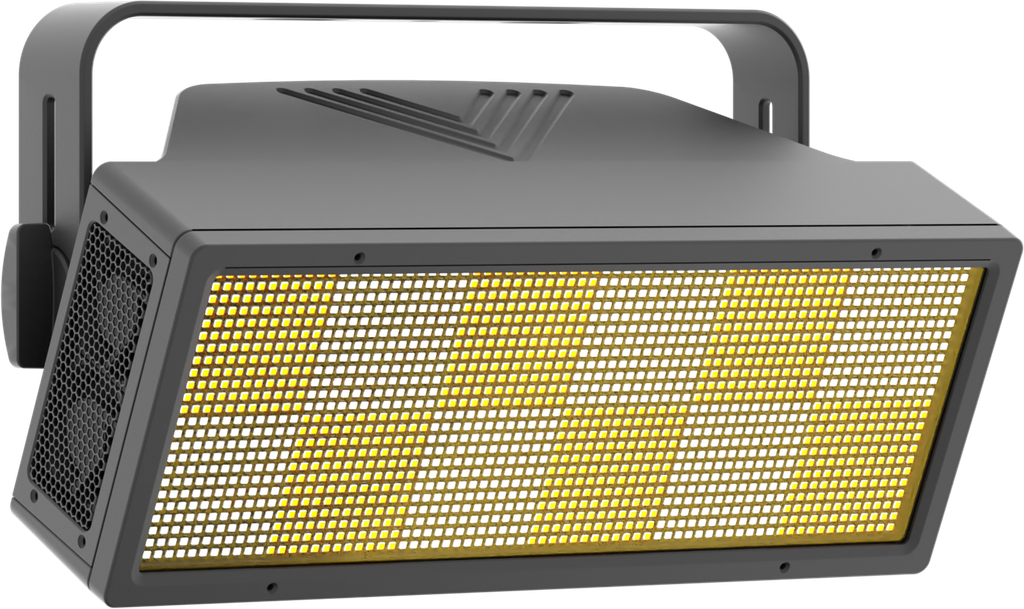

Sunblast 3000FC is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.
Sunblast 3000FC is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.
Features:Staggering 180'000 lumen output with 120° beam angle
IP65 rating
Graphics effects from 48 individually controllable groups of RGBW LEDs
LIGHT SOURCE
- Source:1.728x1WRGBW LEDs
- Source CCT:full ON 6.500K
- Luminous flux:strobing: 180'000 lm - full static: 34'717
- Lux:full static: 1'425lx@3 m full
- Lux:strobing: 565lx@5 m full
- Source life expectancy:> 30.000 h
OPTICS
- Beam angle:111°
- Field angle:153°
COLOUR SYSTEM
- Colour mixing:RGBW / FC
DYNAMIC EFFECTS
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
GOBOS
- Rotating gobos:dynamic patterns with speed and rotation control
CONTROL
- Supported Protocols:DMX512, RDM, Art-Net, Kling-Net
- Pixel control:1 / 2 / 4 / 8 / 16 / 48individually select and control sections
- RDM:for remote addressing and parameter configuration
- Display:black TFT touch display
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Data connection:Art-NetRJ45 IN/OUT
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):strobe : 1.500 W (peak) - static: 580W
- Output (at 230V):2units on a single power line
- Max power consumption (120V):strobe: 1.550 W (peak) - static 602W
- Output (at 120V):1units on a single power line
PHYSICAL
- IP rating:IP65 for temporary outdoor use
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):468x179x268mm
- Weight:14kg
INSTALLATION
- Suspension and fixing:hanging bracket for floor positioning with "Quick-Lock" system
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
