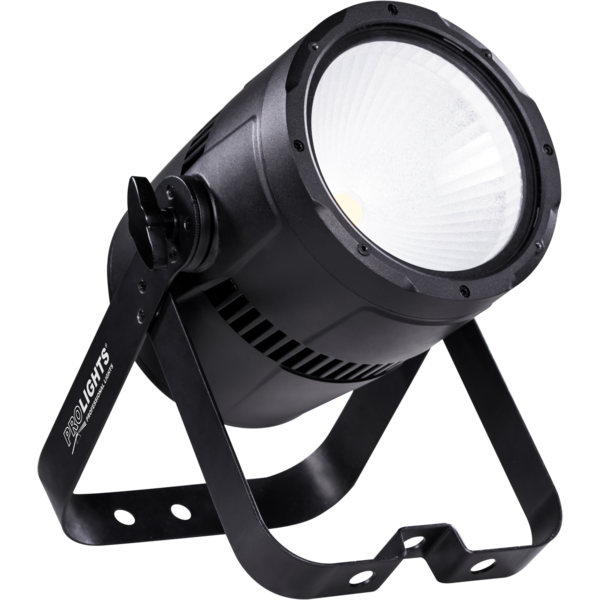

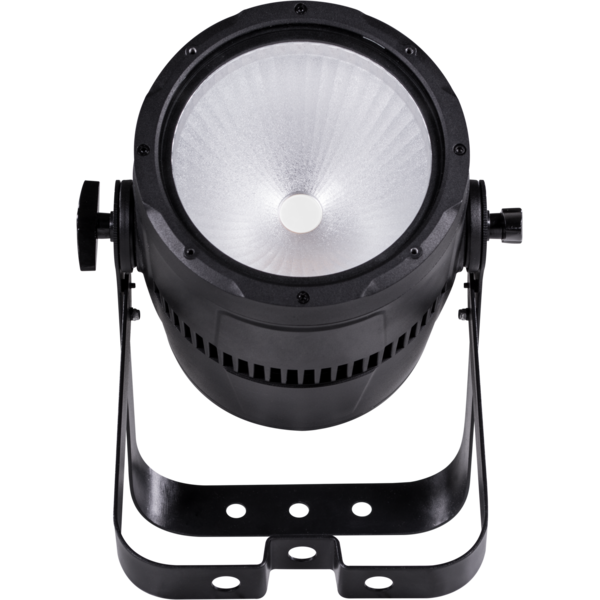

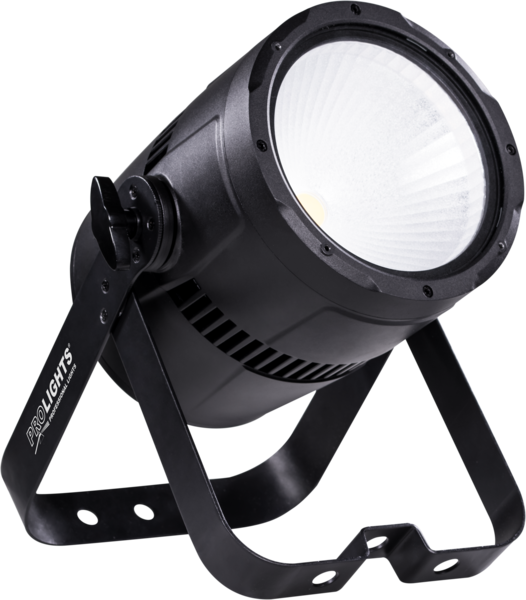

STUDIOCOBCW is a powerful and incredibly versatile LED PAR. Fusing the old and the new it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow and flexible lens options.
STUDIOCOBCW is a powerful and incredibly versatile LED PAR. Fusing the old and the new it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow and flexible lens options.
Features:100 W 5.000 K COB LED source with HD dimming and high CRI.
Flexible lens options of 15° - 30° - 60°.
Functional barn doors for beam control.
LIGHT SOURCE
- Source:100WWhite COB LED
- Source CCT:5.000K
- Luminous flux:4'880
- Lux:(60°) 599,7lx@3 m
- Lux:(30°) 1936lx@3 m
- CRI:> 91
- Source life expectancy:> 30.000 hrs (L80B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle:60°
- Field angle:80°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:30° (opt) - 15° (opt)
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:1 / 2 / 5ch
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28flash(s), mechanical
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)

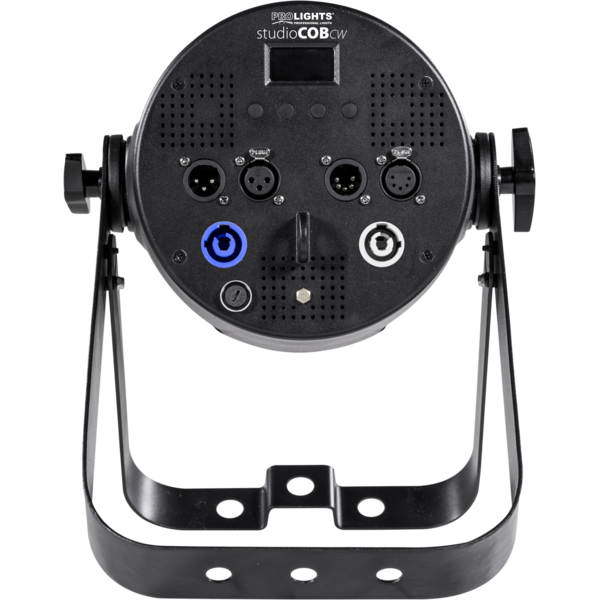

CONNECTIONS
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:Amphenol XLR 3p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):121W
- Output (at 230V):12units on a single power line
- Max power consumption (120V):120W
PHYSICAL
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black or mirror
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):262x190x371mm
- Weight:4,5kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
