SMARTBATPNEOPACK

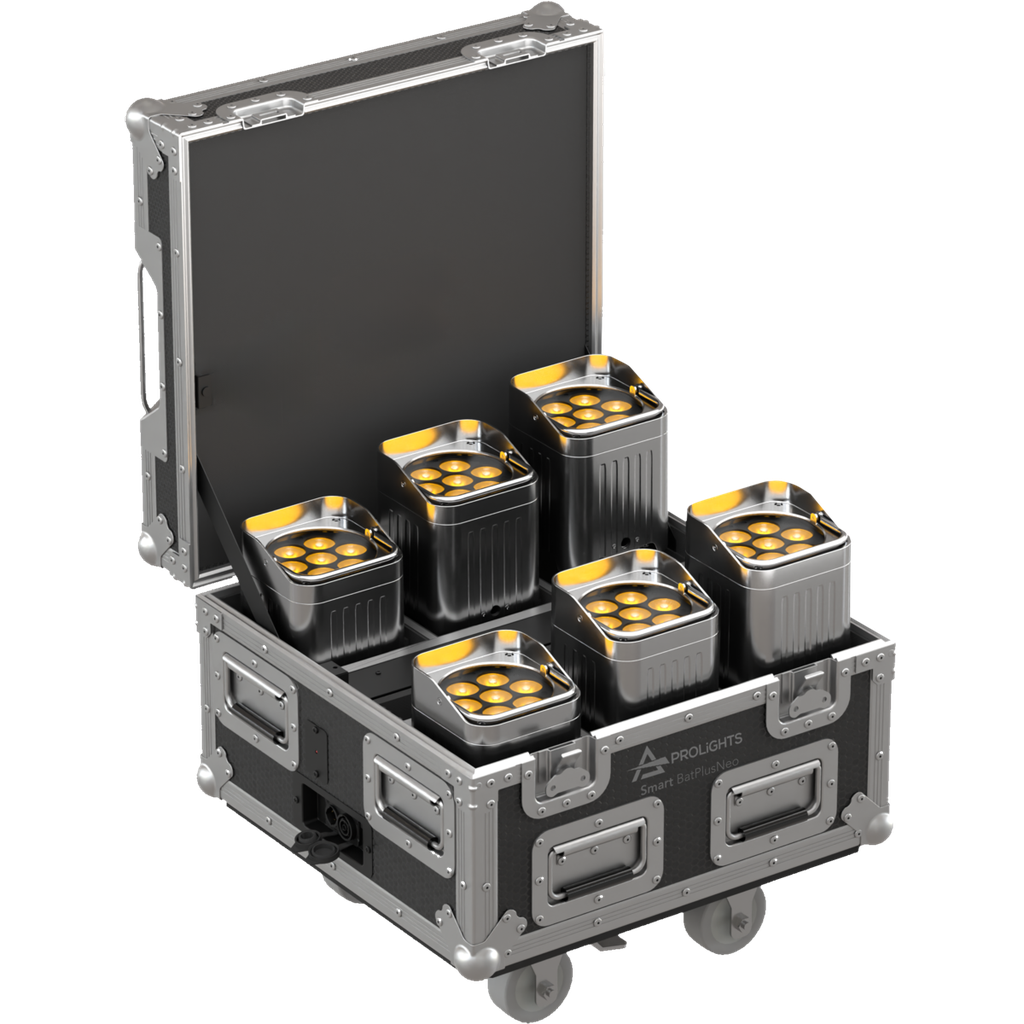

Pack with 6 SMARTBATPLUSNEO, battery charger flight case, IR controller, AC cable, chrome finishing

QUOTE ONLY
0.00 AED 0.00 AED

SKU: SMARTBATPNEOPACK
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONTACT US

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

The pack includes:

  • 6 x SMARTBATPLUSNEO
  • 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTBATPNEO)
  • 1 IR controller (PRL-IRC)
  • 1 PowerCON power cable
  • Maximum power consumption during charging is 570W
  • Pack Weight: 50,5 kg
  • The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

    Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

    With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

    Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

    The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

    The pack includes:

    • 6 x SMARTBATPLUSNEO
    • 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTBATPNEO)
    • 1 IR controller (PRL-IRC)
    • 1 PowerCON power cable
    Features:
    Maximum power consumption during charging is 570W
    Pack Weight: 50,5 kg

    LIGHT SOURCE
    • Source:
      7x10
      W
      RGB + Warm White LED
    • Luminous flux:
      2'927 lm
      @Full
    • Lux:
      1'493
      lx
      @5 m full
    • CRI:
      Up to 90
    • R9:
      Up to 80
    • TLCI:
      Up to 80
    • TM30 Rf:
      > 90
    • TM30 Rg:
      < 107
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      11
      °
    • Field angle:
      21
      °
    • Additional optics:
      see available accessories
    • Other:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGB + Warm White
    • White presets:
      3.200 K -9.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      CRMX+W-DMX, RDM
    • DMX channels:
      1 / 3 / 4 / 5 / 10 / 11 / 17
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • IR:
      infrared sensor controlled by remote
    MOVEMENT
    • Tilt:
      (up to) 20
      °
      with adjustable foot support
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    BATTERY
    • Battery:
      16,8
      V
      lithium
    • Estimated battery life:
      up to 3 / 6 / 8 / 12 / 18 / 24 h (selectable)
    • Recharge connection:
      magnetic fast-charge in case
    • Recharge time:
      4
      h (max)
    • Battery level indicator:
      shown on display
    CONNECTIONS
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      CRMX transreceiver
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
    • Max power consumption (230V):
      66
      W
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black or mirror
    • Operating temperature:
      Ta
      0 to +45 °C (+32 to +113 °F)
    • Dimensions (WxHxD):
      138x180x147
      mm
    • Weight:
      3,4
      kg
    INSTALLATION
    • Suspension and fixing:
      M12 threaded insert for easy clamp installation
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus
