Product Description

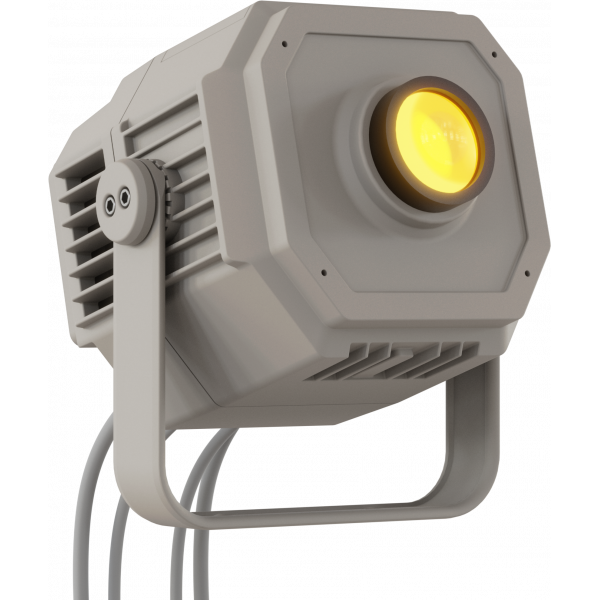

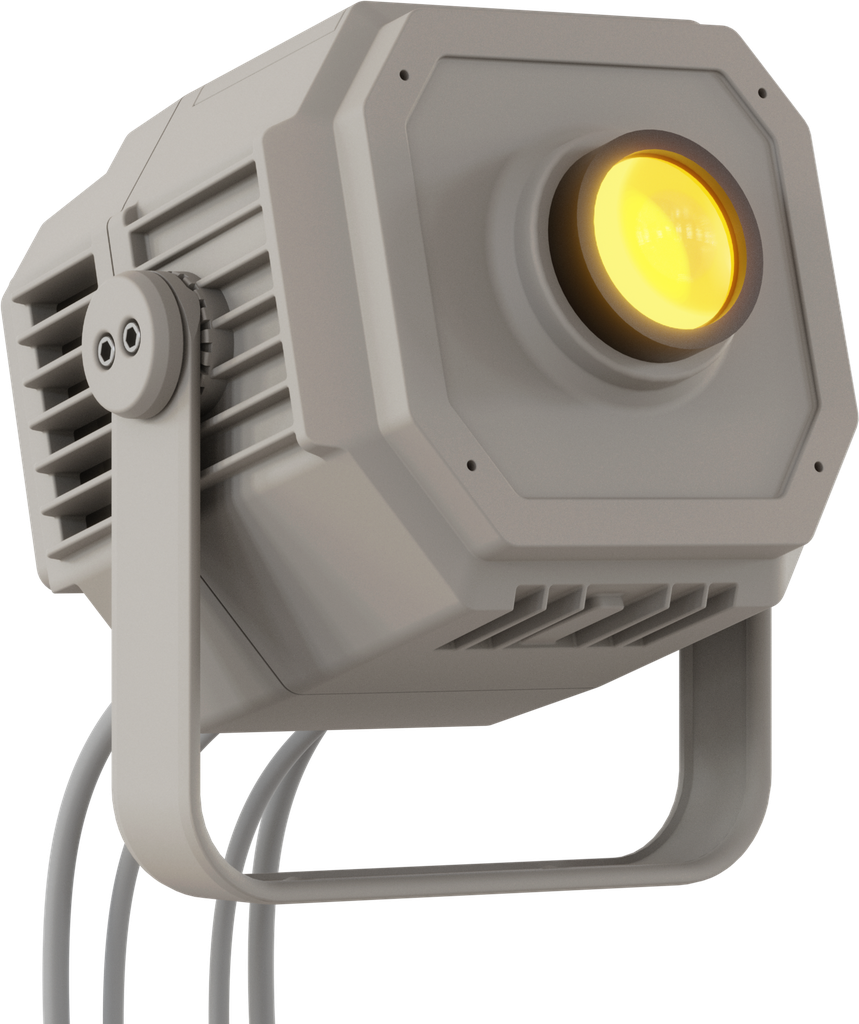

Mosaico FX100FC is an 100W RGBW Full Color LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.
Mosaico FX100FC is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.
Mosaico FX100FC is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.
This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.
Please note that Mosaico FX100FC do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.
Mosaico FX100FC is an 100W RGBW Full Color LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.
Mosaico FX100FC is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.
Mosaico FX100FC is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.
This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.
Please note that Mosaico FX100FC do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.
Features:
100W RGBW LED Source Image and Effect light projector
15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
DMX, CRMX Wireless and local stand alone control
- Source:100WRGBW LED
- Luminous flux:(15°) 1'512 lm; (30° - WT) 1'487 lm; (30° - GB) 1'412 lm; (50° - WT) 1'572 lm; (50° GB) 1'094 lm; (70°) 1'092@Full
- Lux:(15°) 829 lx; (30° - WT) 464 lx; (30° - GB) 195 lx; (50° - WT) 196 lx; (50° GB) 83 lx; (70°) 92lx@5 m full
- Source life expectancy:> 30.000 hrs (L70B10 @Ta 25° C / 77° F)
- Optics:interchangeable -see available accessories
- Focus:manual
- Colour wheel:available as accessory
- Other:included 1 static holder with magnetic positioning
- Control Resolution:16-bit dimmer and color control
- Static mode:selection of static dimmer, colors and effects rotation mode
- Other:included 1 static gobo holder with manual indexing gear and magnetic assembly
- Other:2 rotating wheels with magnetic mounting (structured glass included, color/gobo/animation and other wheels available as optional accessories)
- Gobo size (BW):outer: 26,9 mm - image: 22 mm
- Gobo size (Color):outer: 26,9 mm - image: 20,5 mm
- Fixed gobos:Fix gobo wheel available as accessory MFX100GW
- Supported Protocols:DMX512, RDM, CRMX + WDMX
- DMX channels:13ch
- RDM:for remote addressing and parameter configuration
- Display:user interface through DATAMASTER external coder (not included)
- Stand Alone:3push encoder
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100%, electronic and manual knob dimmer
- Dimmer curves:selectable dimming modes available
- Strobe / shutter:1-30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
- Power connection:35 cmmoulded IP power IN/OUT connectors
- Signal connection:35 cmmoulded IP signal IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Adaptors:XLR and BARE END 16A adaptors included
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):120W
- Output (at 230V):16
- Standby power:7W
- Power factor:>0.95
- IP rating:IP66 for outdoor installations
- IK rating:IK09 impact rating
- Cooling:forced-air with low-noise fan
- Housing:Weatherproof IP66 construction
- Finish:black (RAL 9004) or black (RAL 9006)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):224x261x221mm
- Weight:5,8kg
- Suspension and fixing:bracket for hanging and positioning
- Other:Inspectable cover window for effects and gobo replacement and maintenance
- Compliance:CE, RCM, cTUVus
