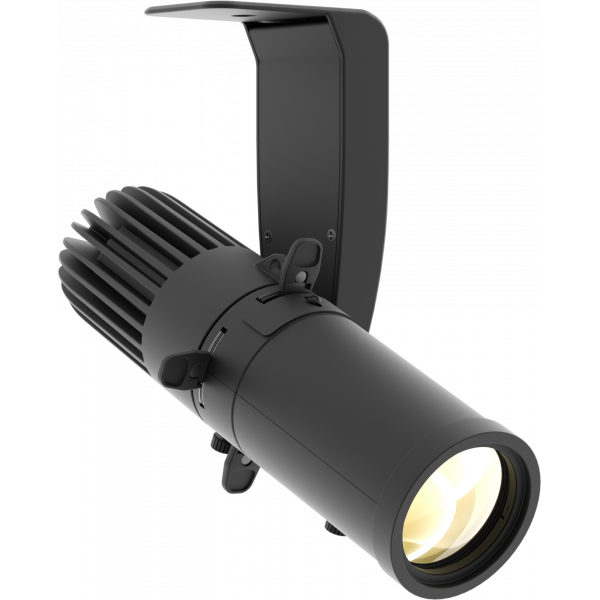

EclMiniProfile is a new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.
EclMiniProfile is a new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.
Features:Bright and compact LED ellipsoidal with sharp optics and shutters
Available with warm and cold white high CRI LED sources
Profile lens options (19° - 26° - 36° - 50°) Wash Zoom lens options (15° to 30° - 25° to 50°)
- Source:28WWhite CREE LED
- Source CCT:(TU) 3.000 K - (DY) 5.700K
- Luminous flux:(TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552@Full
- Luminous flux:(DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
- Lux:(TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx@5 m full
- Lux:(DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx@5 m full
- CRI:(TU) >92; (DY) >80
- TLCI:(TU) >90; (DY) >68
- TM30 Rf:(TU) >90; (DY) >79
- TM30 Rg:(TU) >97; (DY) >97
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
- Lens type:high-quality glass lens optics
- Manual mode:manual adjustment of dimmer and strobe
- Fixed gobos:gobo holder Included in optics
- Gobo size:E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
- Dimmer:linear 0 - 100%, manual knob dimmer
- Power connection:16 A Schuko plug
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):22W
- Output (at 230V):43units on a single power line
- Power factor:>0,47
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):112x176x226mm
- Weight:1kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM
