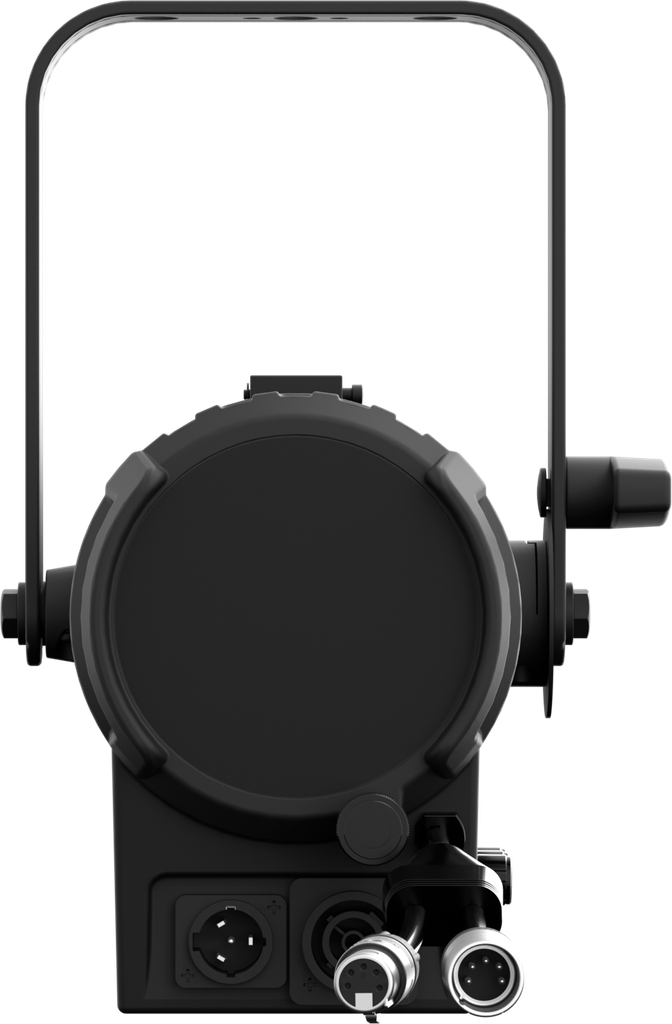

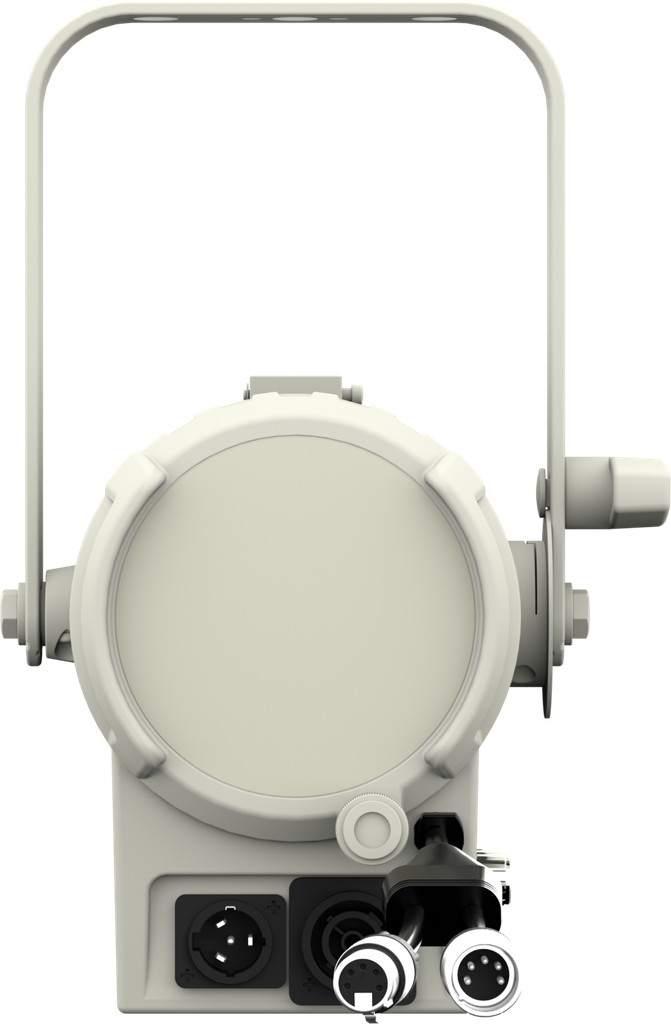

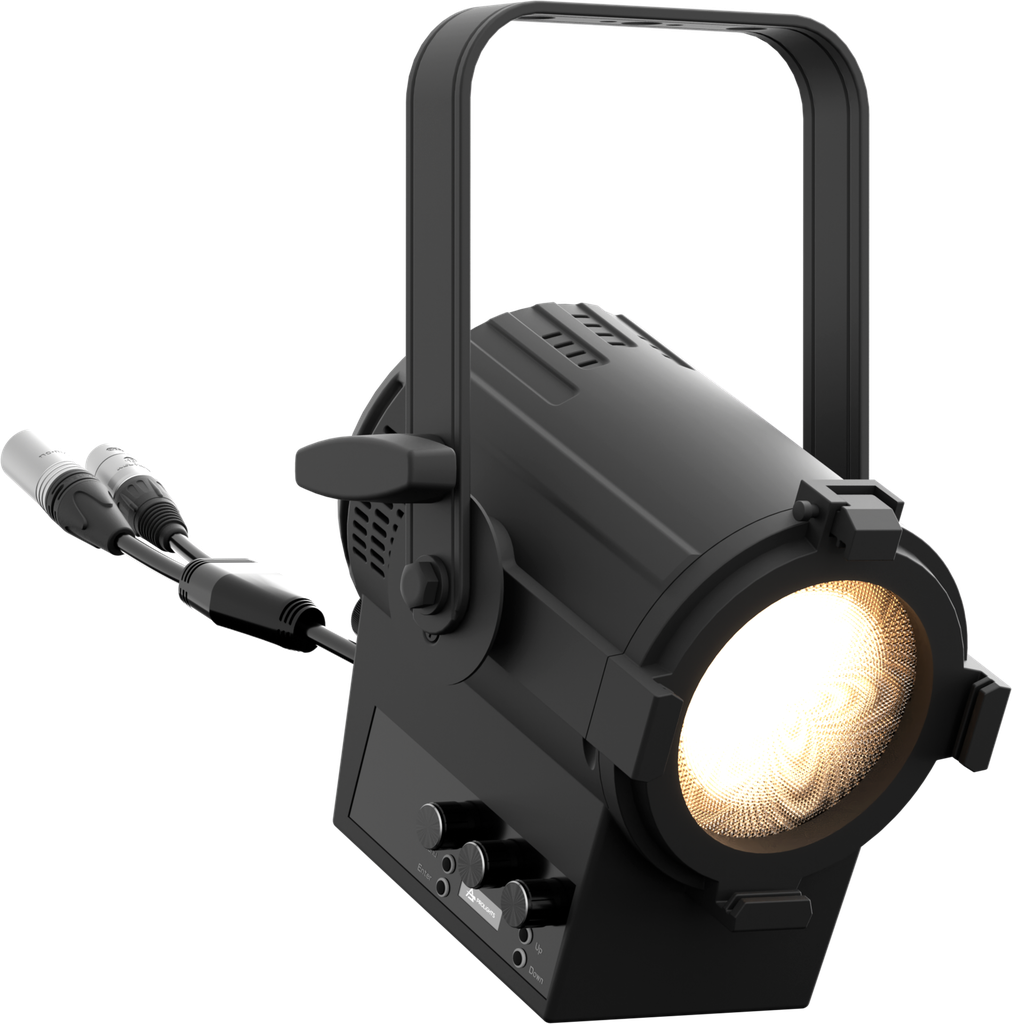

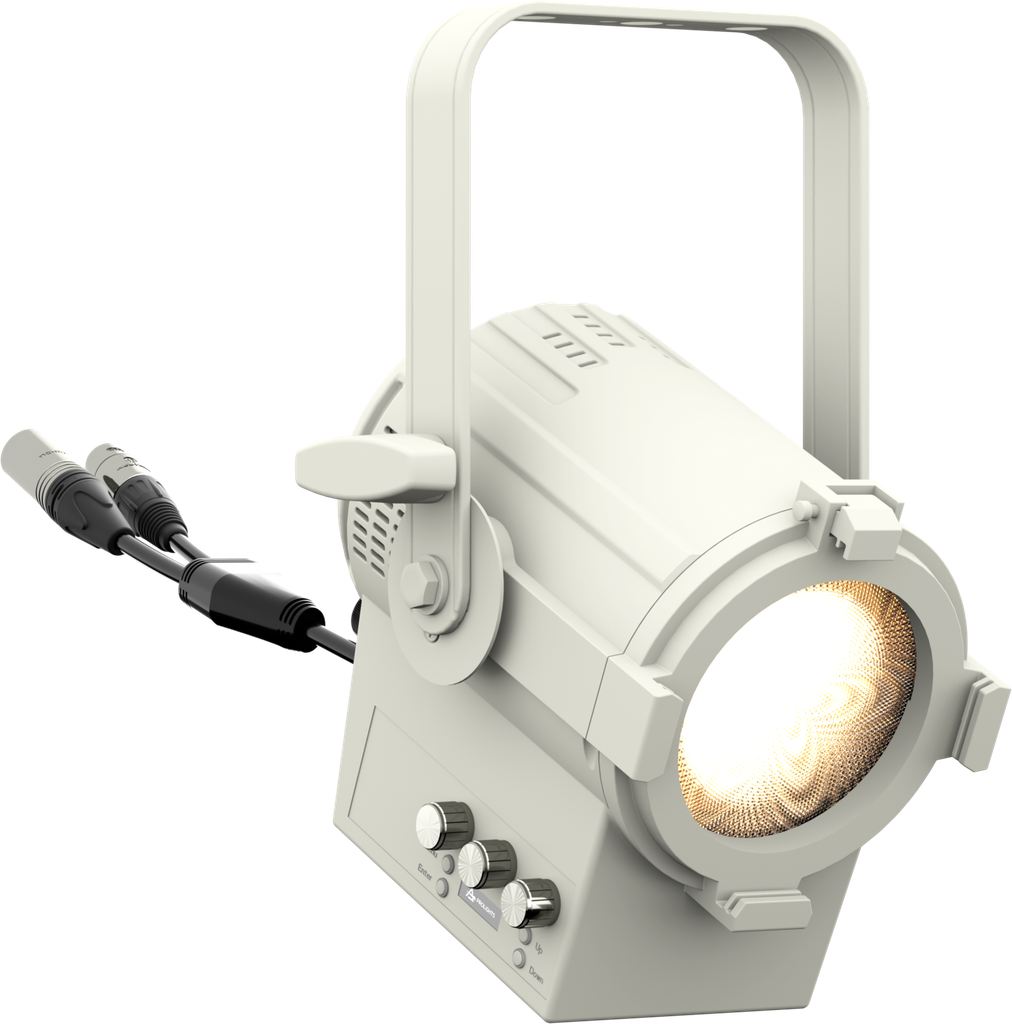

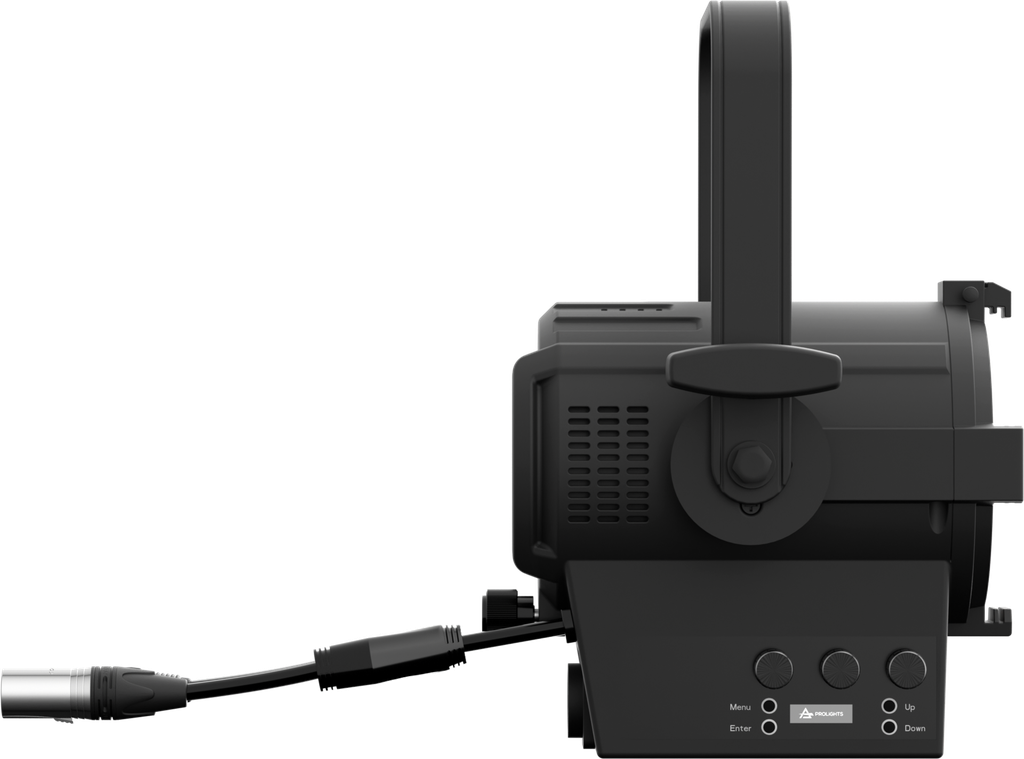

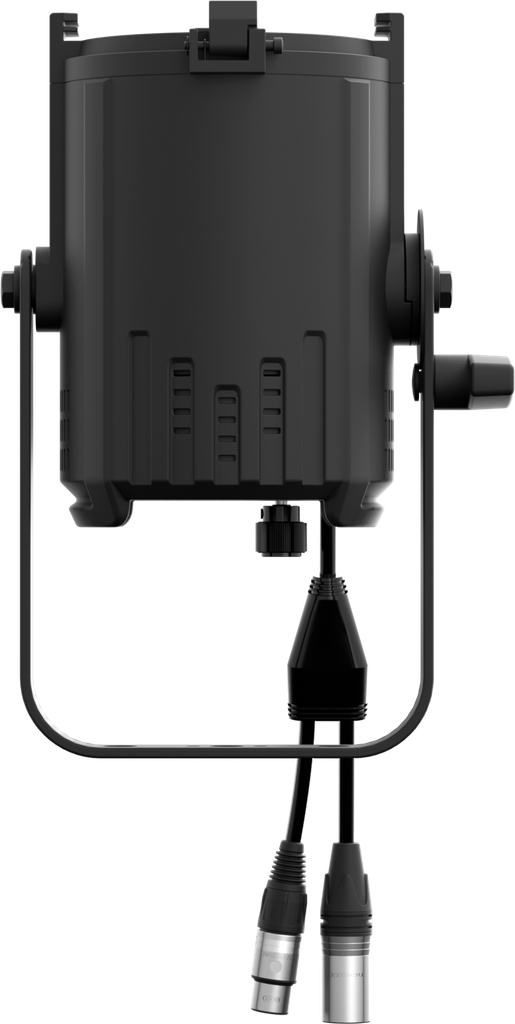

The EclMiniFresnel VW is an ultra-compact LED Fresnel lamp, designed as a replacement for a 300W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 60W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclMiniFresnel VW has a manual zoom range from 21° to 83°, with precise focusing, and barndoors (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.
The EclMiniFresnel VW is an ultra-compact LED Fresnel lamp, designed as a replacement for a 300W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 60W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclMiniFresnel VW has a manual zoom range from 21° to 83°, with precise focusing, and barndoors (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.
Features:Linear white CCT, from 2,700K to 5,600K
60W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
Barndoor and filter frame included
- Source:60WVariable White LED (driven @ 50W)
- Source CCT:2.700 K - 5.600K
- Luminous flux:(21°) 877 lm - (83°) 2'320@Full
- Lux:(21°) 630 lx - (83°) 238lx@3 m
- CRI:96 @WW; 95 @CW; 95 @full
- R9:91 @WW; 88 @CW; 86 @full
- TLCI:95 @WW; 98 @CW; 97 @full
- TM30 Rf:> 94 @WW; >93 @CW; > 94 @full
- TM30 Rg:< 103 @WW; < 104 @CW; < 104 @full
- Source life expectancy:> 50.000 h
- Zoom range:21° - 83°manual
- Lens diameter:100mm
- Lens type:fresnel zoom lens
- Colour mixing:tunable white
- CCT:CCT control through dedicated DMX channel
- White presets:2.700 K - 5.600K
- Colour wheel:built-in white presets
- Control Resolution:16-bit dimmer control
- Static mode:selection of static dimmer and color temperature
- Manual mode:manual adjustment of intensity and CT from knob
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 4 / 5 / 11ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Stand Alone:3rotatory knobs
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):50W
- Output (at 230V):35units on a single power line
- Power factor:> 0,52
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004) or white (RAL 9003)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):191x281x203mm
- Weight:2,5kg
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:filter frame, 4 doors barndoor, spigot
- Compliance:CE, UKCA, RCM
