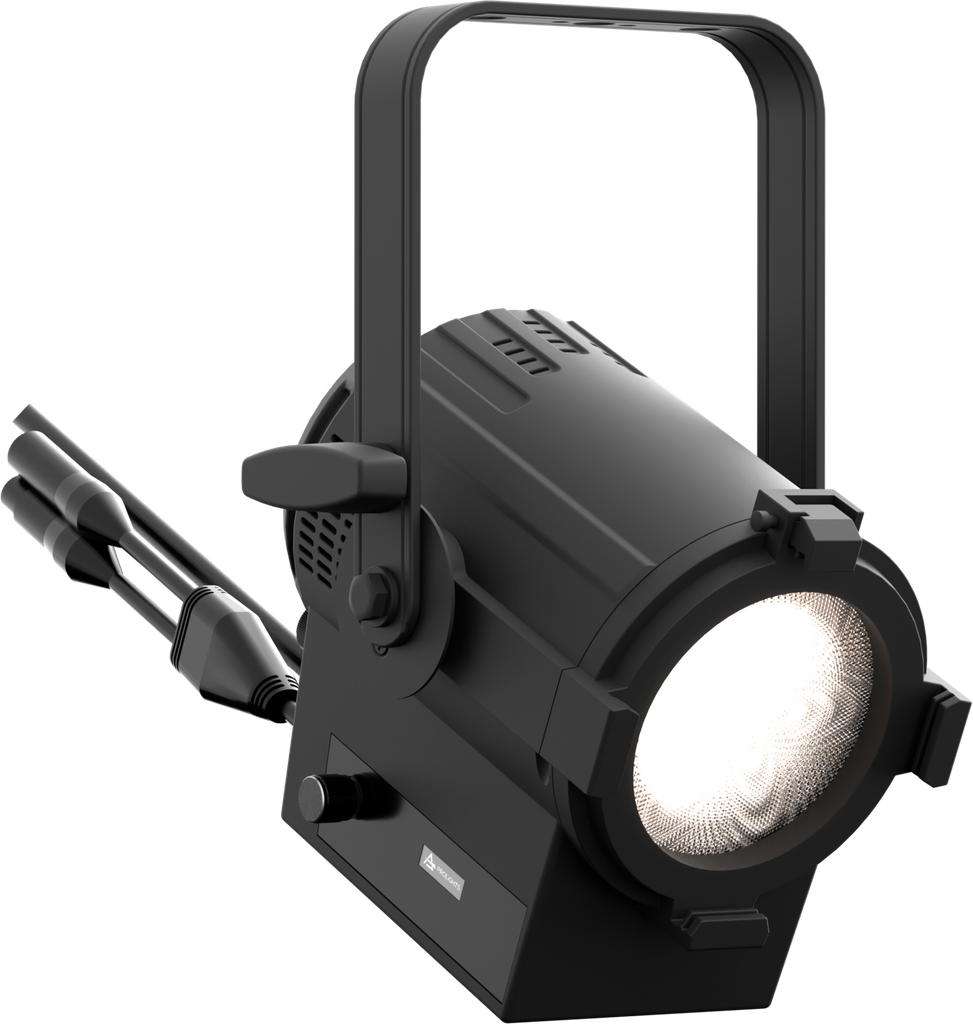

EclMiniFresnel is the LED replacement for a standard tungsten 300W Fresnel. Featuring all the output characteristics of a traditional Fresnel, but with the added benefits of beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclMiniFresnel adds all the advantages of the LED to the traditional Fresnel.
EclMiniFresnel is the LED replacement for a standard tungsten 300W Fresnel. Featuring all the output characteristics of a traditional Fresnel, but with the added benefits of beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclMiniFresnel adds all the advantages of the LED to the traditional Fresnel.

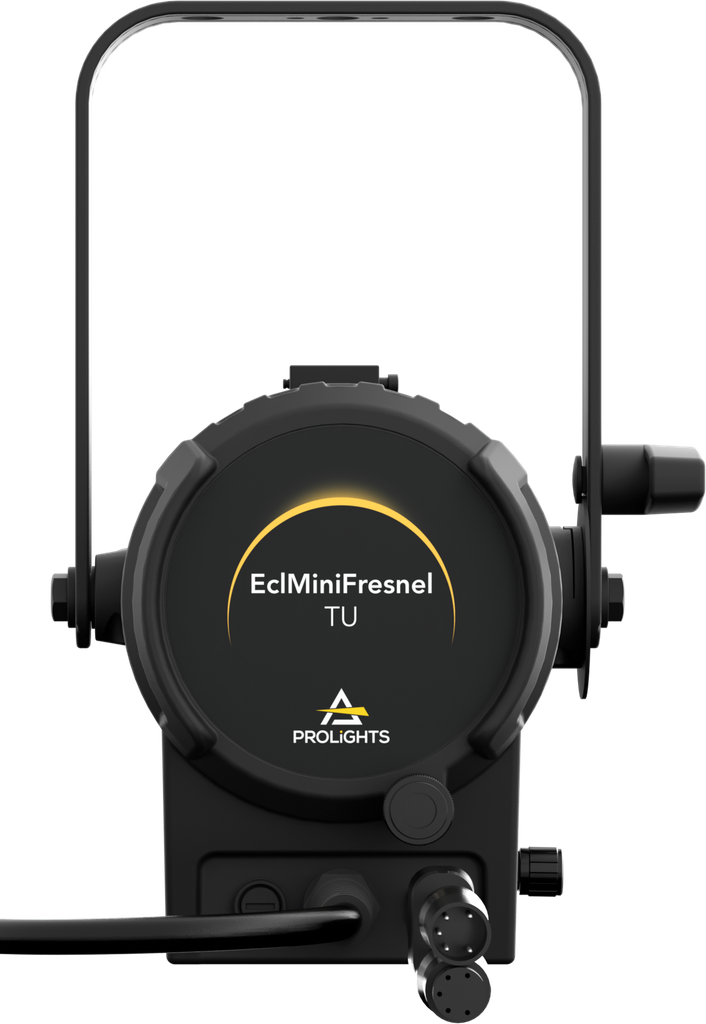

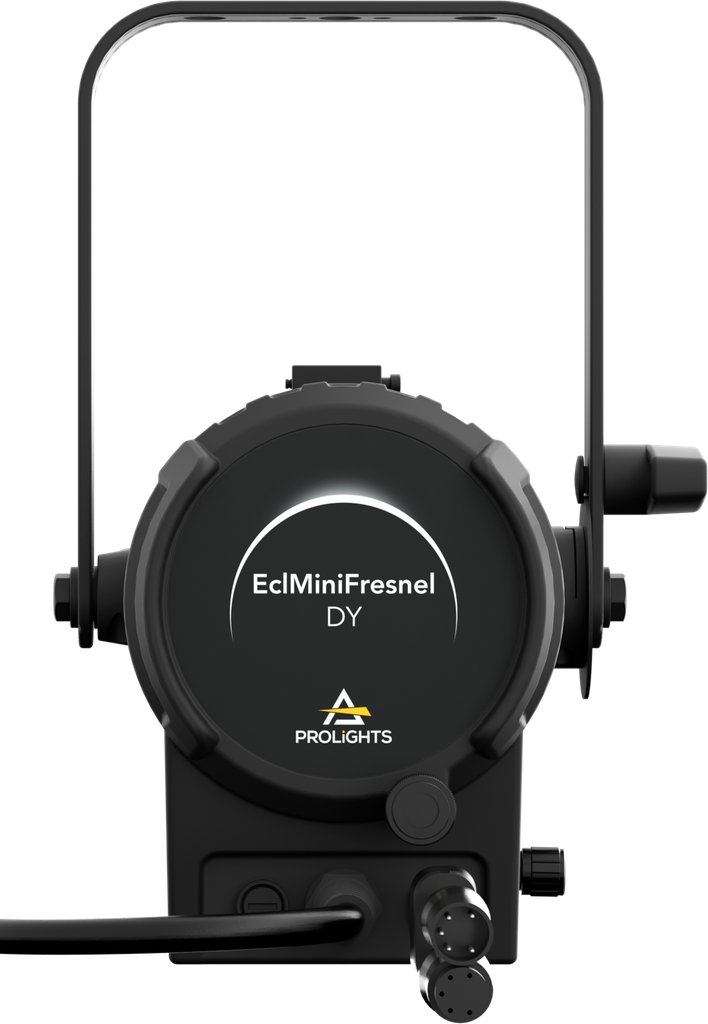

Features:TU (3.000 K) and DY (5.000 K) versions available both with HD dimming
Fresnel lens with 21° to 79° manual zoom range
Truly silent operation making it perfect for studio and stage use
LIGHT SOURCE
- Source:40W- drv@35WWhite LED
- Source CCT:(TU) 3.000 K - (DY) 5.000K
- Luminous flux:(TU) (21°) 856 lm; (79°) 2'183@Full
- Luminous flux:(DY) (21°) 1'168 lm (79°) 2'851 lm @full
- Lux:(TU) (21°) 236 lx - (79°) 86lx@5 m full
- Lux:(DY) (21°) 321 lx - (79°) 113lx@5 m full
- CRI:(TU) >92 - (DY) >81
- TLCI:(TU) >93; (DY) >67
- TM30 Rf:(TU) >90; (DY) >80
- TM30 Rg:(TU) >99; (DY) >95
- Source life expectancy:> 50.000 h
OPTICS
- Zoom range:21° - 79°manual
- Lens diameter:100mm
- Lens type:Fresnel zoom lens

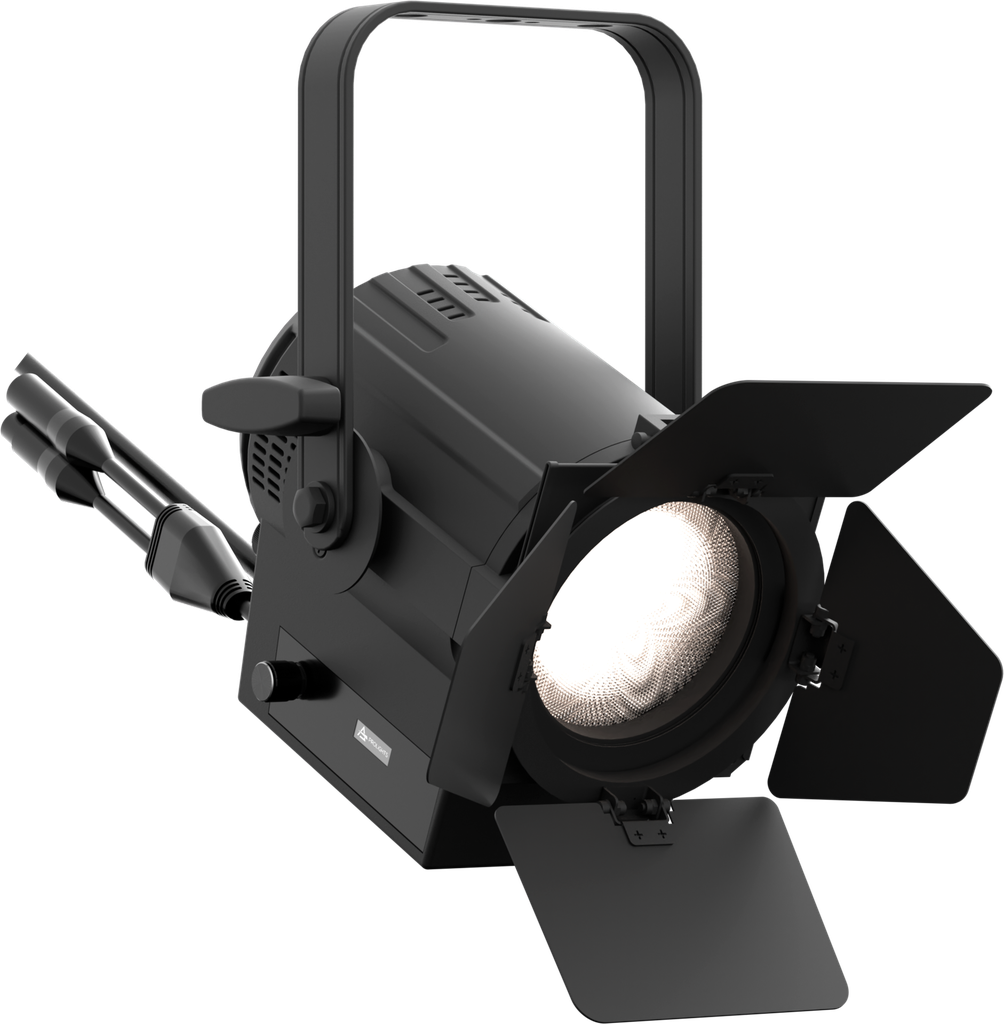

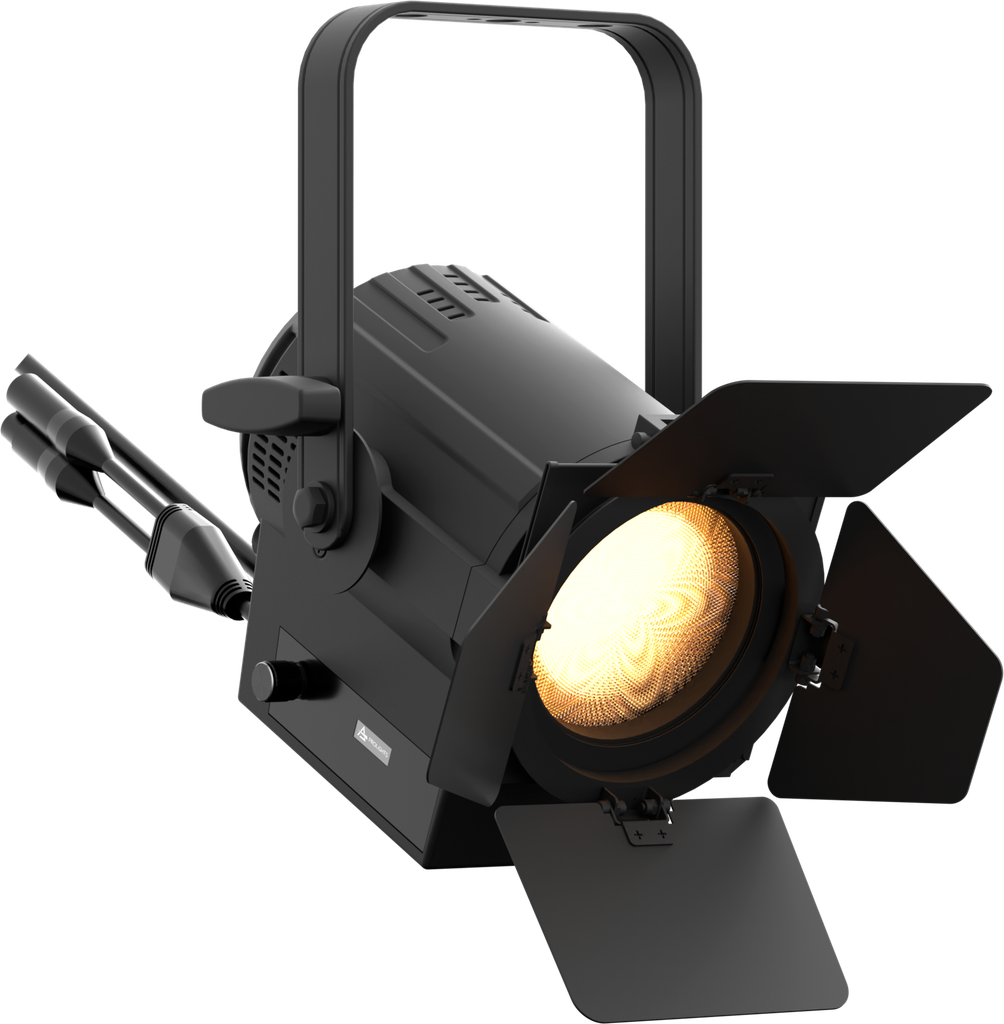

- Other:spigot not included; gel frame and barndoors included
COLOUR SYSTEM
- Macros:several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- Static mode:selection of static dimmer
- Manual mode:manual adjust of dimmer throught menu and knob
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512, RDM, rotatory knob
- DMX channels:1 / 2-1 / 2-2 / 3 / 5ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer
ELECTRONICS
- Dimmer:linear 0 - 100%, manual knob dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:bare end connection
- Signal connection:DMX 5p IN/OUT
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):35W
- Power factor:>0,55
PHYSICAL
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Die-cast aluminium
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):191x281x203mm
- Weight:2,38kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
