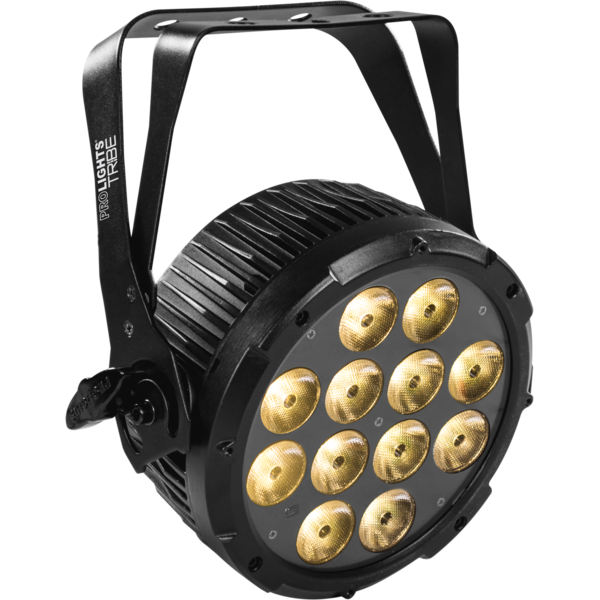

LumiPar 12UAW is a super-slim PAR LED designed for professional use and to be a powerful wash light. It's equipped with 12x8W high-efficiency tunable white/amber LED light source, conceived to offer an advanced colour generation with fully controlable colour saturation and temperature. LumiPar 12UAW is compatible with the infrared remote controller, for intuitive and interactive use without the need of any external DMX units and can be also controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.
LumiPar 12UAW is a super-slim PAR LED designed for professional use and to be a powerful wash light. It's equipped with 12x8W high-efficiency tunable white/amber LED light source, conceived to offer an advanced colour generation with fully controlable colour saturation and temperature. LumiPar 12UAW is compatible with the infrared remote controller, for intuitive and interactive use without the need of any external DMX units and can be also controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.
Features:12x8W Tunable White high-power LED
Independent CT channel from 2.600 K to 6.000 K
Flicker-free operations with selectable PWM
USB port for USB WIFI transceiver (optional)
Silent operation and HD dimming system
- Source:12x6WVariable White LED
- Source CCT:(WW) 2.600 K - 2.850 K - (CW) 6.000 K - 6.500 K - (ALL) 1.600K
- Luminous flux:1'844
- Lux:1'336lx@3 m
- CRI:(WW) 82 - (CW) 80
- Source life expectancy:> 50.000 h
- Beam angle:16°
- Field angle:36°
- Lens diameter:38mm
- Additional optics:45° (optional)
- Colour mixing:tunable white
- CCT:CCT control through dedicated DMX channel
- White presets:2.600 K ~ 6.000K
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512
- DMX channels:3 / 7ch
- Display:LED display user interface
- IR:infrared sensor controlled by remote
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Power connection:Seetronic powerCON IN/OUT connectors
- Signal connection:variants available
- Wireless Connection:optional WIBOX, WDBOX proprietary protocol
- Data:USB port for USB WIFI transmitter (optional)
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):61W
- Output (at 230V):40units on a single power line
- Max power consumption (120V):61,5W
- Output (at 120V):21units on a single power line
- IP rating:IP44
- IK rating:IK07 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):253x200x237mm
- Weight:3,3kg
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Compliance:CE, UKCA, RCM
