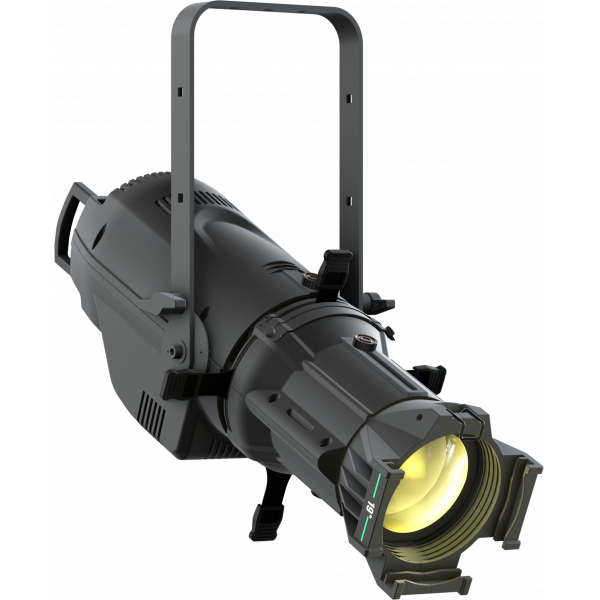

EclProfile FWVW is the Variable White version of the new generation of Ecl Profile LED ellipsoidals, offering linear CCT control from 2,700 K to 5,600 K.
The EclProfile FWVW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on whites, offering a superior evenness and crisp focus of the new EclProfile range.
The LED source has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.
EclProfile FWVW is the Variable White version of the new generation of Ecl Profile LED ellipsoidals, offering linear CCT control from 2,700 K to 5,600 K.
The EclProfile FWVW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on whites, offering a superior evenness and crisp focus of the new EclProfile range.
The LED source has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.
Features:Linear CCT control 2,700 K - 5,600 K.
High lumen output and superior quality of whites (high CRI, TLCI, TM30).
Silent operation and compatible with industry standard accessories.
- Source:91x3WVariable White LED
- Source CCT:from 2,700K to 5,600K
- Luminous flux:(26° only TU) 3'696 lm; (26° only DY) 4'406 lm; (26°) 7'951@Full
- Lux:(26° only TU) 1'289 lx; (26° only DY) 1'524 lx; (26°) 2'759lx@5 m full
- CRI:(only TU) 97; (only DY) 97,4; (@full) 95,4
- R9:(only TU) 91; (only DY) 96,2; (@full) 86,4
- TLCI:(only TU) 98; (only DY) 98; (@full) 98
- TM30 Rf:(only TU) >95,5; (only DY) >91,7; (@full) >93,2
- TM30 Rg:(only TU) <102,4; (only DY) <100,8; (@full) <103,2
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:manual
- Other:see available accessories
- Colour mixing:warm white + cold white
- Shutter system:3 layers blades system and fast rehabilitation of blade in case of out of frame blade
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Special features:HIGH mode, AUTO mode and SILENT mode fan management
- Gobo size:(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 3 / 5 / 11ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Strobe / shutter:1 - 25Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):265W
- Output (at 230V):12units on a single power line
- Standby power:6.3W
- Power factor:0,97
- IP rating:IP20
- Cooling:low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):265x259x540mm
- Weight:7,3kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM, cTUVus, FCC
