ECLFWTUBK
Share this product

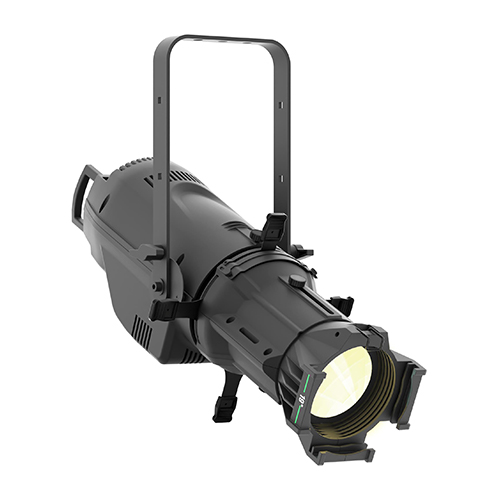

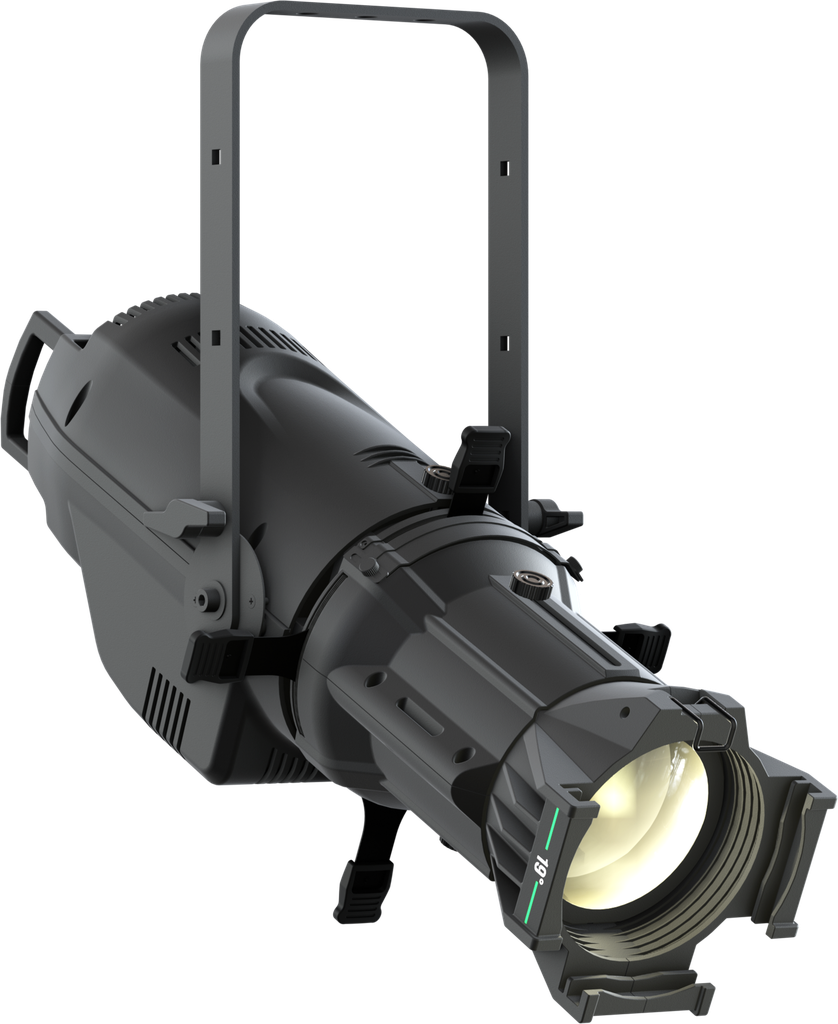

Prolights ECLFWTUBK

High quality Full White LED ellipsoidal avai. in Tungsten and Daylight versions

0.00 AED 0.00 AED

Add to wishlist
View on Manufacturer Website

Product Description

EclProfile FW is the Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

  • 3.200 K (TU) and 5.600 K (DY) versions available.
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30).
  • Silent operation and compatible with industry standard accessories.

    • EclProfile FW is the Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

    Features:
    3.200 K (TU) and 5.600 K (DY) versions available.
    High lumen output and superior quality of whites (high CRI, TLCI, TM30).
    Silent operation and compatible with industry standard accessories.

    LIGHT SOURCE
    • Source:
      91x3
      W
      high-power white LED
    • Source CCT:
      (TU) 3.200 K - (DY) 5.600
      K
    • Luminous flux:
      (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670
      @Full
    • Luminous flux:
      (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
    • Lux:
      (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419
      lx
      @5 m full
    • Lux:
      (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494
      lx
      @5 m full
    • CRI:
      (TU) >98; (DY) >97
    • R9:
      (TU) >91; (DY) >97
    • TLCI:
      (TU) >98; (DY) >98
    • TM30 Rf:
      (TU) >94; (DY) >91
    • TM30 Rg:
      (TU) >99; (DY) >99
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
      °
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      manual
    • Other:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      static white
    DYNAMIC EFFECTS
    • Shutter system:
      3 layers blades system and fast rehabilitation of blade in case of out of frame blade
    • Static mode:
      selection of static dimmer
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      HIGH mode, AUTO mode and SILENT mode fan management
    GOBOS
    • Gobo size:
      (B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 3 / 4
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      270
      W
    • Output (at 230V):
      10
      units on a single power line
    • Standby power:
      6,8W
    • Power factor:
      0,97
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      265x259x540
      mm
    • Weight:
      7,3
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
