Product Description

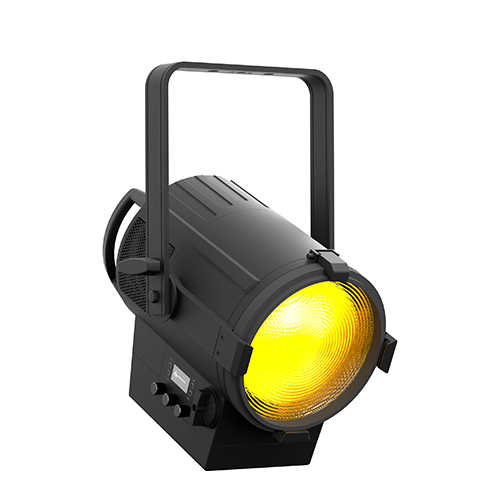

EclFresnel TW is an advanced LED replacement of traditional 1.000W Fresnel lamps.
Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light.
Featuring HDL dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel TW delivers the performance and quality of output demanded from this level of luminaire.
EclFresnel TW is an advanced LED replacement of traditional 1.000W Fresnel lamps.
Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light.
Featuring HDL dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel TW delivers the performance and quality of output demanded from this level of luminaire.
Features:Tunable White 2.800 K - 10.000 K with high CRI and extensive colour mixing
+/- green and magenta white tuning
Silent operation for studio and stage use
- Source:260W6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
- Source CCT:2.800 K ~ 10.000K
- Luminous flux:(17°) 4'653 lm - (91°) 7'896@Full
- Lux:(17°) 1'678 lx - (91°) 344lx@5 m full
- CRI:90 @3.200 K; 89 @5.600 K
- R9:80 @3.200 K; 87 @5.600 K
- TLCI:77 @5.600 K
- TM30 Rf:87 @3.200 K; 81 @5.600 K
- TM30 Rg:106 @3.200 K; 106 @5.600 K
- Source life expectancy:> 50.000 h
- Zoom range:17° - 91°manual
- Lens diameter:200mm
- Lens type:Fresnel zoom lens
- Focus:manual
- Colour mixing:tunable white + colour
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K -10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
- Static mode:selection of static colour
- Manual mode:manual adjustment of intensity, CT, colour correction from knob
- Auto mode:built-in programs with execution speed adjustment
- Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
- Supported Protocols:DMX512, RDM, rotatory knob
- DMX channels:1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer and colour
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):260W
- Output (at 230V):17units on a single power line
- Standby power:33,9 W
- Power factor:>0,93
- IP rating:IP20
- Cooling:heat pipe with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):283x440x343mm
- Dimensions with PO system (WxHxD):341x545x343mm
- Weight:7,5kg
- Weight with PO system:9,7kg
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:filter frame, 8 doors barndoor, spigot
- Compliance:CE, UKCA, RCM
