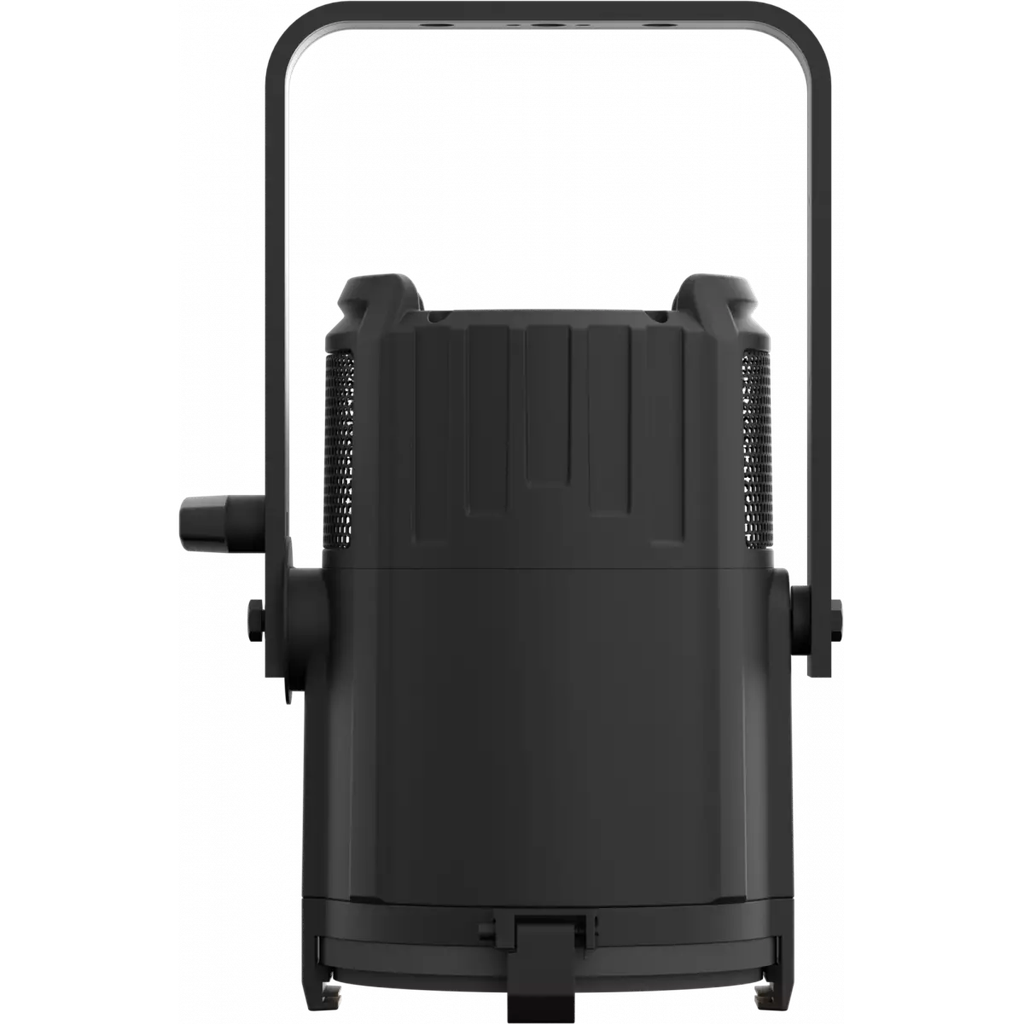

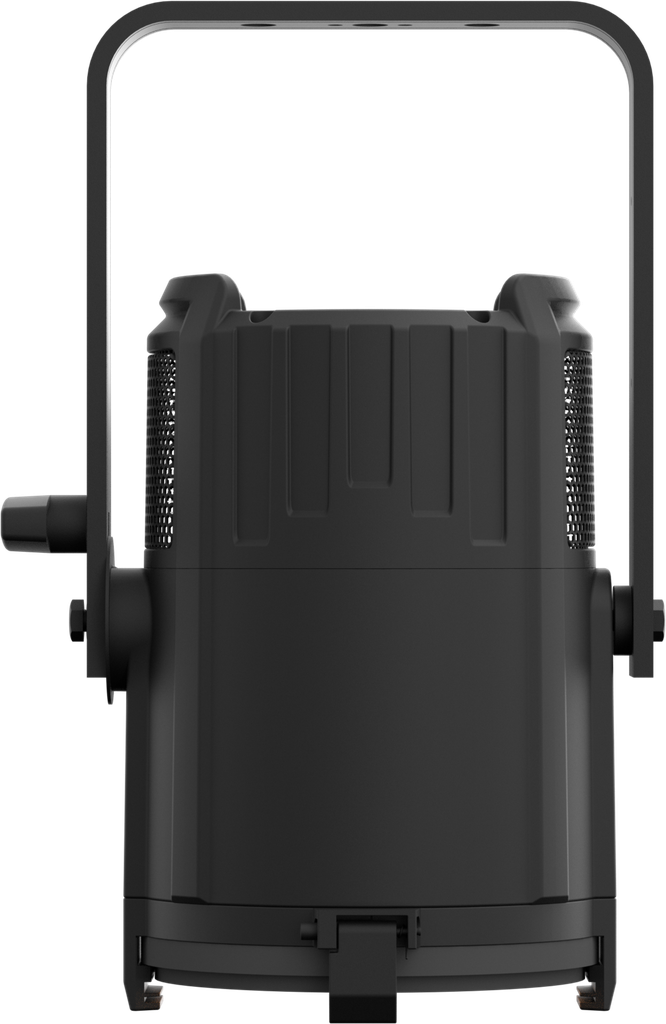

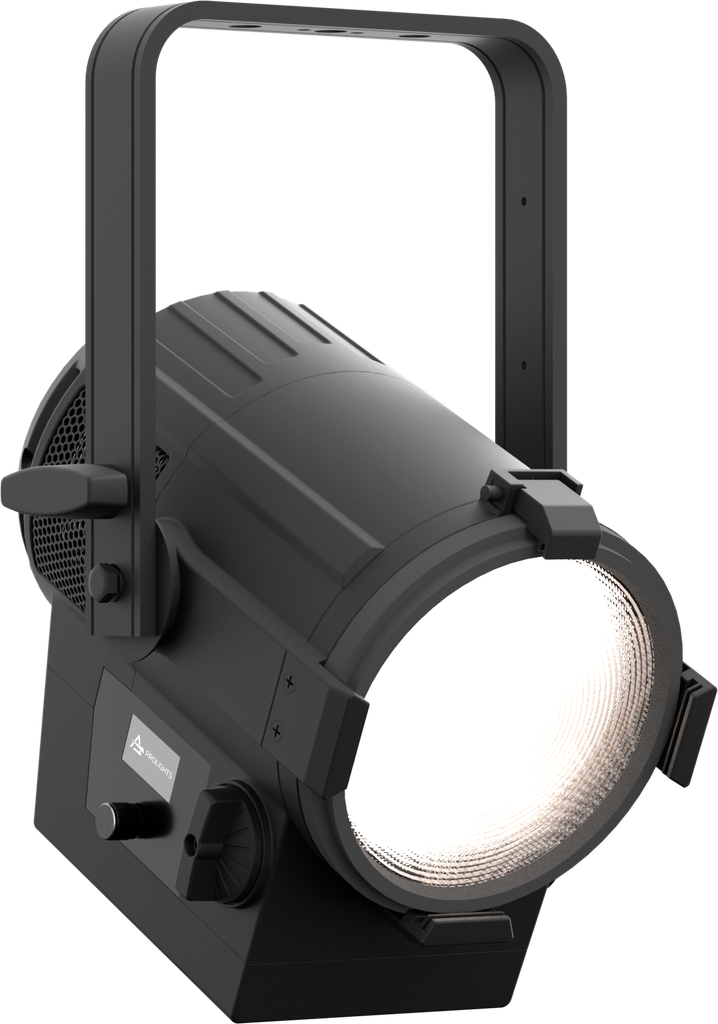

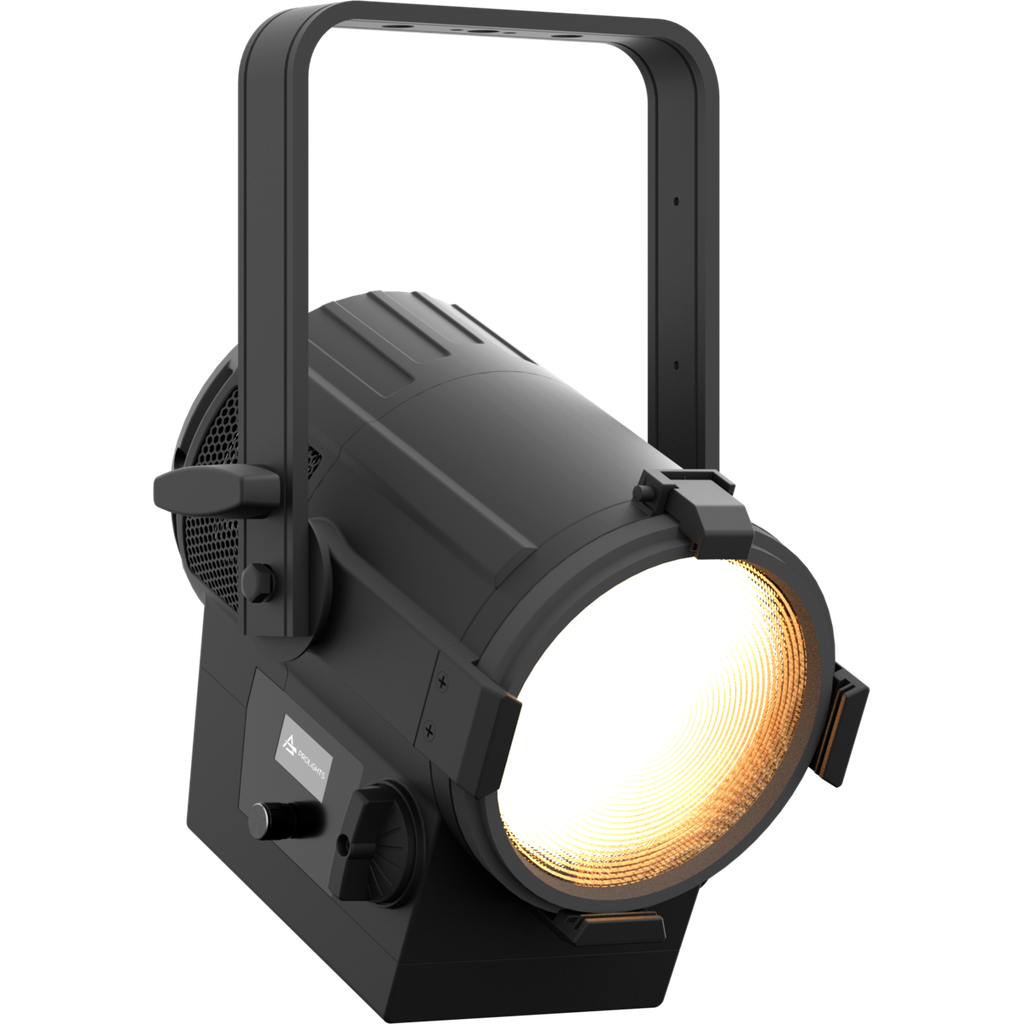

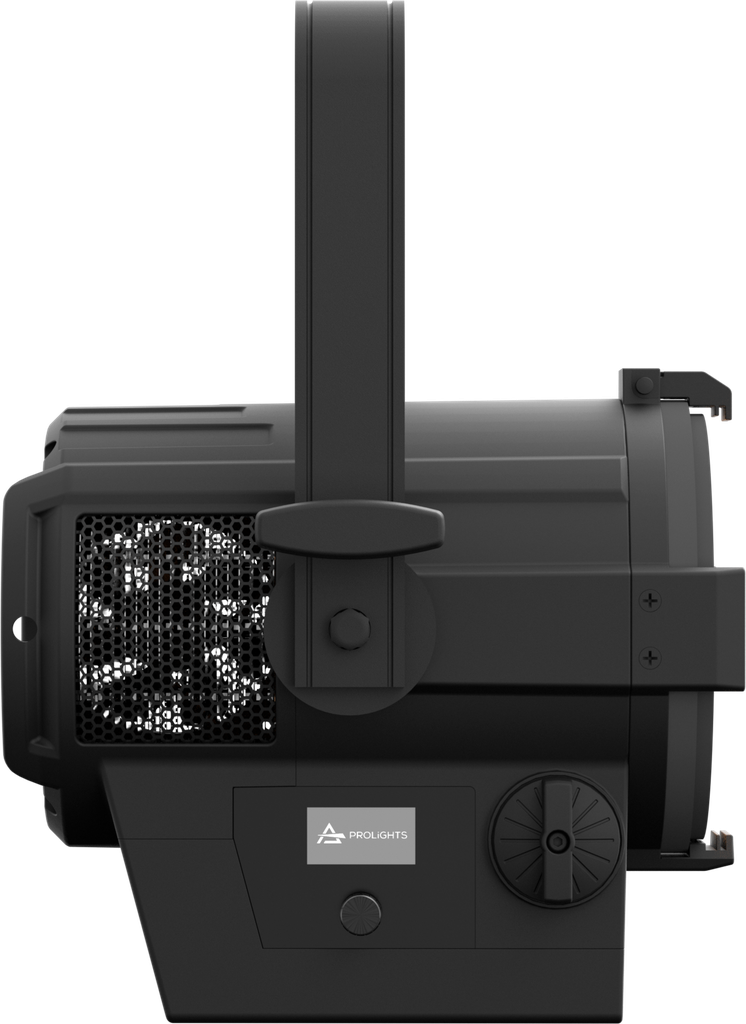

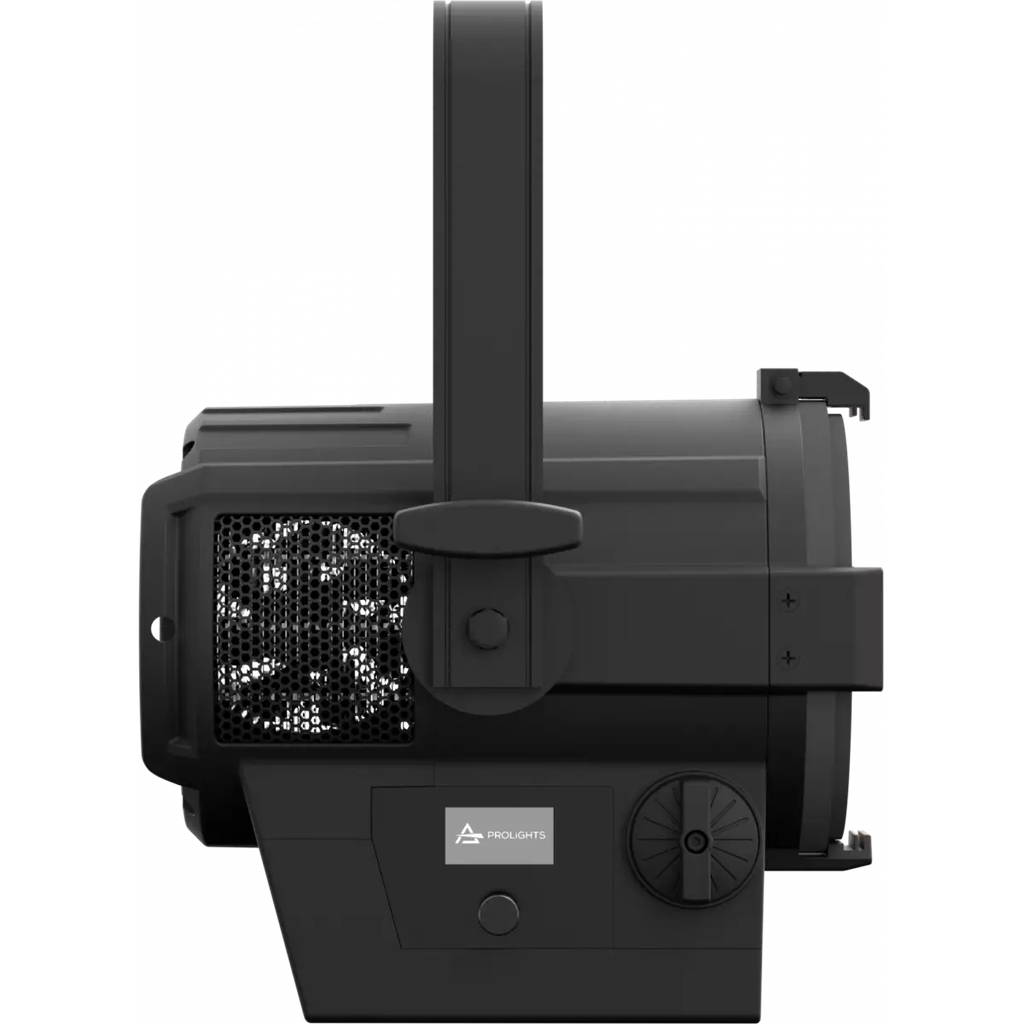

EclFresnel Jr is the LED replacement for a standard tungsten 650 W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel Jr adds all the advantages of LED to the Fresnel.
EclFresnel Jr is the LED replacement for a standard tungsten 650 W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel Jr adds all the advantages of LED to the Fresnel.
Features:TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
Fresnel lens options with 17° to 81° zoom range
Silent operation for studio and stage use
Battery ready, compatible with industry standard external batteries (optional)
LIGHT SOURCE
- Source:70Whigh-power white LED
- Source CCT:(TU) 3.000 K - (DY) 5.600K
- Luminous flux:(TU) (17°) 2'859 lm; (81°) 4'631@Full
- Luminous flux:(DY) (17°) 3'656 lm ; (81°) 5'911 lm @ full
- Lux:TU (17°) 1'293 lx - TU (81°) 205lx@5 m full
- Lux:DY (17°) 1'624 lx - (81°) 254lx@5 m full
- CRI:(TU) >97; (DY) >90
- R9:(TU) >95; (DY) >53
- TLCI:(TU) >97; (DY) >92
- TM30 Rf:(TU) >94; (DY) >88
- TM30 Rg:(TU) <103; (DY) >97
- Source life expectancy:> 50.000 h
OPTICS
- Zoom range:17° - 81°manual
- Lens diameter:150mm
- Lens type:fresnel zoom lens
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjust of dimmer throught menu and knob
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512, RDM, rotatory knob
- DMX channels:1 / 2 - 1 / 2 - 2 / 3 / 5ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Other:16bit control of dimmer and colour
MOVEMENT
- Pan:(pole operated version) 360°with manual regulation
- Tilt:(pole operated version) 340°with manual adjustment
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:0 ~ 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
- Battery:29,6V4400 mAh external battery (optional ECLFRSJBP4)
- Recharge connection:connection for external battery throughtXLR 4p
- Other:Voltage range: 22,4V-33,6V

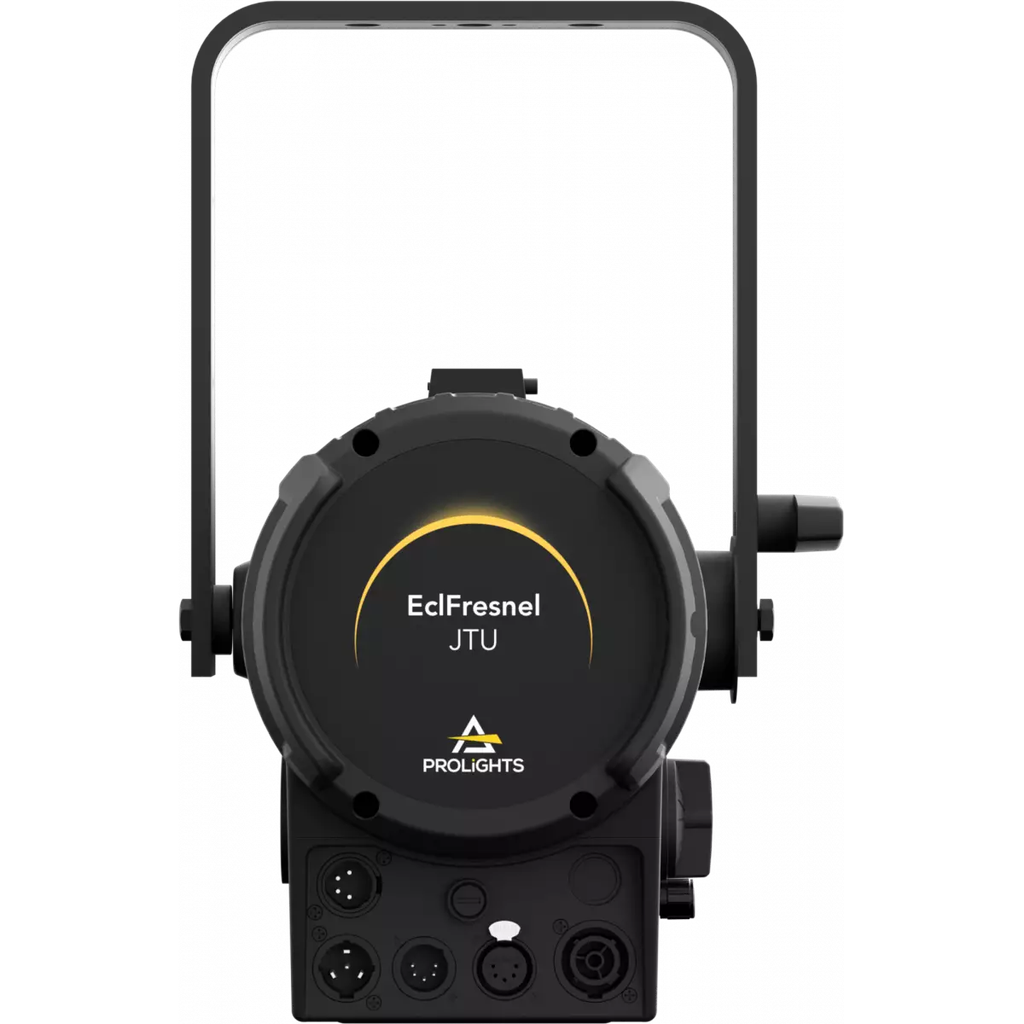

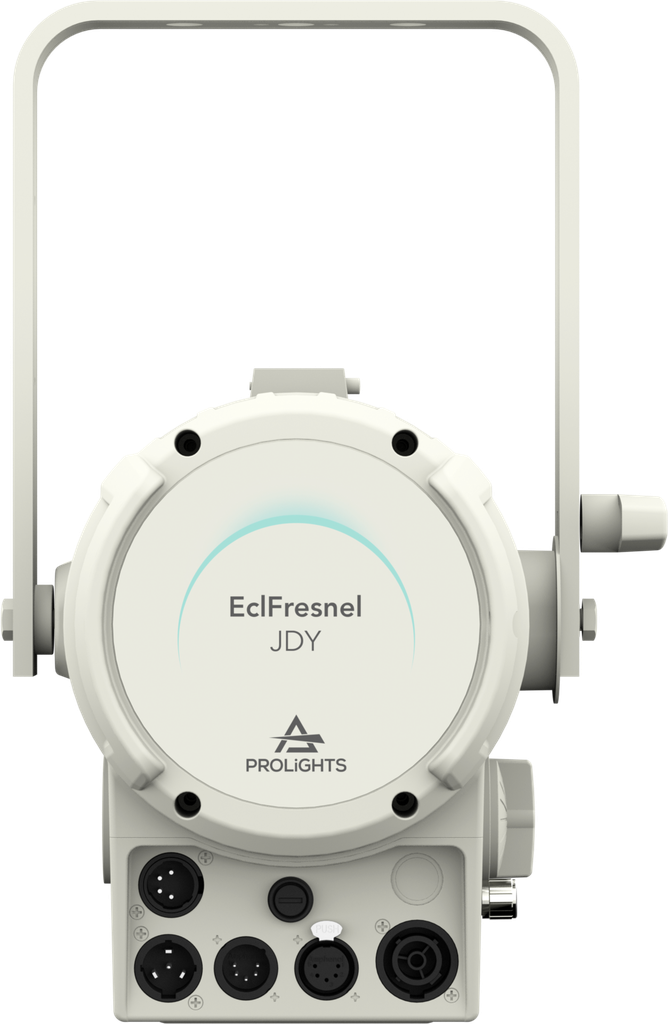

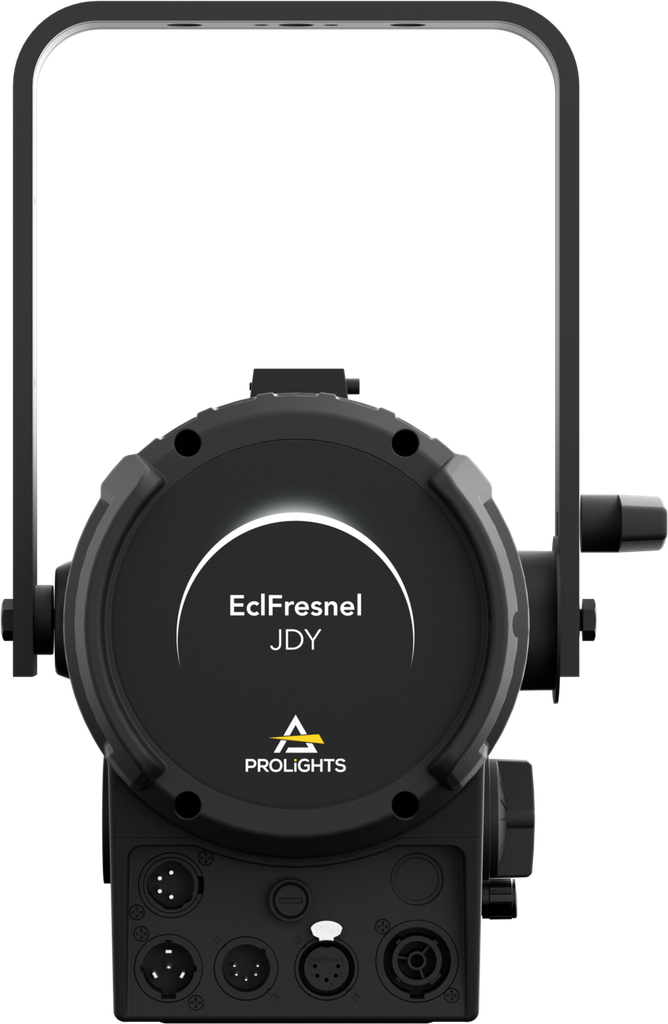

CONNECTIONS
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):90W
- Output (at 230V):22units on a single power line
- Power factor:>0,95
PHYSICAL
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body

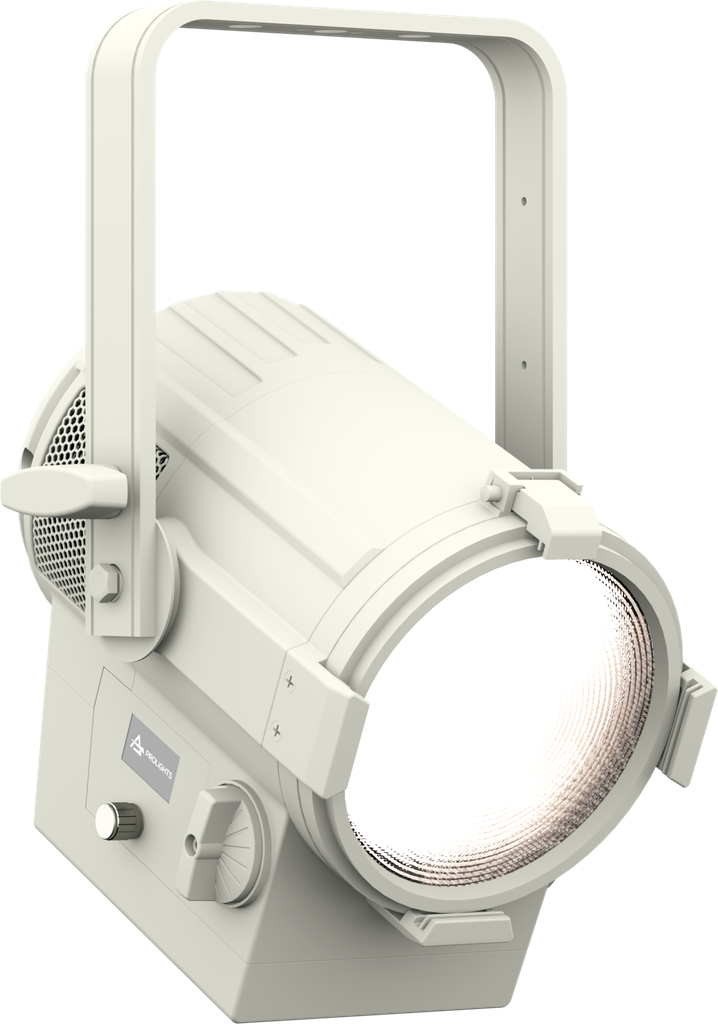

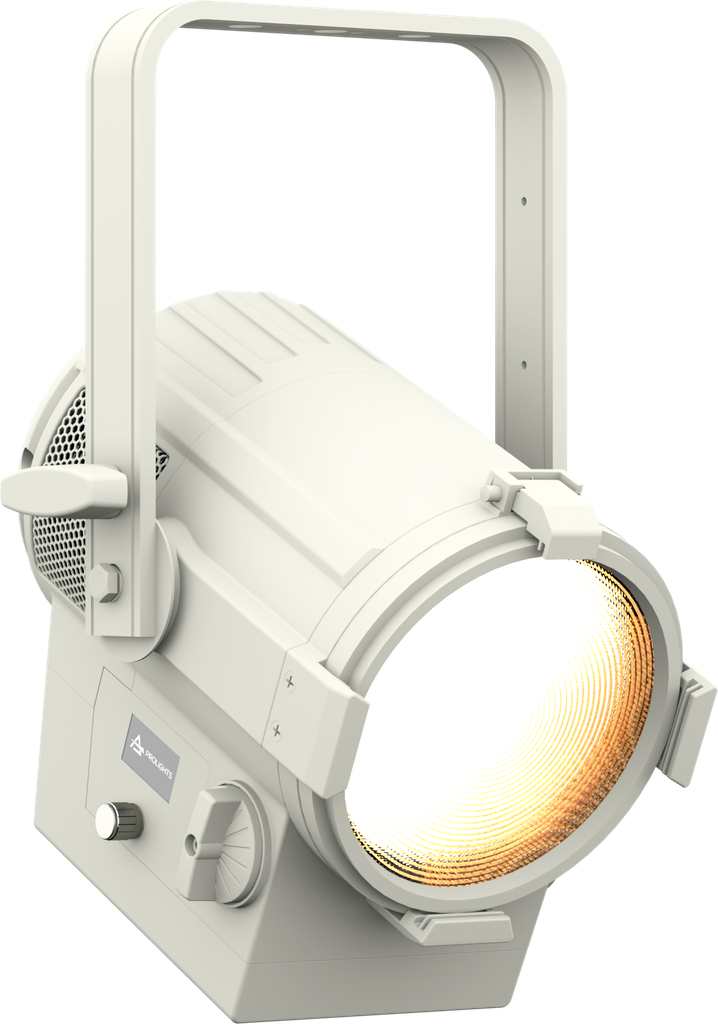

- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):235x360x260mm
- Dimensions with PO system (WxHxD):298x496x260mm
- Weight:6kg
- Weight with PO system:7,5kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:filter frame, 8 doors barndoor, spigot
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
