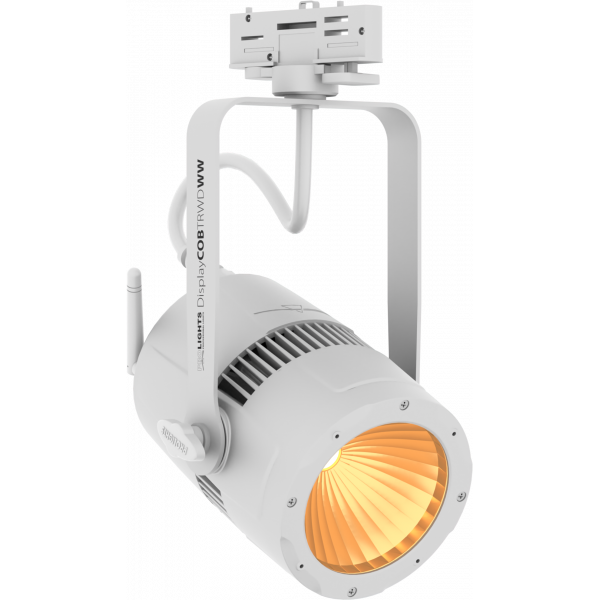

DisplayCob TRWDWW is a track mounted 45W Warm White LED COB spotlight, designed with electronic and user interface on board being able to be implemented with any existing lighting track easily. The on board Wireless DMX receiver allow users to control this luminaire without any cable, so it doesn't need a specific track with data wirings, or it can be hanged without its track adaptor, anywhere using the on board bracket and controlling via wired DMX protocol. DisplayCob TRWDWW optical systems is composed by a powerful COB LED source and a parabolic reflector, with swappable lenses allowing a beam angle from 15° up to 60° for a perfect focusing. DisplayCob features are an ideal solution to add dynamics and creativity in any installations such as commercials, hotels, restaurants and art galleries.
DisplayCob TRWDWW is a track mounted 45W Warm White LED COB spotlight, designed with electronic and user interface on board being able to be implemented with any existing lighting track easily. The on board Wireless DMX receiver allow users to control this luminaire without any cable, so it doesn't need a specific track with data wirings, or it can be hanged without its track adaptor, anywhere using the on board bracket and controlling via wired DMX protocol. DisplayCob TRWDWW optical systems is composed by a powerful COB LED source and a parabolic reflector, with swappable lenses allowing a beam angle from 15° up to 60° for a perfect focusing. DisplayCob features are an ideal solution to add dynamics and creativity in any installations such as commercials, hotels, restaurants and art galleries.
Features:45W Warm White LED COB spotlight with swappable optical group (15° ~ 60°)
Electronics on board and not on track for easy implementation
W-DMX and DMX512 control
- Source:45WWhite COB LED
- Source CCT:3.200K
- Luminous flux:2'309@Full
- Lux:(30°) 236lx@5 m full
- CRI:>96
- R9:>82
- TLCI:>97
- TM30 Rf:>94
- TM30 Rg:100
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:60°
- Field angle:80°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:30° (included) - 15° (optional)
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, W-DMX
- DMX channels:1 / 2 / 5ch
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 ~ 25Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
- Signal connection:XLR 5p IN/OUT connectors
- Wireless Connection:integrated W-DMX receiver
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):52W
- Power factor:>0,98
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:white (RAL 9003)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):167x290x163mm
- Weight:1,85kg
- Suspension and fixing:track-adapter included for suspension and fixing
- Compliance:CE, UKCA, RCM
