Product Description

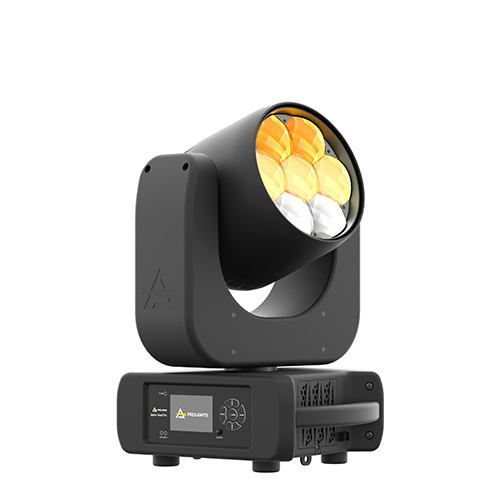

Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.
Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.
Features:Compact form factor and fast movements
Zoom from 4° to 56° with high optical efficiency
Pixel control, precise white CCT and multiple FXs and colour features
- Source:7x40WRGBW Osram Ostar LEDs
- Luminous flux:(4°) 2'013 lm - (56°) 3'543@Full
- Lux:(4°) 18'360 lx - (56°) 364lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Zoom range:4° - 56°motorised linear zoom
- Lens type:honeycomb gapless plano-convex optics
- Colour mixing:RGBW / FC
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Control Resolution:16-bit dimmer control
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
- Supported Protocols:DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
- DMX channels:main personality 24 / 27 / 39ch
- Pixel control:OFF, ring and pixel2pixel selectable options
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
- Pan:540°- 16-bit resolution
- Tilt:233°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 50000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Neutrik Art-NetRJ45 IN/OUT
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):225W
- Output (at 230V):12units on a single power line
- Standby power:36 W
- Power factor:> 0,93
- IP rating:IP20
- Cooling:filtered forced-air with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):279x391x205mm
- Weight:8,1kg
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
- Compliance:CE, UKCA, RCM, cTUVus, FCC
