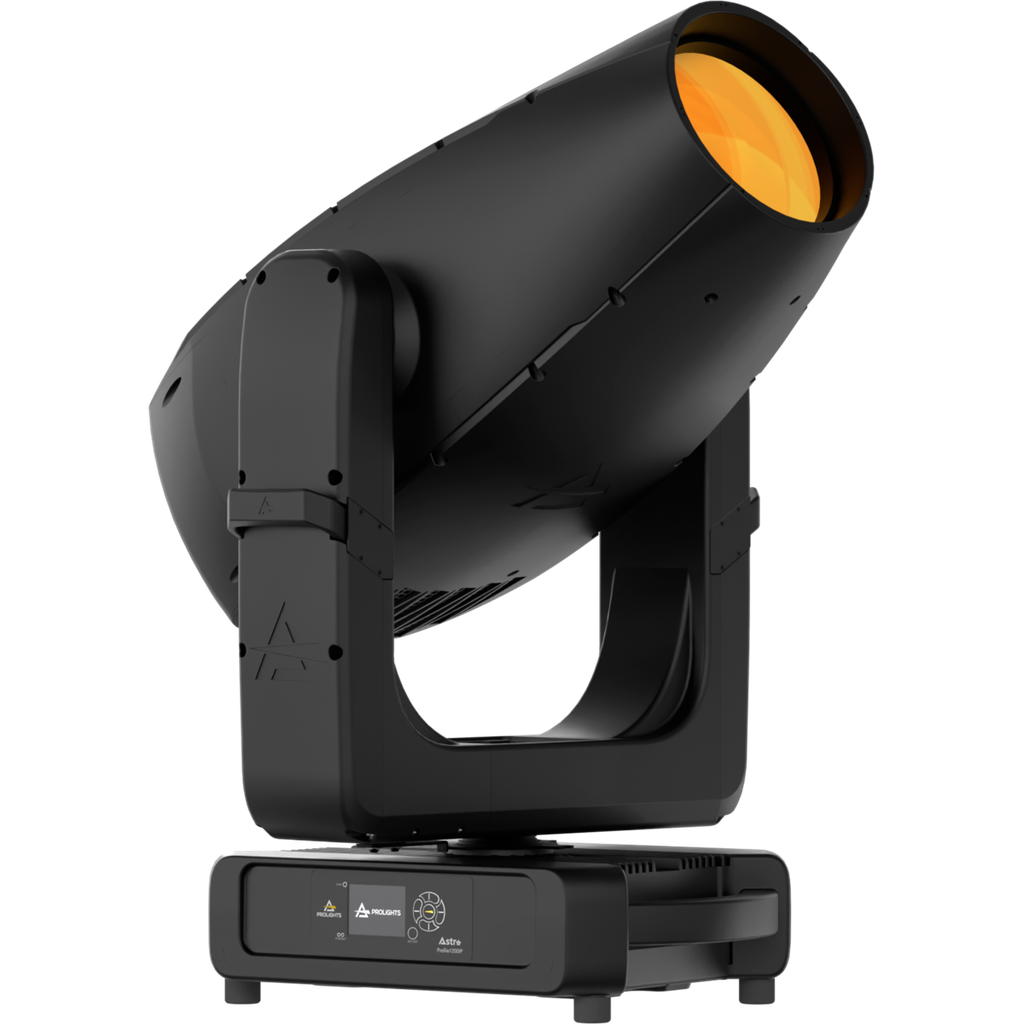

The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions.
This unit boasts a stunning 54.000 lumen (fixture output with goniometer), ensuring exceptional brightness.
The large 185mm front lens projects a full and consistent beam of light, adjustable from 5° to 50° via its motorized zoom system and precision internal optics being an ideal for use as key light.
The Astra Profile1200IP's comprehensive features include linear CMY+CTO color mixing and a dedicated color wheel, dual rotating gobo wheels and a 4-layer framing shutter system on individual planes and capable of producing a curtain effect. Additionally the effect section includes an animation wheel, dual frost filters, dual prism, and a motorized iris, enhancing its flexibility and creative potential.
For seamless integration and user convenience, the Astra Profile1200IP is equipped with CRMX wireless connectivity and supports multiple ethernet protocols, making it a versatile and user-friendly choice for various settings.
The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions.
This unit boasts a stunning 54.000 lumen (fixture output with goniometer), ensuring exceptional brightness.
The large 185mm front lens projects a full and consistent beam of light, adjustable from 5° to 50° via its motorized zoom system and precision internal optics being an ideal for use as key light.
The Astra Profile1200IP's comprehensive features include linear CMY+CTO color mixing and a dedicated color wheel, dual rotating gobo wheels and a 4-layer framing shutter system on individual planes and capable of producing a curtain effect. Additionally the effect section includes an animation wheel, dual frost filters, dual prism, and a motorized iris, enhancing its flexibility and creative potential.
For seamless integration and user convenience, the Astra Profile1200IP is equipped with CRMX wireless connectivity and supports multiple ethernet protocols, making it a versatile and user-friendly choice for various settings.
Features:1200W White LED source 7000K, 54.000 lumen output
185 mm front lens with a 5°-50° zoom
CMY+CTO Color mixing, one color wheel, 2 rotating gobo wheels, 4 framing shutters, 1 animation wheel, 2 frost, 2 prisms, iris
IP65 ratio
- Source:1'400WWhite LED (driven @1'200W)
- Source CCT:7.000K
- Luminous flux:(5,4°) 21'906 lm - (50,9°) 54'599 lm@Full
- Lux:(5,4°) 125'003 lx (50,9°) 4'008lx@5 m full
- CRI:> 70 (CRI > 90 with High CRI filter on color wheel)
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Zoom range:5,4° - 51°motorised linear zoom
- Lens diameter:185mm
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:motorised 16-bit
- Colour mixing:linear CMY
- CCT:linear CTO correction 2.700 K ~ 7.000 K
- Colour wheel:open + High CRI filter + 5colour filters
- Control Resolution:16-bit dimmer control
- Shutter system:4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
- Animation wheel:animation wheel with CW and CCW rotation
- FX generator:prisms overlap for spectacular aerial effects
- Circular prism:4-fwith bi-directional rotation, indexing
- Linear prism:6-fwith bi-directional rotation, indexing
- Frost:dual soft-edge and heavy with one interchangeable element
- Iris:5 - 100%motorised iris
- Rotating gobos:6rotating gobos + open, interchangeable, indexing
- Gobo size:preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
- Rotating gobos:6rotating gobos + open, interchangeable, indexing
- Gobo size:preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
- Supported Protocols:DMX512, RDM, ArtNet, sACN, CRMX
- DMX channels:45ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Pan:540°- 16-bit resolution
- Tilt:270°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 50000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
- Power connection:Seetronic powerCON TRUE IP65 IN
- Signal connection:IP65Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:IP65 Art-NetRJ45 IN/OUT
- EtherFlow:Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):1843W
- Output (at 230V):1units on a single power line
- Standby power:170 W
- Power factor:> 0,96
- IP rating:IP65 for temporary outdoor use (*)
- Cooling:heat pipe with low-noise fan
- Housing:Weatherproof IP65 construction
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):539x916x355mm
- Weight:55kg
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:ancor points on the front for accessory mounting
- Compliance:CE, RCM
- NOTE:Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
