Product Description

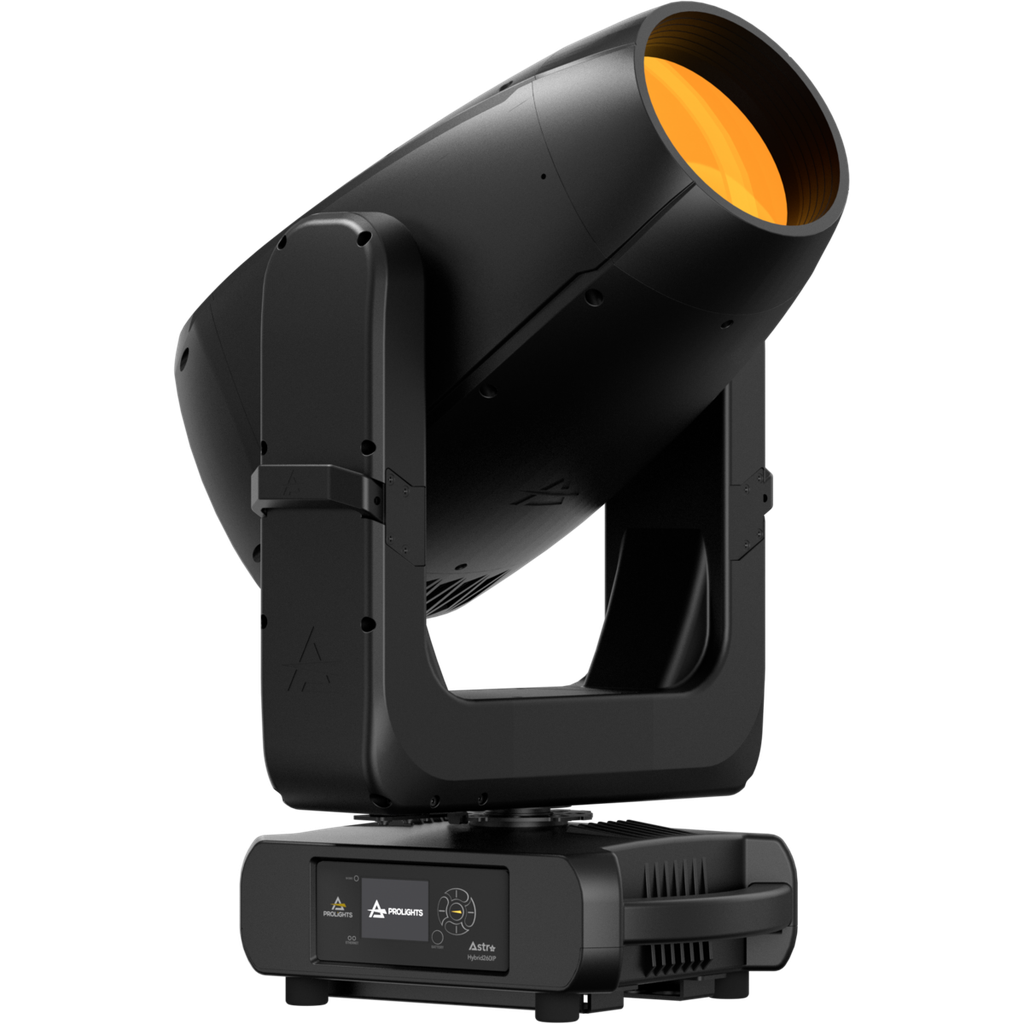

The Astra Hybrid260IP is an advanced hybrid moving luminaire equipped with a powerful 260W Phosphor Laser source, designed to excel in both indoor and outdoor environments thanks to its IP65-rated construction.
A groundbreaking 165 mm front lens channels its laser energy into a sharply focused 0.6° beam, achieving an extraordinary 420,000 lux at 20 meters - far exceeding the output of traditional discharge 480W hybrids. With a 100× zoom range spanning from 0.6° to 52°, this fixture delivers everything from tight aerial beams to expansive stage spot, offering unmatched versatility for any show or event.
Beyond its formidable beam and zoom capabilities, the Astra Hybrid260IP boasts infinite Pan and Tilt rotation for fluid, dynamic movement effects and a comprehensive color system that includes linear CMY and CTO mixing plus 27 color filters on dedicated wheels. Add 12 rotating gobos, 29 static gobos, 8 prisms on overlapping wheels, and two frost filters (soft and heavy) into the mix, and the creative possibilities become virtually endless - whether illuminating mid-air or crafting intricate projected textures.
Despite its powerful performance and extensive feature set, the fixture remains surprisingly lightweight at just 34 kg, thanks to its durable magnesium alloy housing, while pull-out handles integrated into the arm simplify handling and rigging. This rugged design thrives in the challenging conditions of large arenas, outdoor festivals, touring stages, and permanent installations alike, positioning the Astra Hybrid260IP as a true all-weather champion that professional rental houses and production teams can rely on for robust, high-impact lighting solutions.
The Astra Hybrid260IP is an advanced hybrid moving luminaire equipped with a powerful 260W Phosphor Laser source, designed to excel in both indoor and outdoor environments thanks to its IP65-rated construction.
A groundbreaking 165 mm front lens channels its laser energy into a sharply focused 0.6° beam, achieving an extraordinary 420,000 lux at 20 meters - far exceeding the output of traditional discharge 480W hybrids. With a 100× zoom range spanning from 0.6° to 52°, this fixture delivers everything from tight aerial beams to expansive stage spot, offering unmatched versatility for any show or event.
Beyond its formidable beam and zoom capabilities, the Astra Hybrid260IP boasts infinite Pan and Tilt rotation for fluid, dynamic movement effects and a comprehensive color system that includes linear CMY and CTO mixing plus 27 color filters on dedicated wheels. Add 12 rotating gobos, 29 static gobos, 8 prisms on overlapping wheels, and two frost filters (soft and heavy) into the mix, and the creative possibilities become virtually endless - whether illuminating mid-air or crafting intricate projected textures.
Despite its powerful performance and extensive feature set, the fixture remains surprisingly lightweight at just 34 kg, thanks to its durable magnesium alloy housing, while pull-out handles integrated into the arm simplify handling and rigging. This rugged design thrives in the challenging conditions of large arenas, outdoor festivals, touring stages, and permanent installations alike, positioning the Astra Hybrid260IP as a true all-weather champion that professional rental houses and production teams can rely on for robust, high-impact lighting solutions.
Features:IP65 hybrid moving light equipped with a 260W white phosphor Laser source
Linear zoom ranging from 0.6° to 52°
Pan&Tilt infinity rotation 360°, CMY and CTO, 27 color filters, 12 rotating and 29 fix gobos, 8 prisms, 2 frost
- Source:260WPhosphor Laser source
- Source CCT:7'000K
- Lux:417'219lx@20 m full
- Source life expectancy:> 12.000 h
- Zoom range:0,6° - 52,7°motorised linear zoom
- Lens diameter:165mm
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:motorised 16-bit
- Colour mixing:linear CMY
- CCT:linear CTO correction 2.700 K ~ 7.000 K
- Colour wheel:open + 27colour filters on two colour wheels
- Control Resolution:16-bit dimmer control
- FX generator:prisms overlap for spectacular aerial effects
- FX Wheel A:8-f & 6-f circular prism / 6-f & 4-f linear prism / light frost, bi-directional rotation, indexing, interchangeable
- FX Wheel B:16-f & 6-f circular prism / 6-f & 4-f linear prism / heavy frost, bi-directional rotation, indexing, interchangeable
- Frost:dual soft-edge and heavy with one interchangeable element
- Rotating gobos:12rotating gobos + open, interchangeable, indexing
- Gobo size:outer: 8,4 mm - image: 5 mm - thickness: 0,5 mm
- Fixed gobos:29fixed gobos + open
- Supported Protocols:DMX512, RDM, ArtNet, sACN, CRMX
- DMX channels:33 / 37ch
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
- Pan:540°- 16-bit resolution with 360° endless rotation
- Tilt:270°- 16-bit resolution with 360° endless rotation
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1-30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 50000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
- Power connection:Seetronic powerCON TRUE IP65 IN
- Signal connection:IP65Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:IP65Seetronic Ethernet IP in/out connectors
- EtherFlow:Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):430W
- Output (at 230V):6units on a single power line
- Standby power:90 W
- Power factor:> 0,96
- IP rating:IP65 for temporary outdoor use (*)
- Cooling:heat pipe with low-noise fan
- Housing:Weatherproof IP65 construction with die-cast magnesium alloy
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):435x742x266mm
- Weight:34,5kg
- Suspension and fixing:any position with quick-lock omega brackets
- Compliance:CE, RCM, FCC, cTUVus
- US FDA CDRH compliance:Certified and compliant with US FDA CDRH laser product requirements
- NOTE:Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
