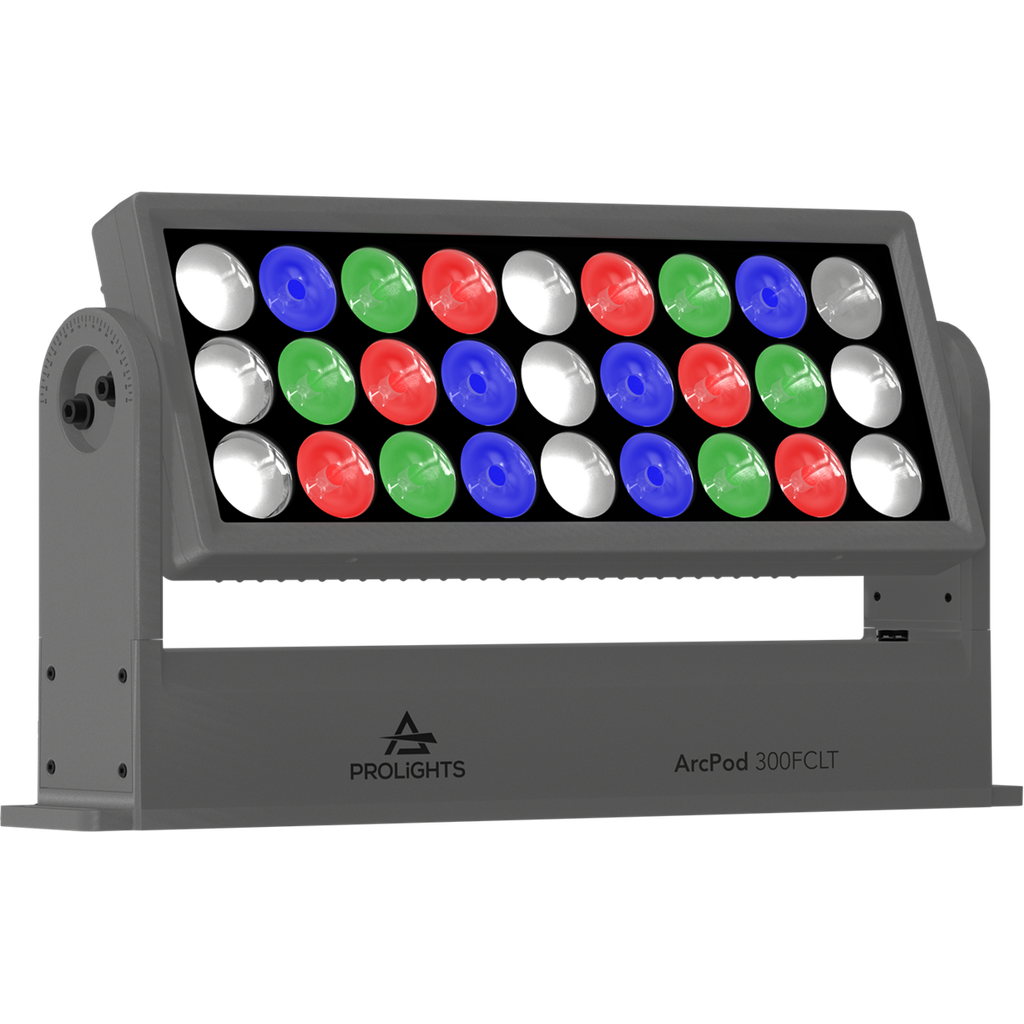

Introducing the ARCPOD 300FCLT, a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for large-scale exterior installations requiring long-distance projection, such as bridges, stadiums, and city towers.
The ARCPOD 300FCLT delivers 700 lux at 40 meters, providing directional and precise illumination to minimize light pollution. With an IP66 rating and C5M marine corrosion protection, it offers enhanced durability against liquids, sand, and salt.
Weighing just 12 kg, the ARCPOD 300FCLT is ideal for outdoor use, requiring minimal maintenance. Secure mounting and optical customization are ensured with a wide range of brackets and lens modifiers. Combining precision, durability, and advanced technology, the ARCPOD 300FCLT sets a new benchmark in architectural lighting.
Introducing the ARCPOD 300FCLT, a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for large-scale exterior installations requiring long-distance projection, such as bridges, stadiums, and city towers.
The ARCPOD 300FCLT delivers 700 lux at 40 meters, providing directional and precise illumination to minimize light pollution. With an IP66 rating and C5M marine corrosion protection, it offers enhanced durability against liquids, sand, and salt.
Weighing just 12 kg, the ARCPOD 300FCLT is ideal for outdoor use, requiring minimal maintenance. Secure mounting and optical customization are ensured with a wide range of brackets and lens modifiers. Combining precision, durability, and advanced technology, the ARCPOD 300FCLT sets a new benchmark in architectural lighting.
Features:Exterior narrow-beam Full Color wash light featuring 700 lux at 40mt
Native 2.5° beam angle lens for long-throw projection
IP66 with C5M for permanent exterior installation also in marine environment
Comprehensive selection of optics, holographic filters and light modifiers
- Source:(6 x red, 6 x green, 6 x blue, 9 x white) 27x10WRGBW LED
- Source CCT:W: 6300K
- Luminous flux:(with 3° filter on-board) 10'573 lm@Full
- Lux:(with 3° filter on-board) 676lx@40 m full
- Lux:(with 3° filter on-board) 43'251lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Optics:3° holographic filter fitted on board
- Beam angle:(with 3° filter on-board) 4° - (only native lens) 2,5°
- Field angle:(with 3° filter on-board) 7,5 - (only native lens) 5,3°
- Lens type:TIR lenses
- Additional optics:different holografic filters available as options to put behind the glass -see available accessories
- Colour mixing:RGBW
- White presets:2.800 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
- Static mode:selection of static colour
- Supported Protocols:DMX512, RDM
- DMX channels:5 / 7 / 10ch
- RDM:for remote addressing and parameter configuration
- Display:user interface through DATAMASTER external coder (not included)
- Master/Slave:for synchronised operation of more units linked in a chain
- Tilt:0 - 130°with manual adjustment
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 ~ 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:1,8 mmoulded IP power IN/OUT connectors
- Signal connection:1,8 mmoulded IP signal IN connector
- Adaptors:XLR and BARE END 16A adaptors included
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):260W
- Output (at 230V):10units on a single power line
- Output (at 120V):5units on a single power line
- Standby power:3,5 W
- Power factor:> 0,95
- IP rating:IP66 for outdoor installations
- IK rating:IK08 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
- Finish:basalt grey (RAL 7012)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):584x304x114mm
- Weight:12,2kg
- Compliance:CE, RCM
