Product Description

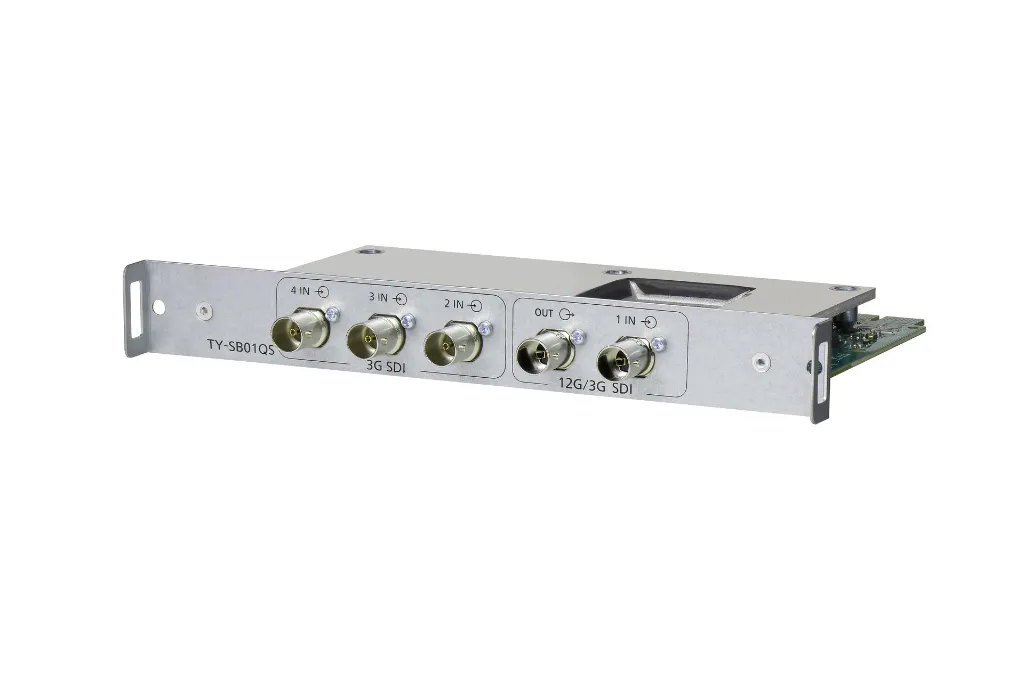

The Panasonic TY-SB01QS is a high-performance 12G-SDI terminal board designed to expand the connectivity of your professional displays and projectors. Built on the Intel® Smart Display Module (Intel® SDM) standard, this "Large" (SDM-L) type board slides directly into your device's internal slot. It eliminates the need for external converters and messy cabling, providing a clean, professional-grade SDI interface for broadcast, live events, and high-end corporate environments.
Key Features
High-Bandwidth 12G-SDI: Supports the transmission of uncompressed 4K video signals at up to 60p over a single coaxial cable, significantly simplifying high-resolution workflows.
Quad-Link 3G-SDI Support: In addition to 12G, it can handle quad-link 3G-SDI inputs, offering maximum compatibility with legacy broadcast equipment and specialized video sources.

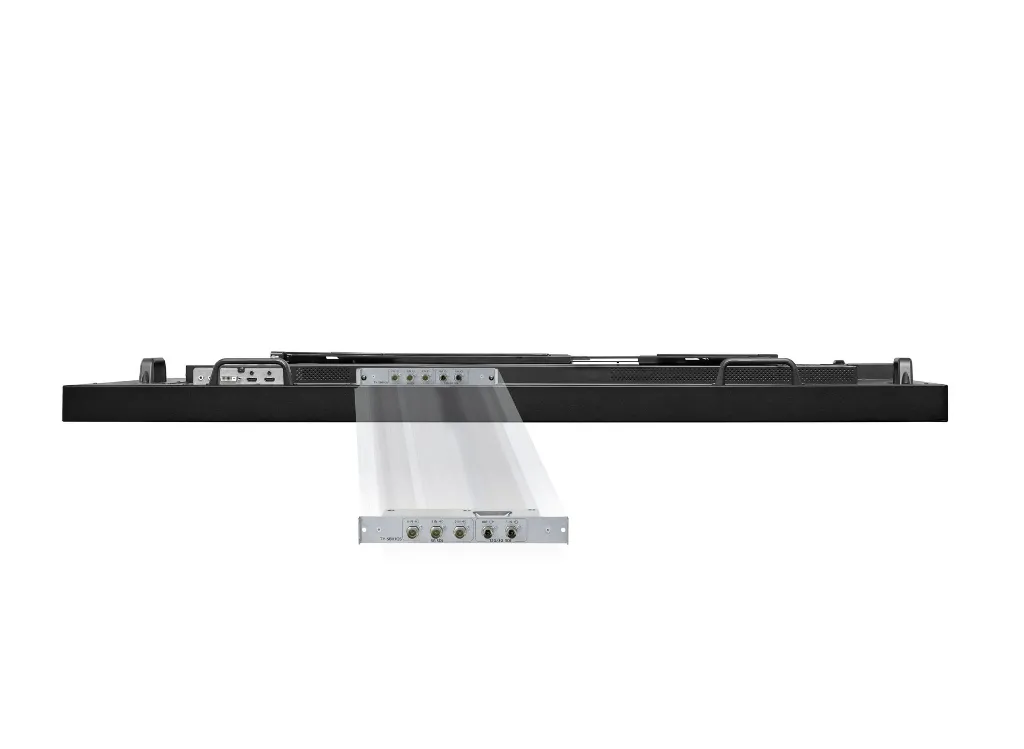

Clean, Cable-Free Integration: Because the board draws power and data directly from the display's internal Intel® SDM slot, you don't need extra power bricks or external signage players.
Daisy-Chain Capability: Features a 12G-SDI loop-through output, allowing you to easily distribute the same high-quality signal to multiple displays or recording devices in a chain.
Professional Audio Handling: Supports up to 16 channels of synchronized digital audio embedded in the SDI stream, ensuring high-fidelity sound for broadcast applications.
Technical Specifications
| Feature | Specification |
| Slot Standard | Intel® Smart Display Module Large (Intel® SDM-L) |

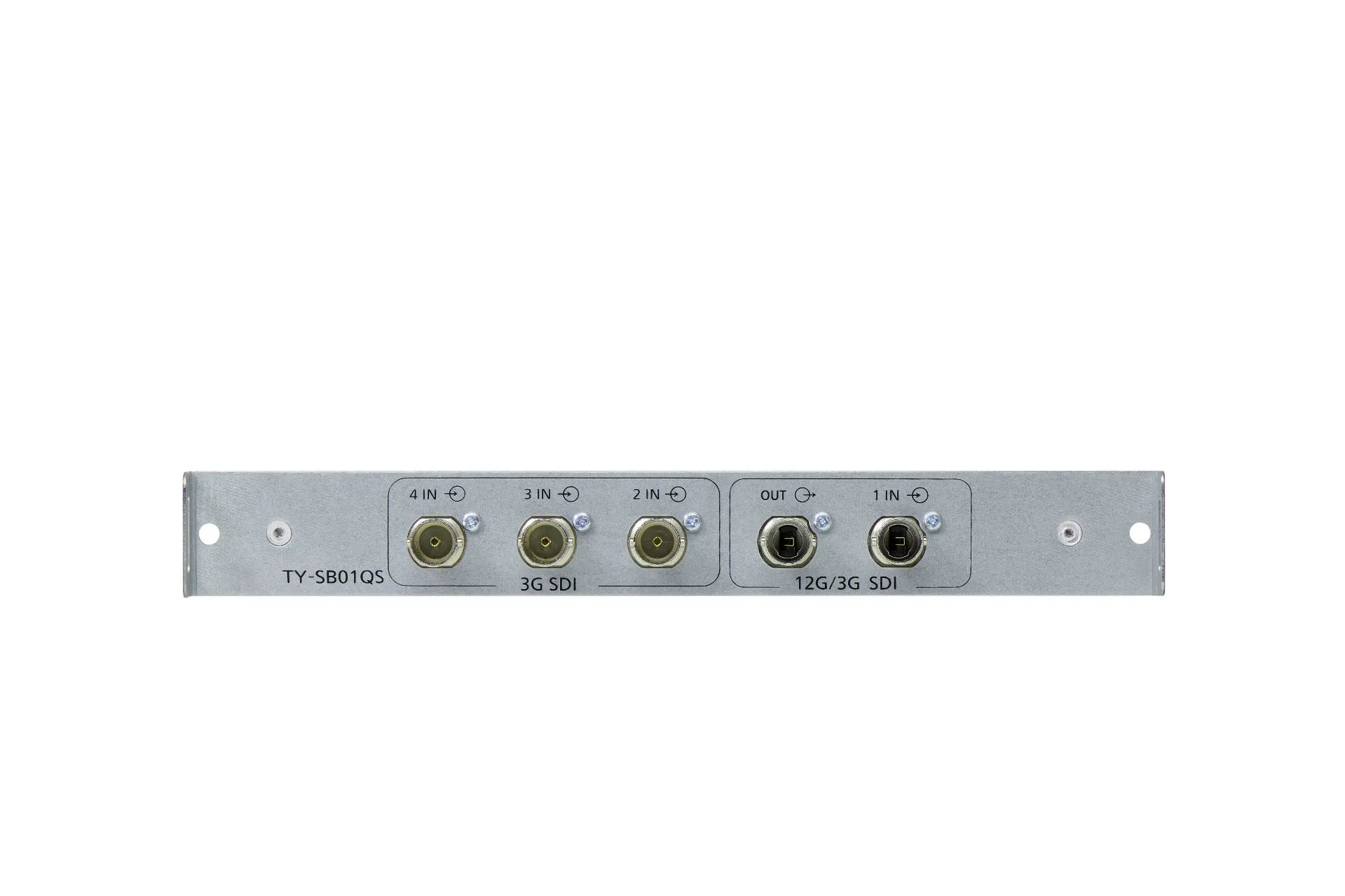

| Input Terminals | 1x 12G/3G-SDI (BNC), 3x 3G-SDI (BNC) |
| Output Terminals | 1x 12G/3G-SDI Active Through (BNC) |
| Max Resolution | 4K UHD (3840 x 2160) up to 60p / DCI 4K (4096 x 2160) |
| Video Standards | SMPTE ST 2082-1, 2082-10, 424, 425, 292 |
| Audio Support | 48 kHz, 20/24-bit (16-ch Synchronized) |
| Max Distance | 100m (Input) / 50m (Output) for 12G mode |
| Weight | Approx. 300 g (10.6 oz) |
